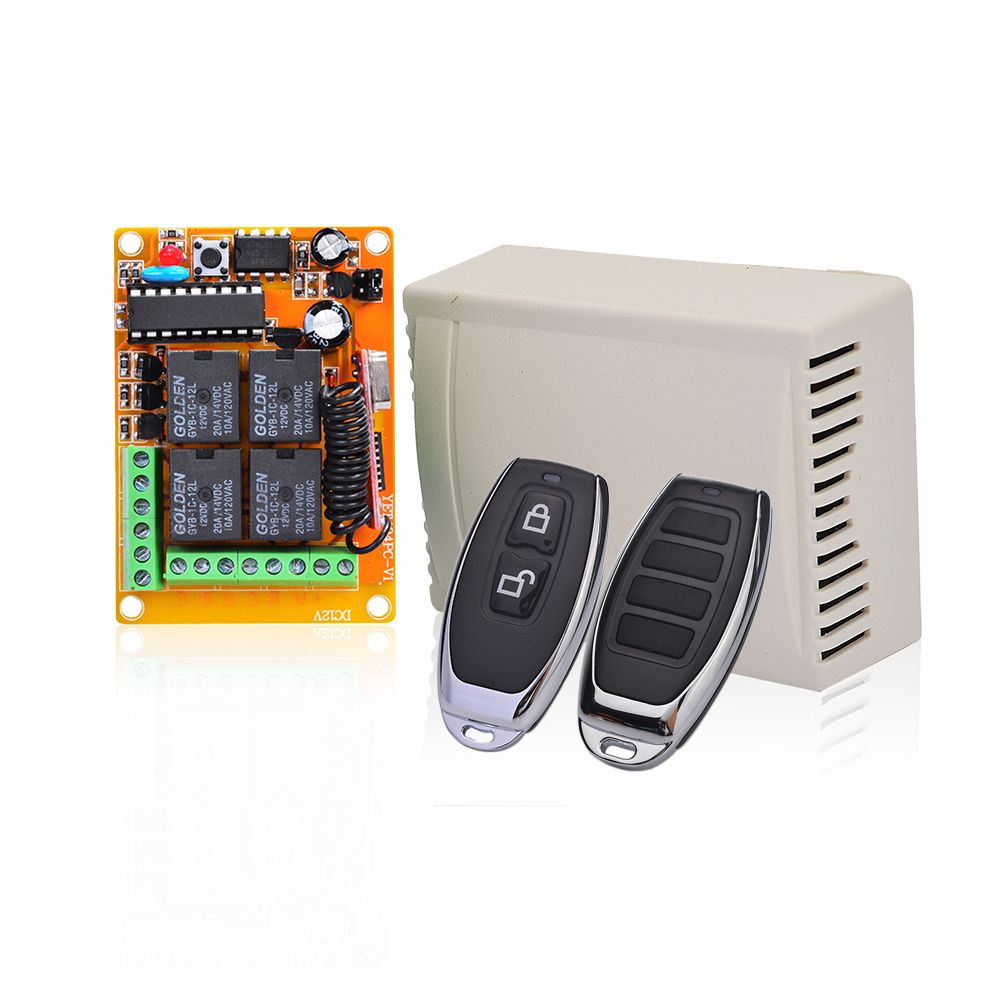

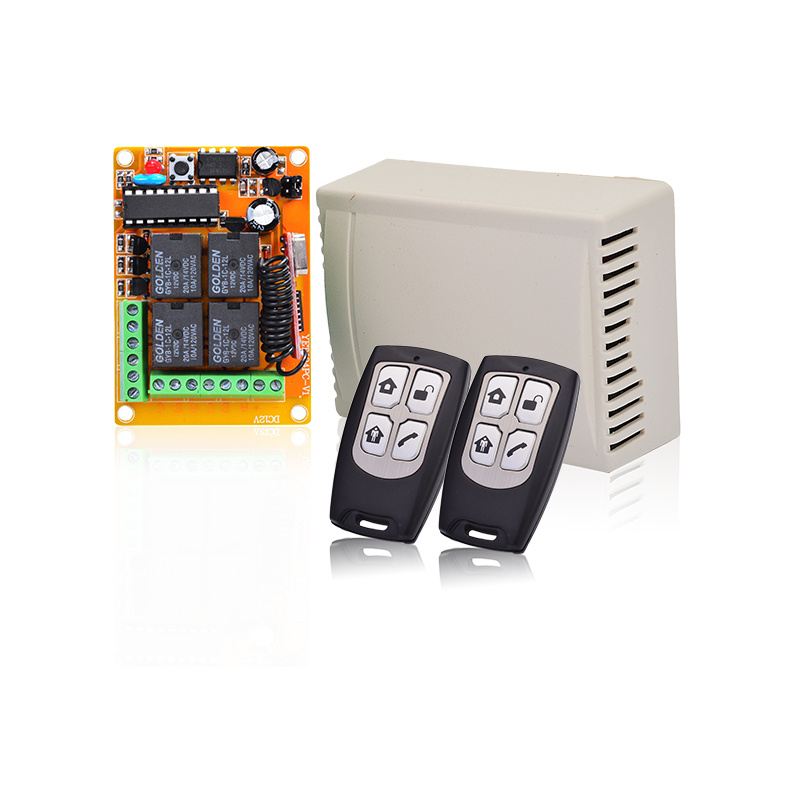

4 Channel RF Transmitter and Receiver Set Motor Yet404PC+Yet005

Product Description

4 Channel RF Transmitter and Receiver Set Motor YET404PC+YET005

Use range:

Our remote control widely used in garage door ,rolling door ,electronic gate,led light,window  industral control ,home appliance,car alarm system, home/store anit-theft alarm,other industrial control and so on.

1. Brief introduction
Our factory design and produce the four channel wireless intellect receiving control what can provide switch signal to the four relays, so it can meet many requirements such as: control motor's corotation and reversal; the connection and lock of the switch and other special control programs. This kind of wireless intellect receiving control main apply to auto door, curtain, lifting appliance, gate way, lifter, industrial control and security field.
This kind of wireless receiving control is high confidentiality, large memory space, stable characteristics, low power consume and very convenience, it is unnecessary adopt the traditional wire jumper or dip switch code but only receive and store the wireless signal from the remote control, and The lost learnt control can not work if you delete the memory message of the receiving control, however, it should learning again by the owner if want to obtain the right of use.
2. The way of output
A. Self-lock control -- "1" connect
B. Interlock control -- "2" connect
C. Inching lock control -- disconnect
D. Two channel Self-lock and another two channel Inching lock --"1" and "2" both connect
(check the Circuit diagram for details)
3. Learning way and steps
 Learning fixed code & learning code:
1. Press learning key of receiver-the pilot lamp light-release learning key and pilot lamp extinguish , indicate enter into the status of learning.
2. Press any button of the remote control, indicate learning success as the pilot lamp flash 5 times and automatically exit learning state. Receiver automatically exit learning state if you do nothing in 32 seconds. (Can store up to 30pcs this type remote control)

Learning rolling code:

1. Press learning key of receiver-the pilot lamp light-release learning key and pilot lamp extinguish , indicate enter into the status of learning first time.
2. Press any button of the remote control, indicate first time learning success as the pilot lamp keep flashing slowly.
3. Repeat the operation of step "1", enter into the status of learning second time.
4. Press the same button in step "2", the pilot lamp flash 5 times, learning successful. (Can store up to 6pcs this type remote control)

4. Delete memory message
Press the learning key of the receiver-pilot lamp light-hold on pressing over 8 seconds until the pilot lamp extinguish, which indict success to delete the memory message.
