| Prod Model: |
SH-KZQ004 |
| Item No.: |
Sh-Kzq005 |
| Assort: |
Receiver &Remote Control Each 1 PC. |
| Coding Mode: |
Rolling Code |
| Frequency: |
315 & 433MHz(Optional) |
| Operating Range: |
50-300m I Unobstracted Area |
| Working Voltage: |
12V DC |
| Delivery Date: |
1-25 Days |
| Payment: |
by Tt(30% Deposit, 70% Before Shipping) |
| Export Markets: |
Global |
| Static Current: |
<= 6mA |
| Application: |
Audio / Video Players |
| Type: |
Button |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Voltage: |
12V |
| Material: |
Rubber |
| Battery Type: |
Button Battery |
| Signal Transmission: |
Infrared &Wireless |
Product Description

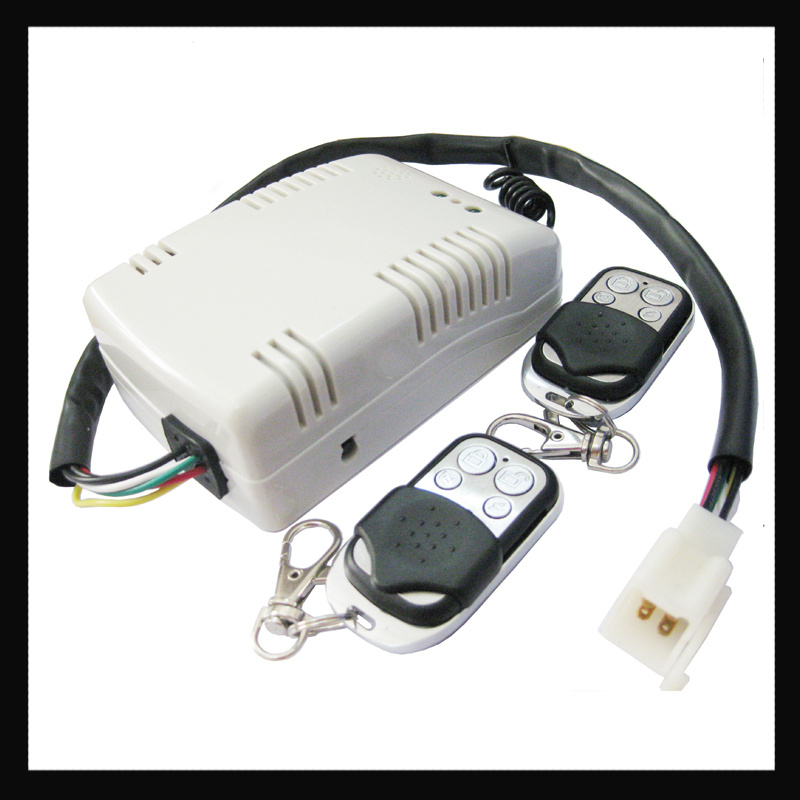

4 Channel Rolling Code Remote Controller for Garage Door
Basic Info.
Model NO.:SH-KZQ004
Type:Button
Signal Transmission:RF Remote Control
Application:Automatic Doors
Size:110mm*71mm*40mm
Coding Mode:Rolling Code
Frequency:315 & 433MHz(Optional)
Operating Range:50-300m I Unobstracted Area
Working Voltage:12V DC
Delivery Date:1-25 Days
Payment:by Tt(30% Deposit, 70% Before Shipping)
Export Markets:Global
Additional Info.
Trademark:Samhals
Packing:200 Set/CTN, Poly Bag, Blister, Paper Box...
Origin:Quanzhou, Fujian, China(Mainland)
Production Capacity:100 000 0 PCS/Month
Product Description
Place of Origin: Fujian China(Mainland)
Brand Name: Samhals
Model Number: SH-KZQ004
Frequency: 315MHz&433MHz(Opition)
Ecode: Rolling Code
Working Voltage: 12V
Static Current: ≤ 6mA
Working temperature: (-40+80)degree celsius
Receiving Sensitivity: ≥ 105dBm
Output current: ≤ 10A
Receiving sensitivity: ≥ 120-130M
Output Voltage: 24VDC/AC (optional)
5. Can store 30pcs remote control.
Application: Home Alarm, Rolling Door, Barrier Gate, Garage door and other electronics
Instruction:
* Delete the code:
1. Press on the learning button for more than 10S, red light will bright 10S.
2. After the buzzer will sound 5 times and red light recover to original slow flash which mean all the code have been deleted successfully.
Learning code:
Press the learning button 2s, the buzzer will sound 2times
Then you press on any button of the remote, buzzer will sound 1time, which mean the remote have been learn into the receiver successful, you can learn into 30pcs remote control at the same time.
3. And after 5-7S, the buzzer will long sound for 2S, please pay more attention on the red light will recover to original slow flash which mean have been exit the mode for learning code. (After the receiver exit the learning mode, then you can use the remote control normally! )
Note:
1. This set controller host we adopt rolling code technology can learn more than 30 pcs remote control only one button learning is ok!
2. If you lose the remote control you can delete the rolling code from the host then learning again another remote control, ensure that lose remote control cannot to use again.
3. If you want to learn more remote control, learning direct is ok, no need delete now available.
| Item No.: | SH-KZQ004 |
| Brand: | Samhals |
| Size: | 110mm*71mm*40mm |
| Coding Model: | Rolling Code |
| Components: | PCB + Battery + Metal case + silica gel pad + Screw + Keychain |
| Frequency: | Fixed Frequency: 315MHZ or 433MHZ |
| Voltage: | 12V |
| Static Current | < 6mA |
| Origin: | Quanzhou City , Fujian Province , China. |
| Delivery time: | 1-25Days |
| LED Light: | Green//Bule/White/Yellow/Red and etc. By Customized |
| OEM/ODM Projects: | Yes. |
| Logo: | Accept Customized |
