| Prod Model: |
JH-RX02-TX09 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Brand: |
Juhui or Customized |
| Working Voltage: |
AC/DC 12V-24V |
| Working Current: |
18mA |
| Sensitivity: |
-107dBm |
| Contact Power: |
7A 24VAC/10A 24VDC |
| MOQ: |
300PCS |
| Lead Time: |
15-20 Days |
| Supply Ability: |
100.000PCS |
| Momery: |
100 Codes |
| Mode: |
Bistable and Monostable Is Optional |
| Application: |
Automatic Doors |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |

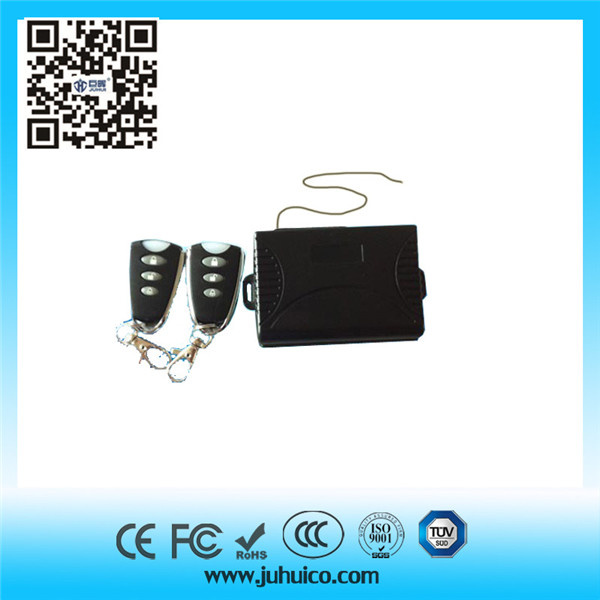

Product Description
A. Feature
1. You can choose bistable (continuous ouput) or monostable( momentary output) directly when learning code with remote control.
2. The receiver is use-friendly. We can produce them with different code remote control as your request the receiver is widely used as motorcycle alarm receiver, electric vehicle alarm receiver, sliding gate receiver, auto gate receiver, sliding door receiver, rolling door receiver, ceiling fan receiver l etc
B. Function
LED
Green LED for power indication
Red LED for learning code indication
Learning code
S1 for learning button of Monostable
S2 for learning button of Bistable
Learning code with Monostable:
First relay: Press S1 1 time, red LED light (about 1second) to flash 1 time to light ( receive the signal from remote control).
Second relay: Press S1 1 time, red LED light (about 1second) to flash 2 times to light ( receive the signal from remote control).
Third relay: Press S1 1 time, red LED light (about 1second) to flash 3 times to light ( receive the signal from remote control).
Forth relay: Press S1 1 time, red LED light (about 1second) to flash 4 times to light ( receive the signal from remote control). Now keep the remote control and receiver close, press any button of the remote control, the red LED will off and relay close if have learnt the code from remote control successfully, if remote control not receive the signal in 5s, the red LED is off automatically which exit learning code mode
Learning code with Bistable:
First relay: Press S2 1 time, red LED light (about 1second) to flash 1 time to light ( receive the signal from remote control).
Second relay: Press S2 1 time, red LED light (about 1second) to flash 2 times to light ( receive the signal from remote control).
Third relay: Press S2 1 time, red LED light (about 1second) to flash 3 times to light ( receive the signal from remote control).
Forth relay: Press S2 1 time, red LED light (about 1second) to flash 4 times to light ( receive the signal from remote control). Now keep the remote control and receiver close, press any button of the remote control, the red LED will off and relay close if have learnt the code from remote control successfully, if remote control not receive the signal in 5s, the red LED is off automatically which exit learning code mode
(3): Remove code: Long press S1 or S2 for 5s, when the red LED flash then turn off, which means remove the code successfully
Note: If remove the code careless, the unit system can't resume it.
Shipment:
by air, by sea, DHL, TNT etc.
Guarantee:
The quality problem from us, and we will bear the responsibility. we will make new order or solve the problem by negotiation.
Model No. | JH-RX02-A |
| Decode | Learning code or rolling code |
| Frequency | 315MHZ, 433.92MHZ or customized |
| Modulation type | ASK |
| Distance | 80m work with our remote control |
| Tech. parameter | Terminal Blocks, relays |
| Sensitivity | -107dbm |
| Momery | 100 codes |
| channel | 1.2.3.4channels |
| Working voltage | AC12-24V//DC12-24V |
| Working current | 18mA±2mA |
| Output | Dry connect output |
| Working mode | Bistable and monostable working mode is optional |
| Learning way | Every channel learning code with remote control individually |
| Brand | JUHUI |
| Package | 50pcs/CTN |
| Lead time | 1-5 days for samples, 20-30 days for order |
| Place of origin | China |
| MOQ: | 300pcs |
| Supply ability | 100.000pcs/Month |
| Application | 1.motorcycle alarm remote controller
2.electric vehicle alarm remote controller
3.sliding gate remote control, auto gate remote controller, sliding door remote controller, rolling door remote controller
4.ceiling fan remote controller
5. access system
6.wherever remote controller needed |
