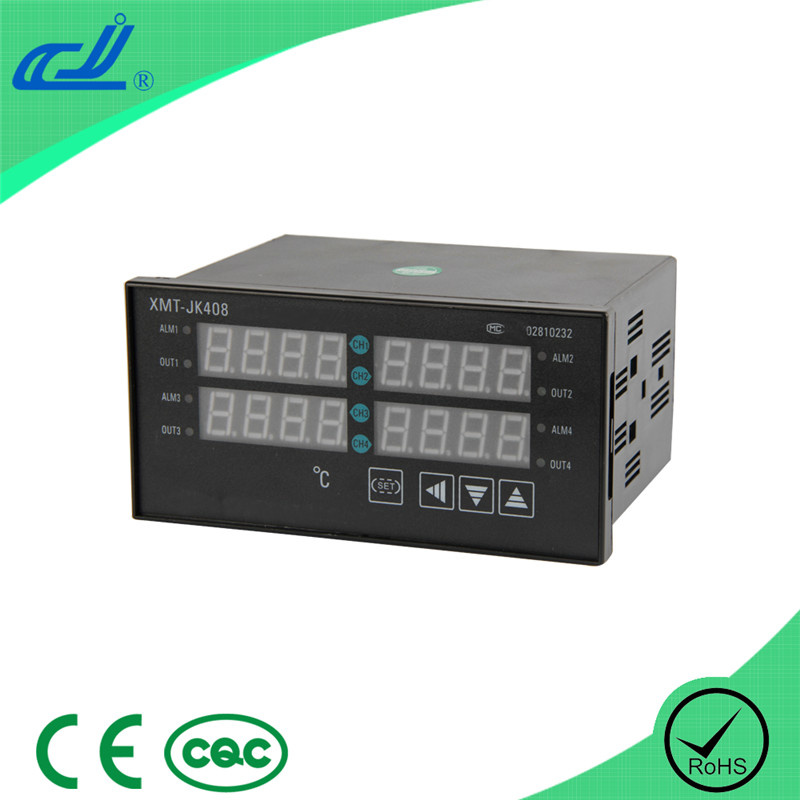

4 Channlel Intelligent Pid Temperature Controller with SSR Output (XMT-JK418G)

Name: 4 Channlel Intelligent Pid Temperature Controller with SSR Output (XMT-JK418G)
Brand: all-electronics-online.com
SKU: 715063342
Availability: InStock
Rating: 4.3 (25 reviews)

Price:	US $ 67/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XMT-JK418G
Size:	160*80
Control Type:	Digital
Type:	Temperature Controller
Control Method:	Electronic Type
Usage:	Temperature Control

Product Description

I.Summary
XMT*JK four-way temperature controller can connect four sensors synchronously and conveniently, diminish the instrument's volume. It has a separate auto-tune mode and PID parameter function with more precision and more reliability in whole machine control.

II.Primary technical standard
1, Input signal: CU50(-50.0~150.0C), Pt100(-19.9~600.0C), K(0~1300C),
E(0~700.0C), J(0~900.0C)
2, Accuracy: ± 0.5%F. S± 1byte
3, Output method: Relay AC220V 3A(resistance load)
4, control mode: Difference control-on/off and PID control
5, Input power: AC85~242V 50/60Hz
6, Environment Temperature: 0 to 50C, Humidity: ≤ 85%RH
7, Face Size: 160× 80× 110 mm Hole Size: 152× 76 mm
96× 96× 110 mm Hole Size: 92× 92 mm
72× 72× 110 mm Hole Size: 68× 68 mm

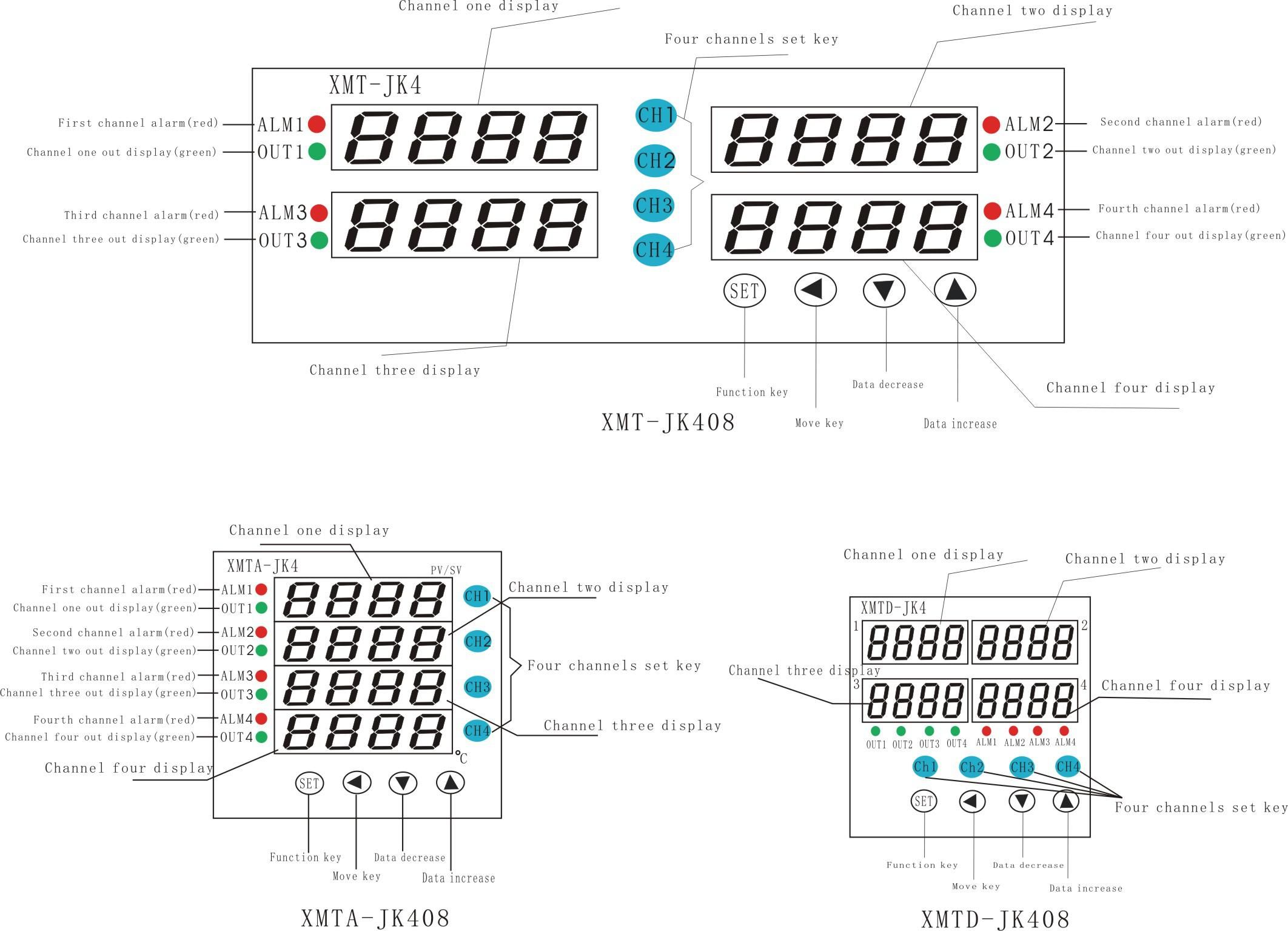

Panel board instruction(consult)

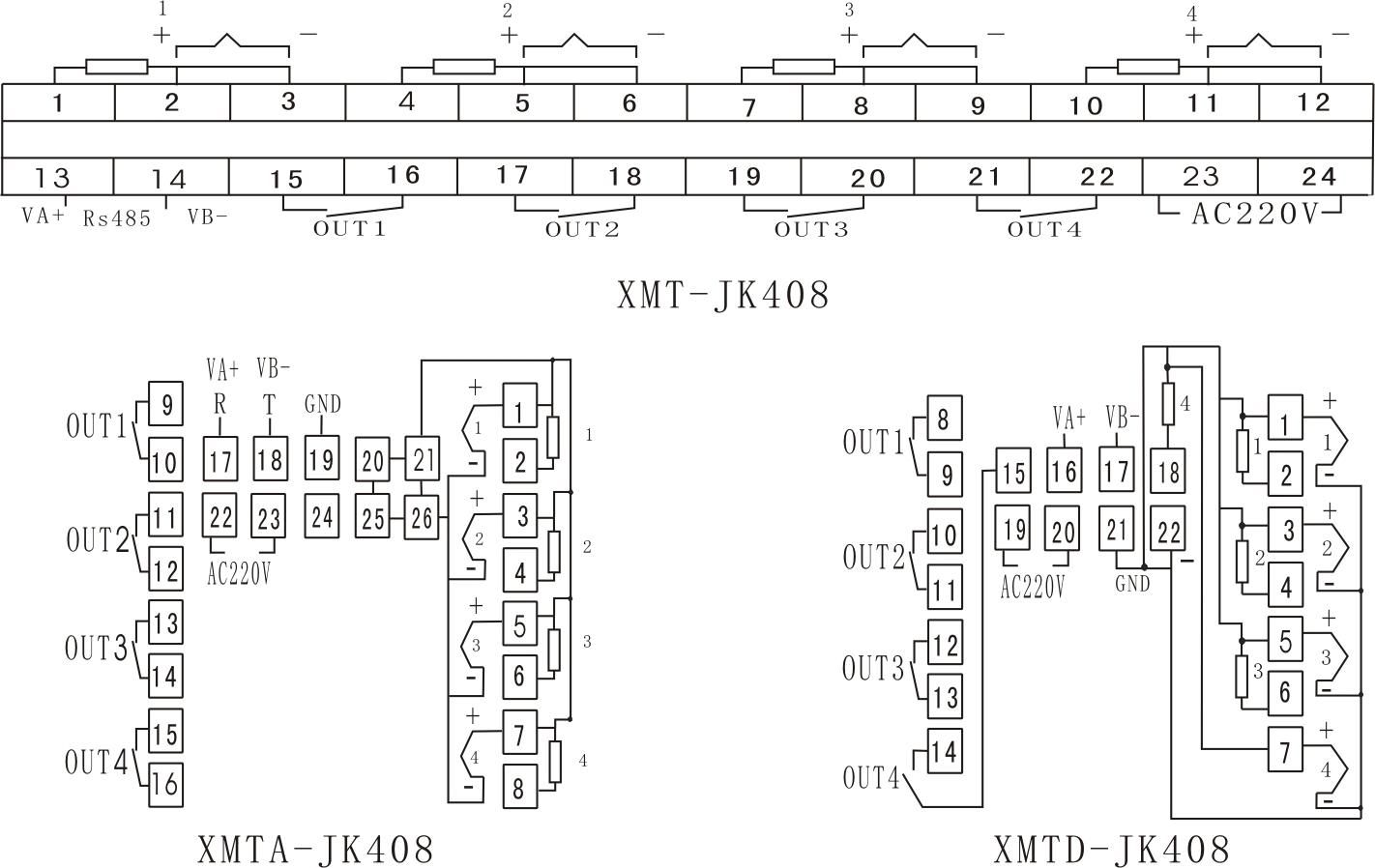

Connection scheme(consult)
