| Prod Model: |
power cable |
| Conductor: |
Copper |
| Insulation: |
XLPE |
| Sheath: |
PVC |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Brand: |
Huatong |
Product Description

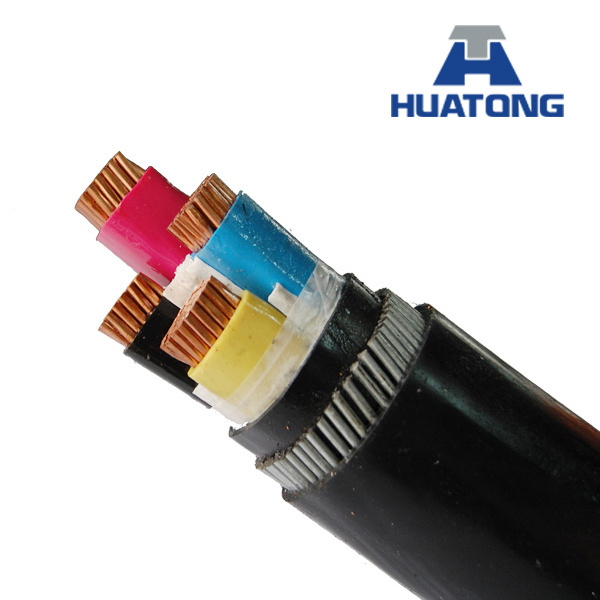

4 Core 120mm Underground Armoured PVC Power CableCable Structure Cu conductor / PVC or XLPE Insulated /STA or SWA Armored / PVC sheathed Electric Cable For Construction,Power station,Power plant,Industrial,Underground
1.Different Specification can be Customized as per your requirement.
2.Factory Price Fast Delivery.
3.Focus on Wires & Cables field with more than 10 years
4.Cable Description
Rated voltage: 0.6/1kV,~3.6/6kV or 0.6/1~1900/3300V
Standard: IEC60502 and IEC60331, BS 6346 , DIN VDE 0271
PVC power cables (plastic power cable) is one of high quality products of our company. The product not only has good electric capability, but also has good chemical stabilization, simple structure, easy to use, and the laying of cable do not be limited by the fall. It is widely used at the transformer circuit which rated voltage is 6000V or under.
The product can be produced against the standard of IEC60502 and IEC60331, BS 6346, DIN VDE 0271, and can also customize as per customer's request.
1). The long-term permissible operation temperature of the conductor shall not be higher than 70
2). The max temperature of the conductor of cable should less than 160 when short circuit. (less than 5 second)
3). The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0
4). Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardant.
5). Light weight, perfect bending properties, installed and maintained easily and conveniently
6) Rated voltage: 0.6/1kV,~3.6/6kV or 0.6/1~1900/3300V
7) Number of cores: One, two, three, four, five
8) Type, name and usage
Rate
Voltage(kv) | Sectional
Area(mm 2 ) | | No.of Core |
| 1st class | 0.6/1 | 1.8/3 | 3.6/6 | 6/10 | 8.7/15 | 12/20 | 18/30 | 21/35 |
| 2nd class | 1/1 | 3/3 | 6/6 | 8.7/10 | 12/15 | 18/20 | - | 26/35 |
| 1 Core | | 1.5-800 | 25-800 | 25-1200 | 25-1200 | 35-1200 | 50-1200 | 50-1200 | 50-1200 |
| 2 Core | | 1.5-185 | 25-185 | | | | | | |
| 3 Core | | 1.5-400 | 25-400 | 25-400 | 25-400 | 35-400 | 50-400 | 50-400 | 50-400 |
| 4 Core | | 2.5-400 | 25-400 | | | | | | |
| 5 Core | | 2.5-400 | 25-400 | | | | | | |
| Type | Name | Main Application |
| Cu Core | Al Core |
YJV
YJY | YJLV
YJLV | XLPE insulated,PVC or PE Sheathed Power Cable | For laying indoor,tunnel,channel and undergroud,Unable to bear external mechanical force,but bear the traction force during laid |
YJV22
YJV22 | YJLV22
YJV22 | XLPE Insulated,Steel Tape Armoured,PVC or PE Sheathed Power Cable | For laying indoor,tunnel,channel and undergroud Able to bear external mechanical force,but unable to bear large pulling force |
YJV32
YJV32 | YJLV32
YJLV32 | XLPE Insulated,Fine Steel Wire Armoured,PVC or PE Sheathed Power Cable | For laying in shaft with large difference of level.Able to bear external machanical force and maderate pulling force |
YJV42
YJV42 | YJLV42
YJLV42 | XLPE Insulated,Thick Steel Wire Armoured,PVC or PE Sheathed Power Cable | Able to bear positive pressure and pulling force |
If need more details,please contatc us freely.
