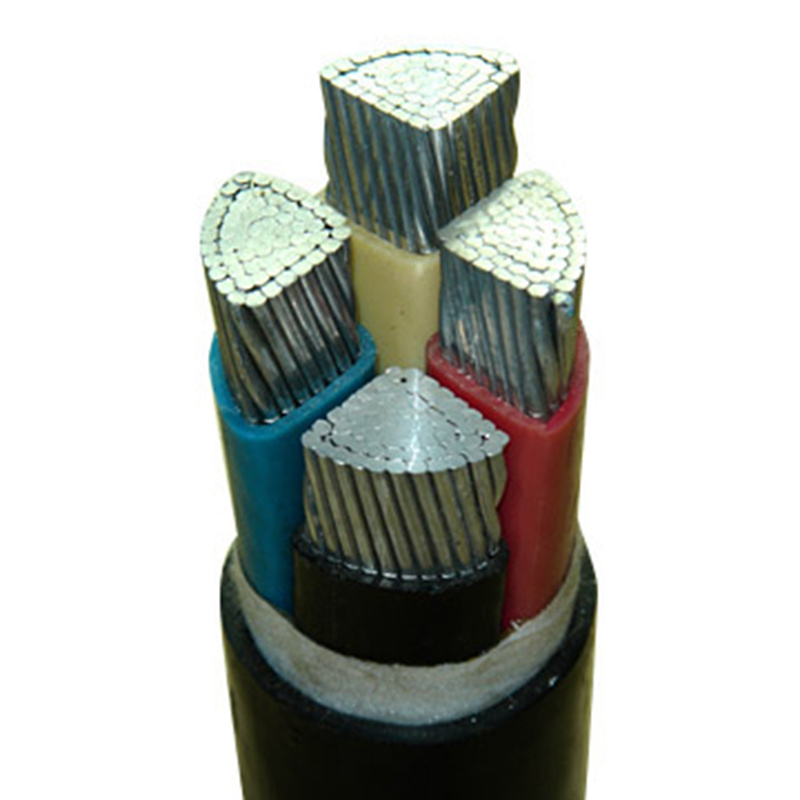

4 Core Aluminium Conductor Steel Wire Swa Armoured Power Cable
| Price: |
US $ 1.8-36/Meter |
| Min Order: |
300/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
4 core |
| Color: |
Black,Red,Yellow,Blue,Brown,Green |
| Popular Size: |
95mm 120mm 150mm |
| Certificate: |
Ce,ISO9001 |
| Business Type: |
Manufacturer |
| Factory Location: |
Henan |
| Applicated Standard: |
IEC 60502-1 |
| Key Word: |
Steel Wire Armoured Cable |
| Key Word 2: |
Swa Cable |
| Key Word 3: |
4 Core Armoured Cable |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
CE |
| Wire Core Material: |
Aluminum |
| Model: |
Yjlv32 |
| Brand: |
Jytop |
Product Description
4 core aluminium conductor steel wire swa armoured power cable 1. Operating Characteristics of cable swa
Rated voltage: 0.6/1(1.2)kV
Max. Permissible continuous operating temperature of conductor: 90 ° C
Max. Temperature of conductor during short-circuit (5s max. Duration) shall not exceed: 250 ° C
The ambient temperature under installation should not be lower than: 0 ° C
The bending radius of cable is recommended as following:
For single core cable: Not less than 15 times of the diameter of cable
For multi-core cable: Not less than 12 times of the diameter of cable
When the armored single core cable used for Alternative Current(AC) system, the armoring material should be non-magnetic.
2. Application of steel wire armoured cable
The cable is used for fixed installations such as electric power distribution networks or industrial installations, which is laid in high fall area, able to bear external mechanical force, and certain pulling force.
3. Manufacturing Standards of 4 core armoured cable.
IEC 60502-1 & Chinese national standard GB/T 12706-2008 We can produce above cables according to popular international standards such as ASTM, BS, DIN, NF &AS/NZ also.
NOTE:
If you want to know more details about this kind of products, please visit our website(homepage) because we have no ways to show so much information on this platform. Thank you.
Cable size |
Conductor type | Nominal thickness of XLPE insulation (mm) | Approx.
diameter
of steel
wire(mm) | Nominal thickness of PVC or PE sheath(mm) | Approx. cable overall diameter (mm) | Max. D.C resistance @ 20ºC(Ω/km) |
| 4x1.5mm 2 | RE or RM | 0.7 | 0.8 | 1.8 | 14.5 | 18.1 |
| 4x2.5mm 2 | RE or RM | 0.7 | 1.25 | 1.8 | 16.4 | 12.1 |
| 4x4mm 2 | RE or RM | 0.7 | 1.25 | 1.8 | 17.5 | 7.41 |
| 4x6mm 2 | RE or RM | 0.7 | 1.25 | 1.8 | 18.7 | 4.61 |
| 4x10mm 2 | RM | 0.7 | 1.6 | 1.8 | 22.5 | 3.08 |
| 4x16mm 2 | RM | 0.7 | 1.6 | 1.8 | 25.1 | 1.91 |
| 4x25mm 2 | SM | 0.9 | 1.6 | 1.8 | 26.9 | 1.20 |
| 4x35mm 2 | SM | 0.9 | 1.6 | 1.9 | 29.2 | 0.868 |
| 4x50mm 2 | SM | 1.0 | 2.0 | 2.0 | 33.4 | 0.641 |
| 4x70mm 2 | SM | 1.1 | 2.0 | 2.2 | 37.4 | 0.443 |
| 4x95mm 2 | SM | 1.1 | 2.0 | 2.3 | 41.7 | 0.320 |
| 4x120mm 2 | SM | 1.2 | 2.5 | 2.4 | 46.2 | 0.253 |
| 4x150mm 2 | SM | 1.4 | 2.5 | 2.6 | 50.7 | 0.206 |
| 4x185mm 2 | SM | 1.6 | 2.5 | 2.8 | 55.8 | 0.164 |
| 4x240mm 2 | SM | 1.7 | 2.5 | 3.0 | 62.0 | 0.125 |
| 4x300mm 2 | SM | 1.8 | 3.15 | 3.1 | 87.6 | 0.100 |
