| Prod Model: |
GYFTY-4B1.3 |
| Testing Equipment: |
OTDR |
| Material: |
All of New |
| Optical Fiber: |
The First Grade |
| Suitable Areas: |
Areas with Lightning Strike and Thunder |
| Thunder Proof: |
Yes |
| Max Core: |
288 |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
CCC |
| Sheath Material: |
PE |
| Allowed Lateral Pressure: |
300n<1000n |
| Allowed Tensile Strength: |
600n<1500n |
| Brand: |
Hongan |
Product Description
| Characteristics of product: |
| 1.Small diameter,lighter and softness. |
| 2.Reasoning designation,excellent water-blocking performance. |
| 3.FRP as non-metallic strength member. |
| 4.Good electromagnetism resistance ability. |
| 5.Thunder proof Single Mode optical fiber cable. |

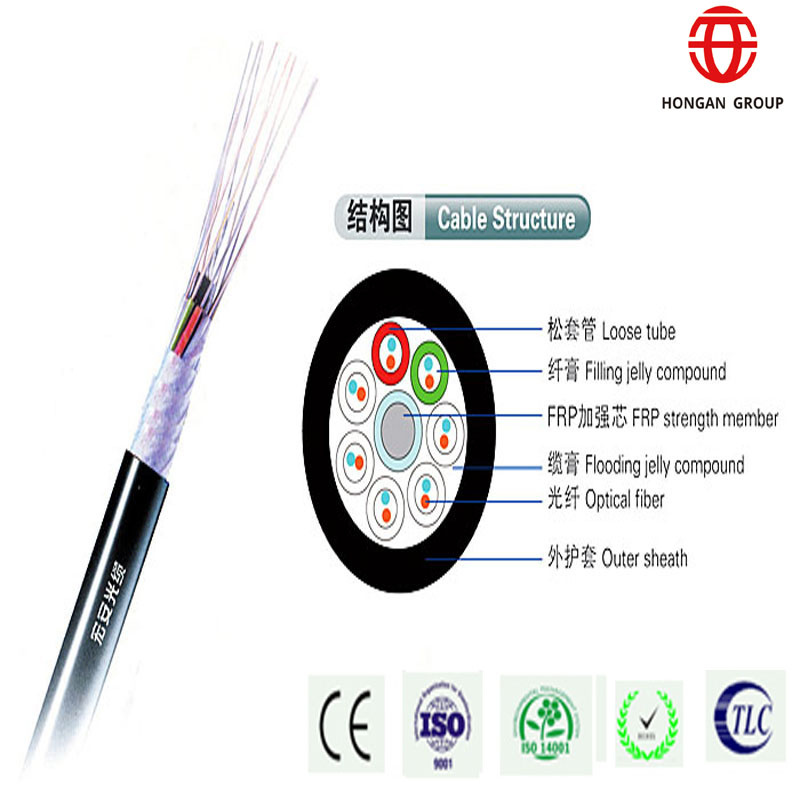

Structure parameters:| Fiber count | Structure | Nominal diameter (mm) | Nominal weight (kg/km) | Permitted tensile Long term/ Short term (N) | Permitted crush Long term/ Short term (N) | Bend radius Static state/ Dynamic state (mm) |
| 2-36 | 1+6 | 8.6 | 60 | 600/1500 | 300/1000 | 10D/20D |
| 38-72 | 1+6 | 9.3 | 68 | 600/1500 | 300/1000 | 10D/20D |
| 74-84 | 1+7 | 10 | 82 | 600/1500 | 300/1000 | 10D/20D |
| 86-96 | 1+8 | 10.8 | 96 | 600/1500 | 300/1000 | 10D/20D |
| 98-108 | 1+9 | 11.4 | 103 | 600/1500 | 300/1000 | 10D/20D |
| 110-120 | 1+10 | 12 | 114 | 600/1500 | 300/1000 | 10D/20D |
| 122-132 | 1+11 | 12.6 | 125 | 600/1500 | 300/1000 | 10D/20D |
| 134-144 | 1+12 | 13.3 | 138 | 600/1500 | 300/1000 | 10D/20D |
| 146-216 | 1+6+12 | 13.8 | 149 | 600/1500 | 300/1000 | 10D/20D |
| 218-288 | 1+9+15 | 15.5 | 195 | 600/1500 | 300/1000 | 10D/20D |

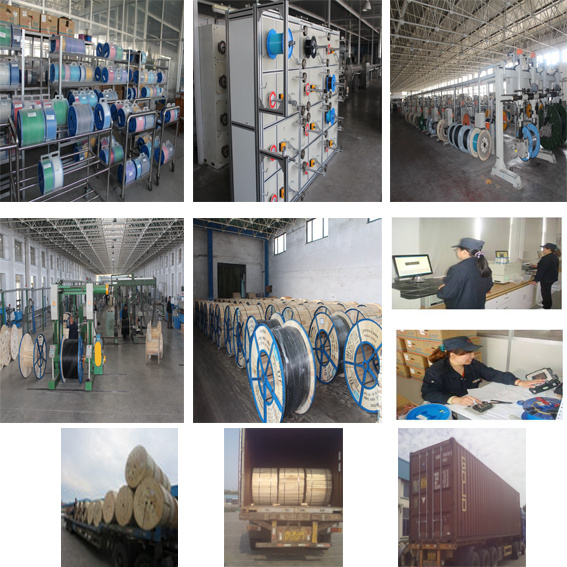

Production Line:

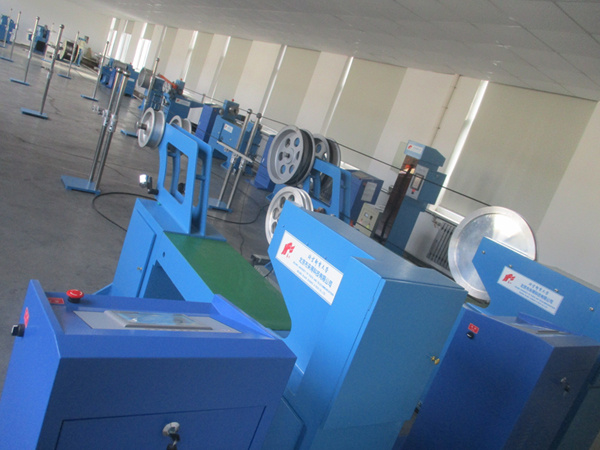

Advanced testing equipments:
Certifications:
Company introduction:
This is HONGAN GROUP. Located in Shandong China. We Specialized produce optical fiber cable, network data cable and multi pair telephone cables more than 30 years. And supply EPON , GPON, Data center Solutions and Equipments. Our products had passed ISO9001 ,ISO14001 and OHSAS18001. And meet the requirements of CE,RoHS ,TLC and UL. Shipped to Thailand, Cambodia ,Burma,Vietnam,Laos,Europe,Africa and so on. More than twenty countries.Our Customers:
FAQ-Q1:Are you a Factory or Trade Company?
A:We are cable manufacturer with 32's years experience,welcome to visit us in your free time.Thank you.
-Q2:Where is your factory loated? How can I visit there?
A:Our factory is loated in Weihai city,Shandong Province,China.Welcome all clients to visit our factory warmly!
-Q3:What kind of material we use?
A:High Quality PE,PVC,LSZH etc.
-Q4:What is our after-sale service?
A:Two years' warranty and professional technology person to solve your matters.
-Q5:Do you provide any sample?
A:Yes,we do pleasure to provide samples for your reviewing and testing.
-Q6:How many years does the fiber cable's life?
A:Fiber cable's life is about 25 years. Hongan Group, Welcome you! Best regards: David Li (Trade manager)
Phone:+8613563191771 Tel: +86-631-8088621
Website: http://www.hongan.com.cn
Hongan Group Co., Ltd, which locates at Wendeng city of Shandong peninsula, establised in 1985. It has 1500 employees and total assets is over 1.5 billion RMB yuan. It covers an area of 2 million square meters, construction area is 0.6 million square meters. Main products are optical fiber cables, data cables, communications cables etc. Its yearly productive capabilities are 4 million core kilometers, 0.5 million boxes, and 6 million pair kilometers respectively. It is now one of largest production, research and development, sales companies in China. It has 8 branches, such as Hongan Optical Fiber Cables, Hongan Data Cables, Hongan municipal Cables etc, provincial enterprise technology development center and post-doctor scientific research workstation.
Hongan optical fiber cable company has always stood on high starting point, high technology and high standard since it was founded. Production capacity is 50 million core kilometers. Respectively imported the world's advanced level of fiber optic cable production, testing equipment from Switzerland, United States, Japan and other countries. By technical exchange and cooperation with foreign countries, Hongan group has always stand in the forefront in the field of optical fiber manufacturing field.
Advanced equipment is the basic guarantee for the top quality products. Hongan group has invested $35 million and imported 22 sets advanced production lines of photoelectric communication cable and matched monitoring and control equipments and instruments, which imported from the United States, Japan and European Unions. Production capacity is 6 million pair kilometers. Products percent of pass is up to 99.9999%.
