4 Core Jetnet Optical Fiber Cable Used for Air-Blowing Installation
| Price: |
US $ 0.25-0.38/Meter |
| Min Order: |
10000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
GCYFY |
| Color: |
Black |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
144 Cores G652D |
| Core: |
144 |
| Brand: |
Hongan |
| Sheath Material: |
PE |
Product Description
Product Description:
| Item | Unit | Specification |
| Fiber Type | G.652D |
| Mode field diameter | 1310nm | mm | 9.2 ± 0.4 |
| 1550nm | mm | 10.4 ± 0.8 |
| Cladding diameter | mm | 125.0 ± 1 |
| Cladding non-circularity | % | £1.0 |
| Core concentricity error | mm | £0.5 |
| Coating diameter | mm | 242 ± 7 |
| Coating/cladding concentricity error | mm | £12 |
| Cable cut-off wavelength | nm | £ 1260 |
| Attenuation Coefficient | 1310nm | dB/km | £0.38 |
| 1550nm | dB/km | £0.25 |
| Proof stress level | kpsi | ≥100 |
Note: Other parameters meet standard ITU-T G.652 | Fiber count | Structure | Fibers per tube | Loose tube diameter
(mm) | CSM diameter
/pad diameter(mm) | Thickness of outer jacket(mm) | Cable diameter/
Height
(mm) | Cable
Weight
(kg/km) |
| 2 | 1+6 | 2 | 1.6 ±0.1 | 1.8/1.8 | 0.55±0.05 | 6.6 ±0.5 | 33 |
| 4 | 1+6 | 4 | 1.6 ±0.1 | 1.8/1.8 | 0.55±0.05 | 6.6 ±0.5 | 33 |
| 8 | 1+6 | 4 | 1.6 ±0.1 | 1.8/1.8 | 0.55±0.05 | 6.6 ±0.5 | 33 |
| 12 | 1+6 | 6 | 1.6 ±0.1 | 1.8/1.8 | 0.55±0.05 | 6.6 ±0.5 | 33 |
| 24 | 1+6 | 6 | 1.6 ±0.1 | 1.8/1.8 | 0.55±0.05 | 6.6 ±0.5 | 34 |
| 36 | 1+6 | 6 | 1.6 ±0.1 | 1.8/1.8 | 0.55±0.05 | 6.6 ±0.5 | 35 |
| 72 | 1+6 | 12 | 1.7 ±0.1 | 2.0/3.0 | 0.55±0.05 | 7.0 ±0.5 | 40 |
| 96 | 1+8 | 12 | 1.7 ±0.1 | 2.0/3.0 | 0.55±0.05 | 8.0 ±0.5 | 52 |
| 144 | 1+12 | 12 | 1.7 ±0.1 | 2.0/5.2 | 0.55±0.05 | 10.2 ±0.5 | 82 |

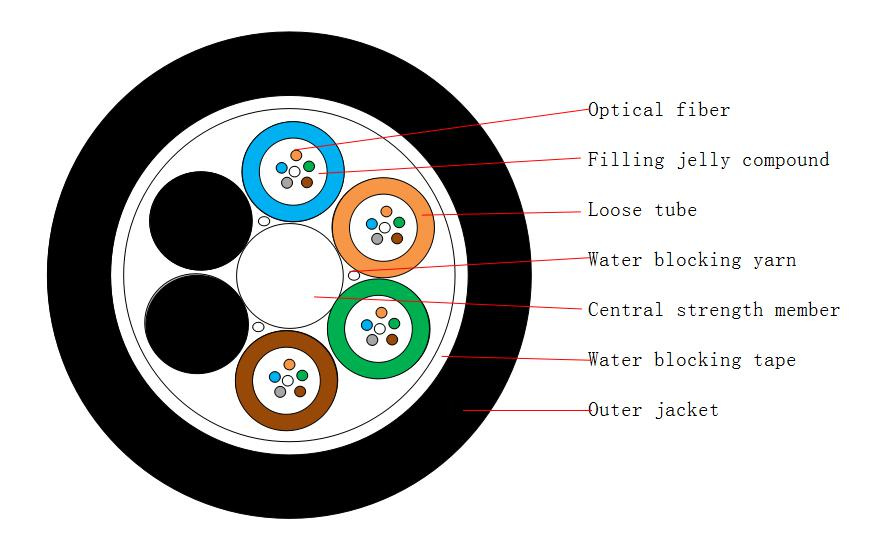

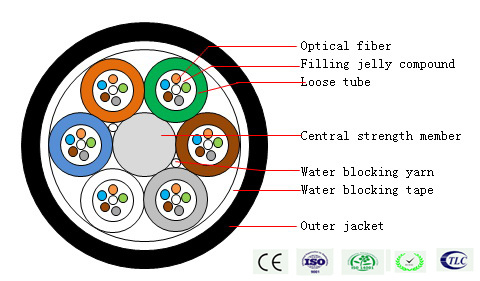

| Item | Parameters |
| Loose tube | Material | PBT |
| Color | Full color spectrum |
| Filler | Material | PE |
| Color | Black |
| CSM | Material | FRP |
| Outer jacket | Material | HDPE |
| Color | Black |
| Min. bending radius | Static | 10 times cable diameter |
| Dynamic | 20 times cable diameter |
| Tensile performance | Short term | 0.5G The addition attention≤0.1dB |
| Crush | Short term | 450N/100mm The addition attention≤0.1dB |
Company introduction:HONGAN GROUP is located in Shandong China. We Specialized in producing optical fiber cable, network data cable and multi pair telephone cables more than 30 years, also supply EPON , GPON, data center solutions and related equipments. Our products have passed ISO9001 ,ISO14001 and OHSAS18001, meet the requirements of CE, RoHS, TLC and UL, and have been exported to Thailand, Cambodia ,Burma, Vietnam, Laos, Europe, Africa etc., more than twenty countries.
Advanced production lines:
Our customers:
Our certificates:
FAQ-Q1:Are you a Factory or Trade Company?
A:We are cable manufacturer with 32's years experience,welcome to visit us in your free time.Thank you.
-Q2:Where is your factory loated? How can I visit there?
A:Our factory is loated in Weihai city,Shandong Province,China.Welcome all clients to visit our factory warmly!
-Q3:What kind of material we use?
A:High Quality PE,PVC,LSZH etc.
-Q4:What is our after-sale service?
A:Two years' warranty and professional technology person to solve your matters.
-Q5:Do you provide any sample?
A:Yes,we do pleasure to provide samples for your reviewing and testing.
-Q6:How many years does the fiber cable's life?
A:Fiber cable's life is about 25 years. If any needed, welcome your contact.Best regards:David Li
Hongan Group Co., Ltd, which locates at Wendeng city of Shandong peninsula, establised in 1985. It has 1500 employees and total assets is over 1.5 billion RMB yuan. It covers an area of 2 million square meters, construction area is 0.6 million square meters. Main products are optical fiber cables, data cables, communications cables etc. Its yearly productive capabilities are 4 million core kilometers, 0.5 million boxes, and 6 million pair kilometers respectively. It is now one of largest production, research and development, sales companies in China. It has 8 branches, such as Hongan Optical Fiber Cables, Hongan Data Cables, Hongan municipal Cables etc, provincial enterprise technology development center and post-doctor scientific research workstation.
Hongan optical fiber cable company has always stood on high starting point, high technology and high standard since it was founded. Production capacity is 50 million core kilometers. Respectively imported the world's advanced level of fiber optic cable production, testing equipment from Switzerland, United States, Japan and other countries. By technical exchange and cooperation with foreign countries, Hongan group has always stand in the forefront in the field of optical fiber manufacturing field.
Advanced equipment is the basic guarantee for the top quality products. Hongan group has invested $35 million and imported 22 sets advanced production lines of photoelectric communication cable and matched monitoring and control equipments and instruments, which imported from the United States, Japan and European Unions. Production capacity is 6 million pair kilometers. Products percent of pass is up to 99.9999%.
