4 Core Self-Supporting FTTH Drop Fiber Cable with Good Quality (GJYXCH)

Name: 4 Core Self-Supporting FTTH Drop Fiber Cable with Good Quality (GJYXCH)
Brand: all-electronics-online.com
SKU: 747461415
Availability: InStock
Rating: 4.5 (108 reviews)

Price:	US $ 0.05-0.05/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJYXCH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	G652D ,50/125, 62.5/125 ,G657A ,G657A2 ,Om3-150 ,O
Fiber Count:	1-4 Cores
Fiber Material:	Doped Silica
Fiber:	Single Mode
Strength Member:	Two Parallel FRP Strength Member
Material Of Jacket:	Lszh,PVC
Self-Supporting Strength Member:	Steel Wire
Operating Temperature:	-20~+60°c
Applications:	Outdoor
Type:	Single-mode Fiber
Application:	Communication
Certification:	CCC
Brand:	Efon
Core:	1-4
Sheath Material:	Lszh,PVC
Connection Structure:	Other

Product Description

Description

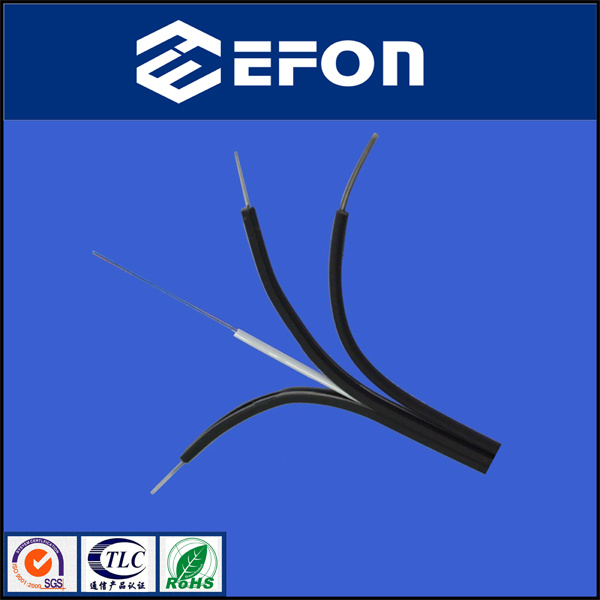

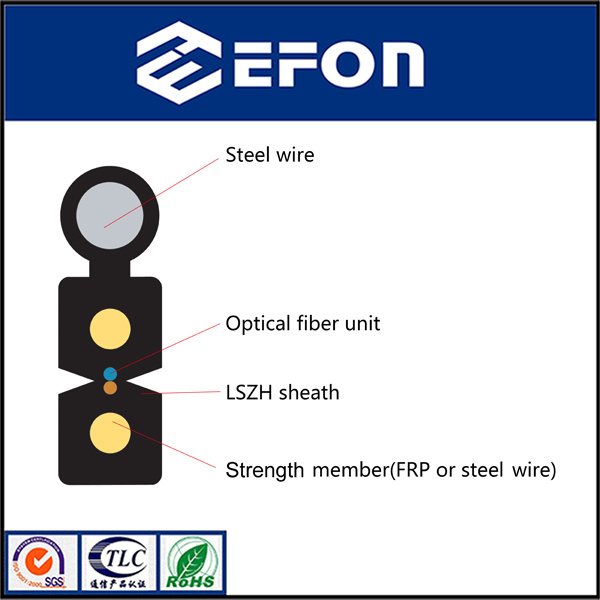

The optical fiber unit is positioned in the centre ,two parallel steel wires are placed at the two sides ,Another steel wire as the self-supporting strength member is also applied ,then the cable is completed with a black or color LSZH Sheath .

Features

Two Steel Wires as the strength member
A steel wire is applied as the additional strength member
Suitable for dropping in residential buildings, rat proof function, reliable and stable quality
Adopt fiber with small bending radius (G.657), offering good bending resistance;
Adopt all-dry structure and fiber with small bending radius, offering good bending resistance;
Safe and reliable for installation;
Easy cable stripping without need of tools, easy cable fixation and low cost of installation;
Suitable for termination at the field or factory pre-connectorized
low smoke, zero halogen and flame retardant sheath
Fiber Type: G652D ,50/125, 62.5/125 ,G657A ,G657A2 ,OM3-150 ,OM3-300 ,OM4
Jacket material: PVC, LSZH

Application :

Suitable for aerial dropping in separate residential buildings, stable and reliable performance, fitting for cable installation with long span

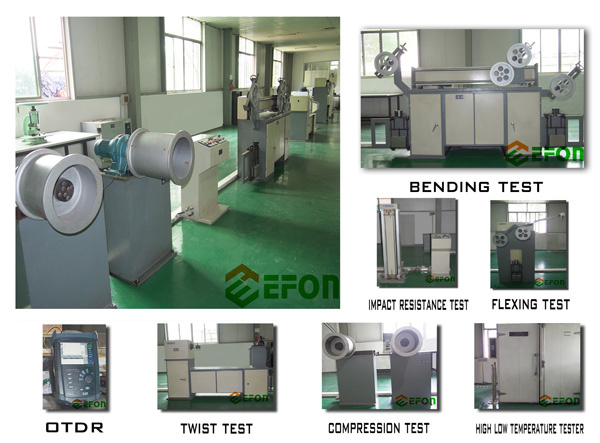

TEST CENTRE

We produce and test cable comply with following standard:

Mechanical Performance
Max Tension Performance   IEC 60794–1-2-E
Max. Operation Tension   IEC 60794–1-2-E1
Crush Test   IEC 6079 –1-2-E3
Impact Test   IEC 60794–1-2-E4
Repeated Bending IEC 60794–1-2-E6
Torsion Test IEC 60794–1-2-E7
Cable bend IEC 60794–1-2-E11A
Attenuation Coefficient ITU-T G.652
Structural Test   IEC-60793-1-20

Environmental Performance
Temperature Cycling IEC 60794–1-2-F1
Water Penetration IEC 60794–1–2-F5B
Filing Compound Flow IEC 60794-1-E14

Cable Code	Cable Count	Cable Size (mm)	Cable Weight (kg/km)	Tensile (N)		Crush (N/100mm)		Crush resistance (mm)		Range of temperature ( ° C )
Cable Code	Cable Count	Cable Size (mm)	Cable Weight (kg/km)	Long Turn	Short Turn	Long Turn	Short Turn	Dynamic	Static	Range of temperature ( ° C )
GJYXCH-01	1	2.0*5.0	20	300	600	1100	2200	30D	15D	-20~+60
GJYXCH-02	2	2.0*5.0	21	300	600	1100	2200	30D	15D
GJYXCH-04	4	2.0*5.0	23	300	600	1100	2200	30D	15D

We produce fiber optic cable, patch cord, pigtail, optical coupler, PLC splitter and other passive components for FTTX.

We offer products of a consistent quality. Our QC team monitors the manufacturing process and inspects all products before shipment.

We have a professional customer service team, which is always ready to consult you on all the issues related to our products.

Our Principles:
* Full customer satisfaction
* Commitment to high-quality service
* Relationships based on mutual trust and respect
* Long-term cooperation rather than one time profitable sale

EFON CABLE is your reliable partner in mainland China!

We were established in 2001 as a manufacturer of fiber optic cable. Since then we have been growing to become a leading Chinese manufacturer and exporter of fiber optic products around the globe.
