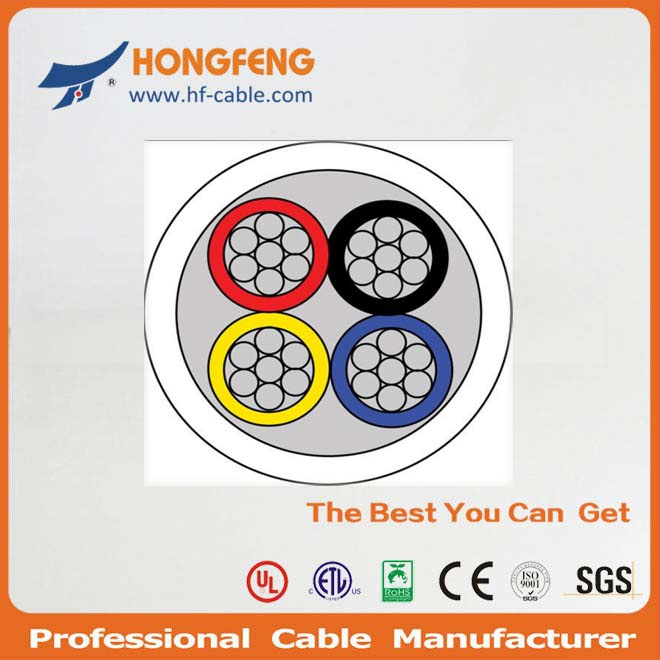

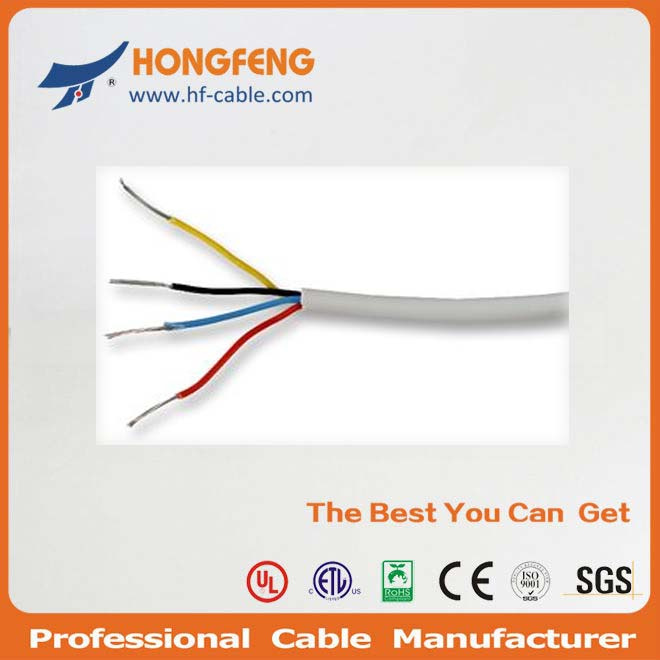

4 Core Unshield Fire Alarm Cable

Product Description

4 Core Fire Alarm Cable

shield or unshield

solid or stranded

1)  CONDUCTOR

               * Raw material of the conductor: CCA/BC/TC

               * Conductor Dia.: 7/0.20±0.003mm

2)  INSULATION

* Raw material of the conductor: PVC

* Quantity:4 twisted pairs

                        Blue;          Green;        white

                        Red;           Yellow;       Black;

* Insulation Dia. : 1.0±0.005mm

* Average thickness: 0.25 mm

   *Minimum point thickness: 0.2475mm

3) Separator: PE Tape

4) Drain wire: O.D. 7/0.20mm CCA/TC wire

5) Overall screen: AL Foil

3) Rip cord

4) SHEATH

* Sheath material:  PVC

* Nominal Dia.: 4.70 ± 0.2mm

* Average thickness: 0.50mm

* Minimum point thickness: 0.40mm

Warranty: 5 years

Delivery: 15-25 days after deposit

MOQ: 10KM per cable

----------------------------------------

Our Product Range

1) 75 Ohm Coaxial Cable:
RG59, RG6, RG7, RG11, etc.

2) 50 Ohm Coaxial Cable:
RG58, RG142, RG174, RG178, RG213, RG214, RG316, etc.

3) MIL-C-17 Military Standard Cable:
RG59 A/U, RG59 B/U, RG6 A/U, RG11 A/U, RG58 A/U, RG58 B/U, RG58 C/U, RG213, RG214, etc.

4) Trunk Distribution Cable:
P3.412 JCA/JCAM, P3.500 JCA/JCAM, P3.565JCA/JCAM, QR320 JCA/JCAM, QR540 JCA/JCAM.


5) RF Coaxial Cable:
1/2', 1/4', 1/8', 7/8', 1-1/4',1-5/8', 1-7/8', LMR195, LMR200, LMR300, LMR400, LMR500, LMR600, 3D-FB,4C-FB,5D-FB, 7D-FB, 8D-FB, 10D-FB, etc.

6) Network Cables & LAN Cable:
CAT3, UTP/FTP CAT5, UTP/FTP/SFTP CAT5e, UTP/FTP CAT6, UTP/FTP CAT6a, UTP/FTP CAT7, etc.

7) Composite Cable:
RG59+2C Siamese Cable, RG6+2C Siamese Cable, 2RG59+2RG6, 2RG6+2CAT5e, etc.

8) British Standard Coaxial Cable:
BT3002, CT100, CT125, CT165, URM57, URM67, URM70, etc.

9) Japanese Standard Coaxial Cable:
1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.

10) French Standard Coaxial Cable:
11VATC/PATC, 17VATC/PATC, 19VATC/PATC, 21VATC/PATC, 25VATC/PATC, KX6/A, KX8, etc.

11) Alarm Cable, Control Cable:
Unscreened PVC Jacketed Alarm Cable, Screened PVC Jacketed Alarm Cable.

12) Optic Fiber Cable
GYXTW, GYXTC8S, GYTC8A, GYTA, GYFTY, GYTA53, GYXTC8S, GYXTS, Indoor Fiber Cable, etc.
