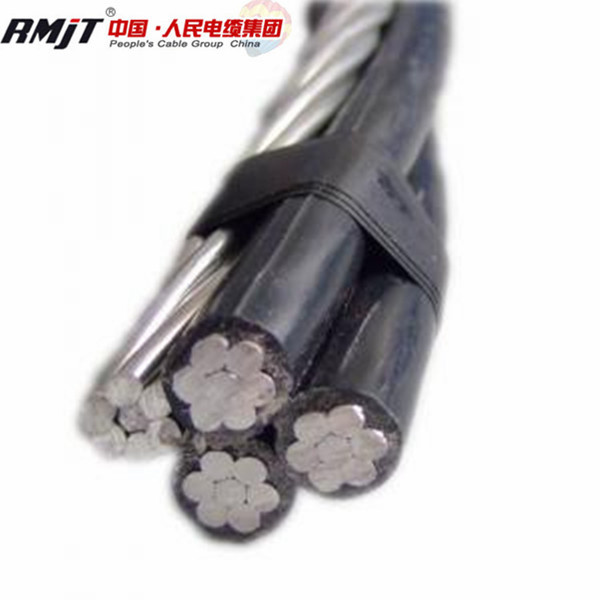

4 Core XLPE Insulation ABC Aerial Bundle Cable
| Price: |
US $ 0.09-0.23/Meter |
| Min Order: |
5000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
ABC Cable |
| Standard: |
BS,DIN |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Aluminum |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Sheath Material: |
Bare |
| Range Of Application: |
Overhead |
| Brand: |
Rmjt |
Product Description
4 core XLPE Insulation ABC Aerial Bundle Cable
1.Application for abc aerail bundeld cable
To supply 120 volts aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.
SERVICE DROP CABLE TO supply power from the utility's lines to the consumer's weatherhead. For service at 600 volts or less (phase to phase) at a conductor temperature of 75°C maximum for polyethylene insulation or 90°C maximum for crosslinked polyethylene (XLP) insulated conductors.
2.Features for abc aerial bundled cable
Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or XLP crosslinked polyethylene. Neutral messengers are concentrically stranded 6201, AAC or ACSR.
3.Standards for abc aerial bundled cable
Service drop cable meets or exceeds the following ASTM specifications:
- B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
- B-231 Aluminum Conductors, Concentric-Lay-Stranded
- B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
- B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.
SPEC mm2 | Conductor structure | Insulation Material | Insulation Thickness (mm) | Approx overall diameter (mm) | Approx weight (kg/km) |
Phase (compacted Al) | Neutral (alloy) |
No./mm | No./mm |
1*16+1*16 | 7/1.72 | 7/1.72 | XLPE (HDPE) | 1.2 | 12.5 | 110.1 |
1*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 14.9 | 163.9 |
1*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 17.5 | 229.0 |
1*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 20.1 | 300.0 |
1*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 23.6 | 423.2 |
1*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 27.6 | 585.4 |
2*16+1*16 | 7/1.72 | 7/1.72 | 1.2 | 14.2 | 175.8 |
2*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 16.7 | 258.4 |
2*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 19.7 | 361.2 |
2*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 22.5 | 472.1 |
2*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 26.1 | 658.3 |
2*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 30.5 | 908.2 |
3*16+1*16 | 7/1.72 | 7/1.72 | 1.2 | 16.3 | 241.5 |
3*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 19.1 | 353.6 |
3*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 22.5 | 493.5 |
3*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 25.7 | 644.1 |
3*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 29.7 | 895.2 |
3*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 34.6 | 1233.5 |
Code word | AWG or kcmil | Bare Neutral Messenger | Phase conductor | Weight Kg/km | Allowcable Ampacities(A) |
ACSR | Rated Strength Lbs. | AAC | Insul Thick.mm | XLPE | PE |
Number | Dia. mm | Number | Dia.mm | Number | Dia.mm |
Setter Shepherd Eskimo Terrier Chow Bull | 1*6AWG+1*6AWG 1*6AWG+1*6AWG 1*4AWG+1*4AWG 1*4AWG+1*4AWG 1*2AWG+1*2AWG 1*1/0AWG+1*1/0AWG | 1 1 1 1 1 1 | 1.68 1.68 2.12 2.12 2.67 3.37 | 6 6 6 6 6 6 | 1.68 1.68 2.12 2.12 2.67 3.37 | 1190 1190 1860 1860 2850 4380 | 1 7 1 7 7 19 | 4.11 1.56 5.19 1.96 2.47 1.89 | 1.14 1.14 1.14 1.14 1.14 1.52 | 111 113 171 173 266 427 | 85 85 115 115 150 205 | 70 70 90 90 120 160 |

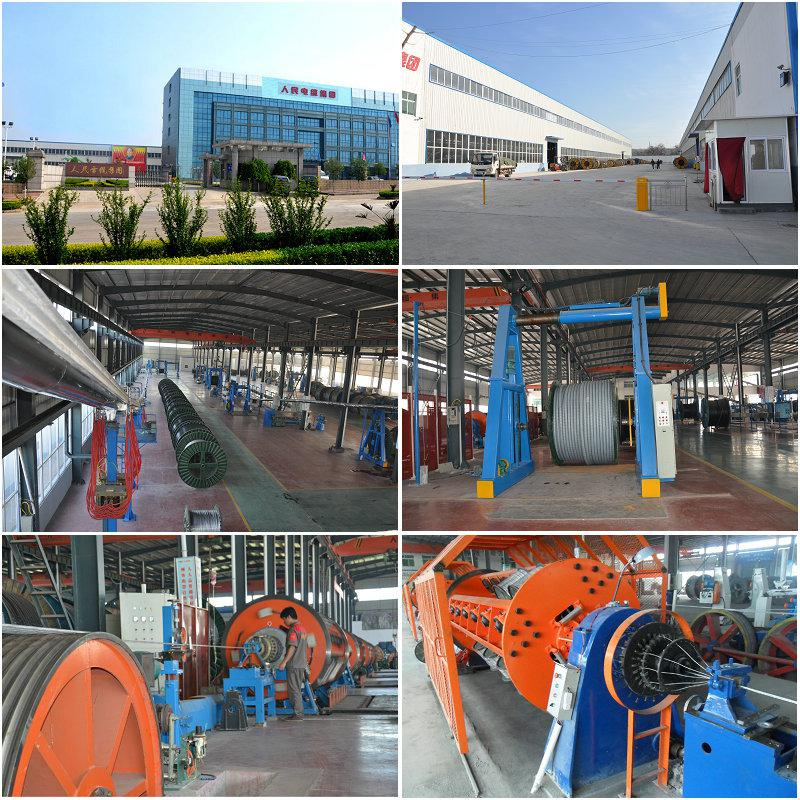

People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
