Product Description

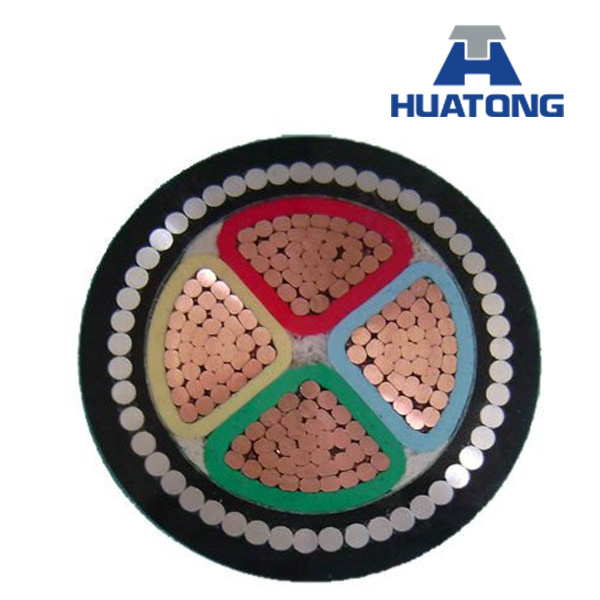

4 Core XLPE Power Cable supply KPLC
1. Voltage:
According to the IEC 60502, the voltage is 0.6/1(1.2)kv, 1.8/3(3.6) kv, 3.6/6(7.2)kv, 6/10(12)kv, 8.7/15(17.5)kv, 12/20(24)kv, 18/30(36)kv, 21/35kv;
2. Conductor:
Conductor is accoriding to IEC60228, the class 1 or the class 2, bare annealed copper wire or metallic annealed copper wire, aluminium or aluminium alloy;
3.Insualtion:
PVC can be used for 0.6/1kv, 1.8/3kv, as well as 3.6/6kv;
XLPE can be used for every voltage according to the IEC 60502;
The thickness of PVC insulation 3.6/6kv is 3.4mm;
The thickness of XLPE insulation for 3.6/6kv is 2.5mm for <=185mm2;
For 6/10kv is 3.4mm, for 8.7/15kv is 4.5mm, for 12/20kv is 5.5mm, for 18/30kv is 8.0mm
4.Shied:
The metallic shield layer is essential for every insulated cores.
The conductor shield and insulation shield are both needed, except the 2 conditions as below:
For the 3.6/6kv, EPR/HEPR insulated, the shield layer can be omitted;
For the 3.6/6kv PVC insulated styles, the shield layer can also be omitted.
Table of the voltage, cores and cross-section
Item |
Category A ,B |
3.6/6kV |
6/10kV |
8.7/15kV |
12/20kV |
18/30kV |
21/35kV |
Category A ,B |
6/6kV |
8.7/10kV |
12/15kV |
18/20kV |
- |
26/35kV |
Single core |
mm2 |
25-1200 |
25-1200 |
35-1200 |
50-1200 |
50-1200 |
50-1200 |
Three core |
mm2 |
25-400 |
25-400 |
35-400 |
50-400 |
50-400 |
50-400 |
Cable name and application
Type |
Designation |
Applications |
YJV |
Copper conductor,XLPE insulated,PVC sheathed
power cable |
For laying indoors,in tunnel or cable
trench,unable to bear external
mechanical forces.Single core cable
is not allowed to laid in magnetic duct. |
YJLV |
Aluminum conductor,XLPE insulated,PVC
sheathed power cable |
YJY |
Copper conductor, XLPE insulated,PE sheathed
power cable |
YJLY |
Aluminum conductor, XLPE insulated,PE
sheathed power cable |
YJV22 |
Copper conductor,XLPE insulated,steel tape
armoured,PVC sheathed power cable |
For laying indoors,in tunnel in cable
trench,or direct in ground,able to
bear external mechanical
forces.Single core cable is not
allowed to laid in magnetic duct. |
YJLV22 |
Aluminum conductor,XLPE insulated,steel tape
armoured,PVC sheathed power cable |
YJV23 |
Copper conductor,XLPE insulated,steel tape
armoured,PE sheathed power cable |
YJLV23 |
Aluminum conductor,XLPE insulated,steel tape
armoured,PE sheathed power cable |
YJV32 |
Copper conductor,XLPE insulated,steel wire
armoured,PVC sheathed power cable |
For laying indoors,in tunnel cable
trench,well or direct in ground,able to
bear external mechanical forces and
certain pulling force. |
YJLV32 |
Aluminum conductor,XLPE insulated,steel wire
armoured,PVC sheathed power cable |
YJV33 |
Copper conductor,XLPE insulated,steel wire
armoured,PE sheathed power cable |
YJLV33 |
Aluminum conductor,XLPE insulated,steel wire
armoured,PE sheathed power cab |
