Name: 4 Cores Gjxv FTTH Indoor Optical Fiber Cable
Brand: all-electronics-online.com
SKU: 727067672
Availability: InStock
Rating: 4.6 (117 reviews)

Price:	Negotiable/Meter
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJXHV
Application:	Express Railway
Type:	Single-mode Fiber
Connection Structure:	SC-SC
Certification:	Tlc
Brand:	Dumei

Product Description

Cable Type:GJXV
optical fiber
Metal or Non-metallic Strength Member
Flame retardant sheath(PVC/LSZH)

Description

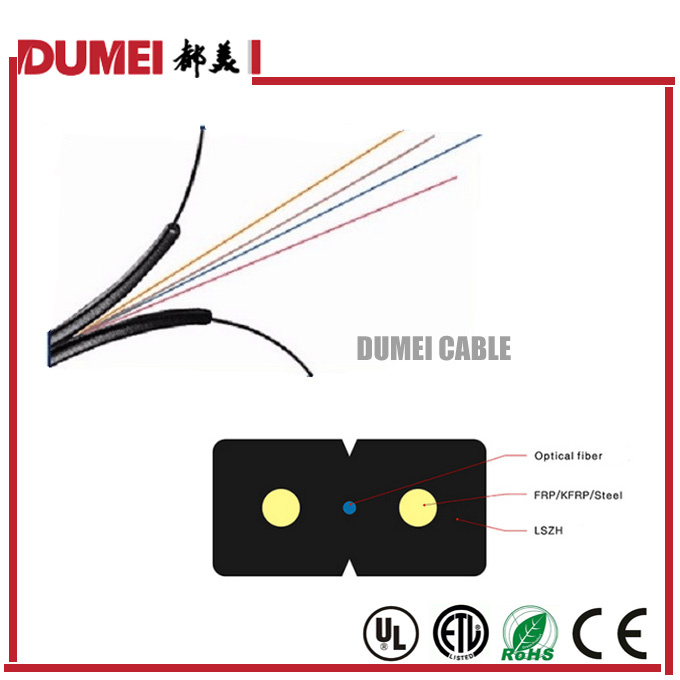

The optical fiber unit is positioned in the central. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then, the cable is completed with a black or color LSZH or PVC sheath.

Application:
End-customer network access
Suitable for Indoor network,buildings,Aerial and Pipeline laying method
Operating Temperature:-40ºC-+60ºC

Cable Characteristic:
Optical fiber: 4 cores
Small diameter,light weight,high tensile strength.
Groove design in appearance, easy to strip and splice,simplified installation and maintenance.
Excellent flexible structure and bending-resistant performance.
Flame retardant sheath(PVC/LSZH)

Product perameter

Model Number	GJXV,GJXFV
Type	Optical fiber
Number of Conductors	4
Certification	TLC, ISO
OEM	Welcome to OEM for FTTH Indoor Cable
Item	FTTH Indoor Cable
Jacket Material	PVC
Laying method	FTTH/FTTX/FTTA
Standards	YD/T 1258.2-2003,ICEA-596,GR-409,IEC794,OFNR & OFNP
Application	indoor wiring, building introduction
Operating Temperature	-40 to 60 degree

Technical parameters:

Items		unit	Details
Fiber counts		--	4
Optical fiber	Type	--	G.657a
Two parallel Steel wire strength member		--	FRP
PVC sheath		--	YES
Tension (Long/Short Term)		N	600/1500
Crush (Long/Short Term)		N/100mm	300/1000
Min. Bending radius		Dynamic	30times cable diameter
Min. Bending radius		Static	15times cable diameter
Temperature range		Operation	-40°C to 60°C
Application			Indoor

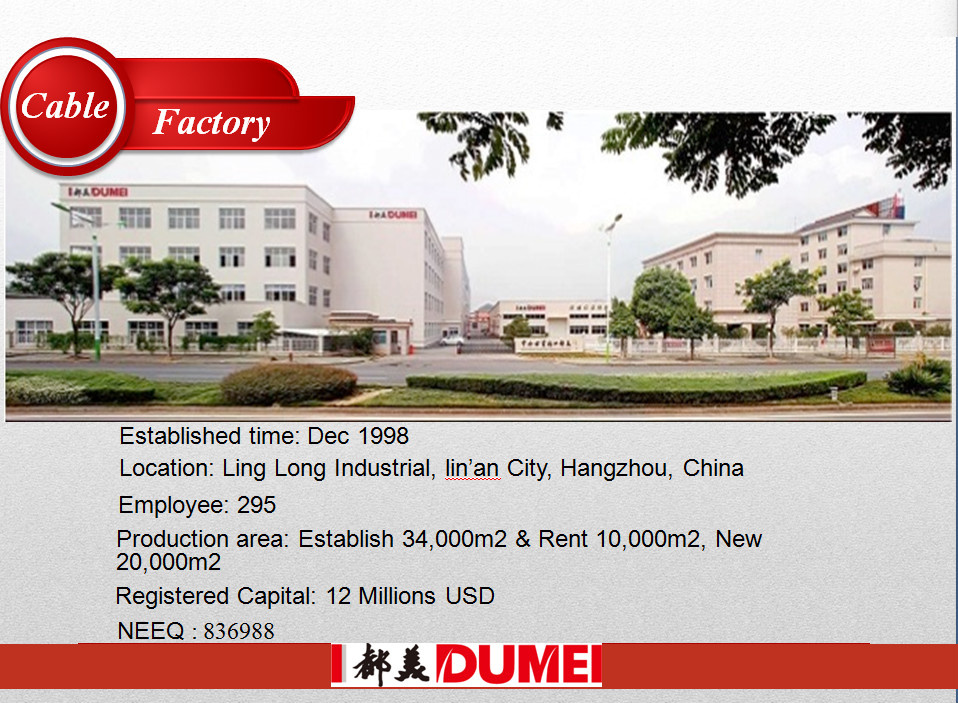

1, Cable Factory

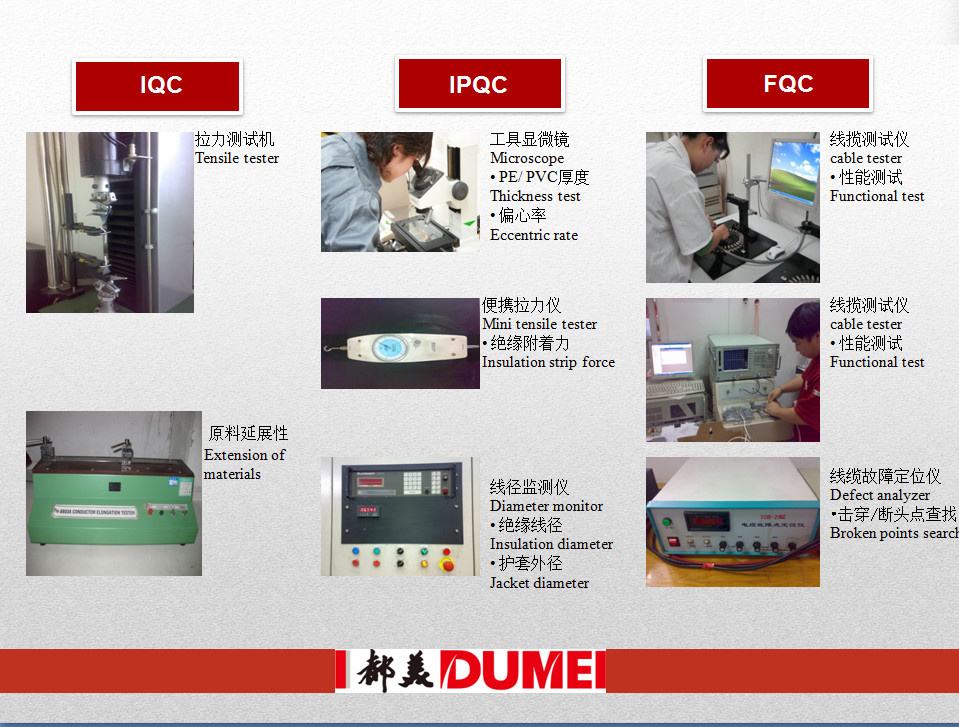

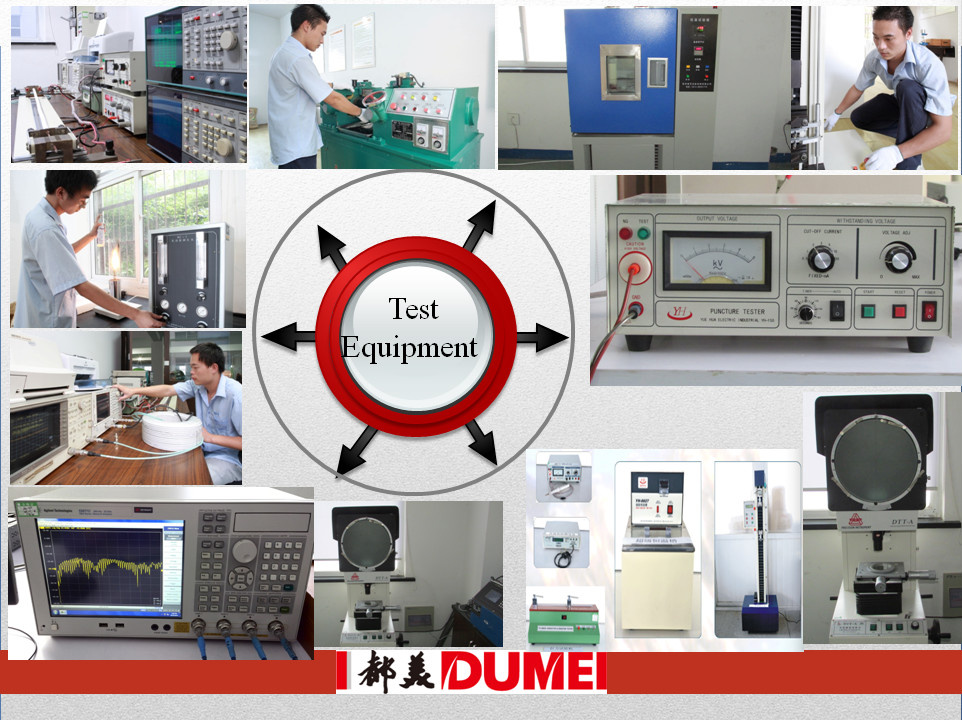

2, Advanced Measurement Equipments

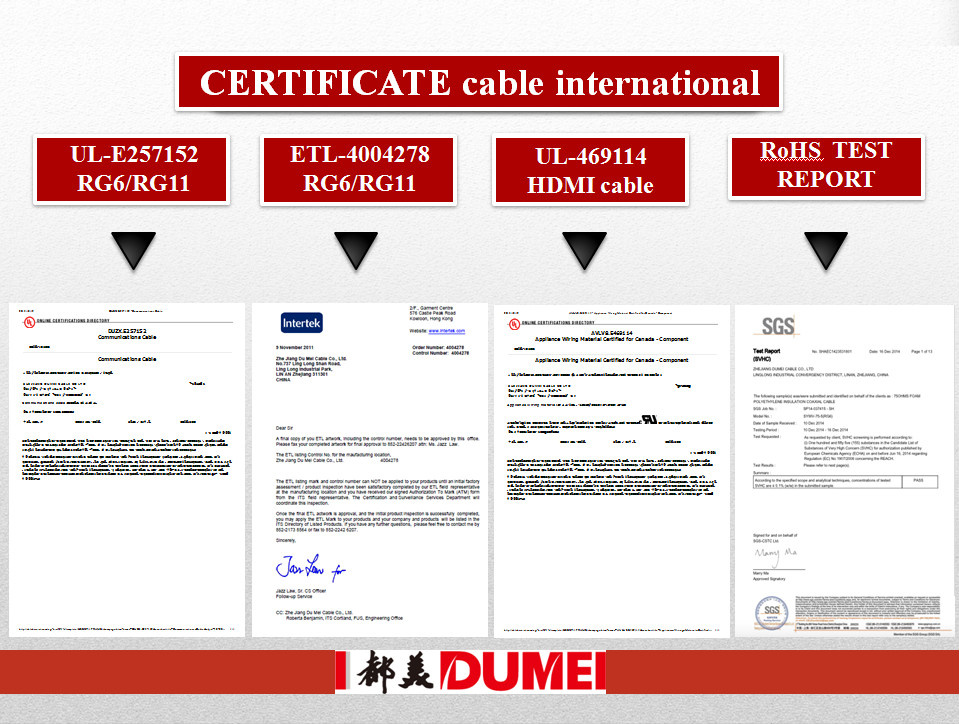

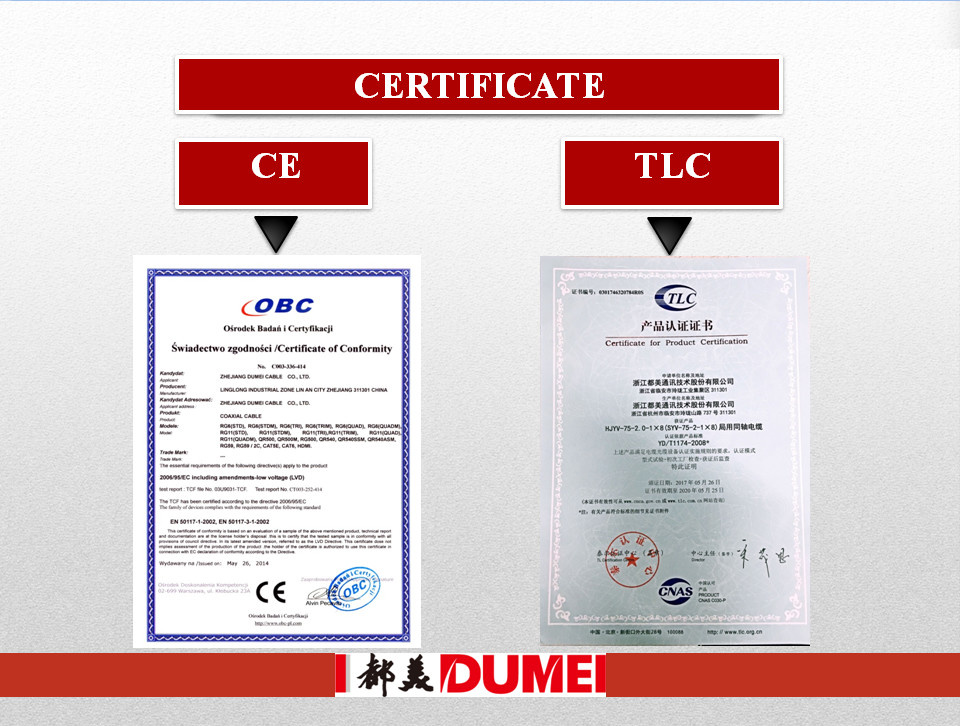

3, Certifications

4, Contacts

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect o UR service, we provide the products with good quality at the reasonable price.
