| Prod Model: |
YJV |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Brand: |
OEM |
Product Description
Specifications
1.underground electrical armoured cable
2.Certificates:BV ISO CQC
3.High quality
4.Short delivery
5.Best price

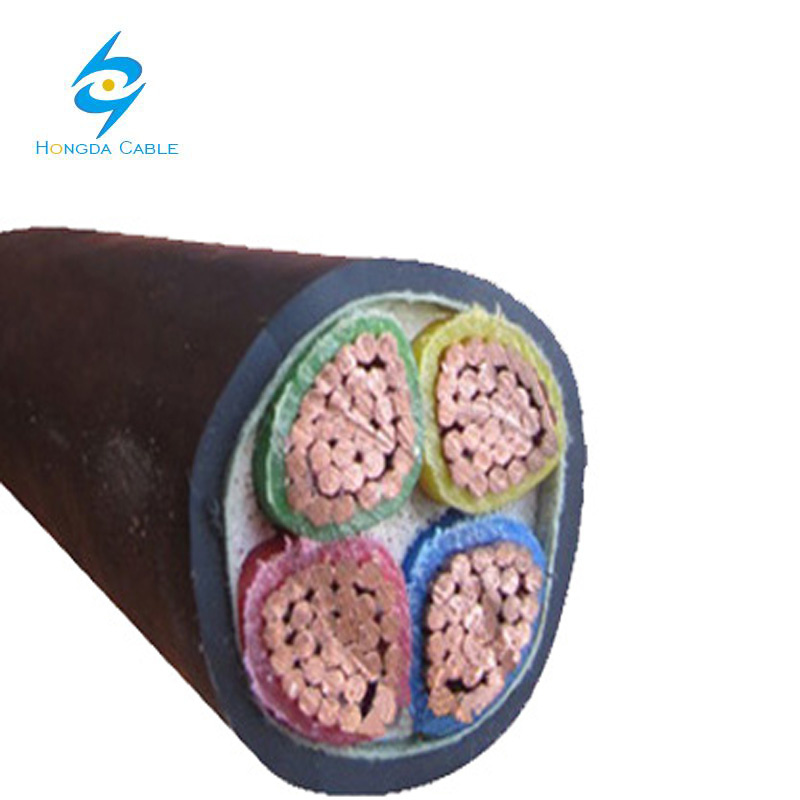

4 core underground electrical armoured cable power cable 25mm 35mm 50mm 70mm 95mm 120mm 185mm 240mm 300mm power cable
2. Voltage :
up to 35KV
3. Specification:
| Type | Designation | Application |
| VV | Copper conductor ,PVC insulated ,PVC sheathed power cable | For laying indoors, in tunnel or cable trench,unable to bear extermal mechanical forces. Single core cable is not permissible to lay in magnetic duct |
| VLV | Aluminium conductor ,PVC insulated ,PVC sheathed power cable |
| VY | Copper conductor, PVC insulated, PE sheathed power cable |
| VLY | Aluminium conductor ,PVC insulated ,PE sheathed power cable |
| VV22 | Copper conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable | For laying indoors, in cable trench or direct in ground ,able to bear external mechanical forces, but unable to bear pulling force |
| VLV22 | Aluminium conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable |
| VV23 | Copper conductor ,PVC insualted ,steel tape armoured ,PE sheathed power cable |
| VLV23 | Alunminium conductor ,PVC insulated ,steel tape armoured ,PE sheathed power cable |
| VV32 | Copper conductor, PVC insulated, steel wire armoured,PVC insulated power cable
| For laying indoors, in cable or direct in ground ,able to bear external mechanical forces, but unable to bear large pulling forces |
| VLV32 | Aluminium conductor, PVC insulated ,steel tape armoured ,PVC sheathed power cable |
| VV33 | Copper conductor, PVC insulated steel wire armoured , PE sheathed power cable |
| VLV33 | Aluminium conductor , PVC insulated , streel wire armoured ,PE sheathed power cable |
| Note: The armoured single core cables is only used for D.C.system. As for A.C.system,non-magnetic armored material should be applied |
4. Nominal Cross-sectional Areas:
1.5 mm2 , 2.5 mm2 ,4 mm2 , 6 mm2 , 10 mm2 , 16 mm2 ,25 mm2 , 35 mm2 , 50 mm2 ,70 mm2 , 95 mm2 ,120 mm2 ,150 mm2 ,185 mm2 ,240 mm2 ,300 mm2 400 mm2 500 mm2 630 mm2 800 mm2
5. Production Range:
single core cable from 1.5 mm2 to 800 mm2,muli-core cable from 1.5 mm2 to 400 mm2
6. Operating Characteristics:
Rated power-frequency voltage u0/u:0.6/1 KV
Max permissible continuous operating temperature of conductor 70
Max short-circuit temperature of the conductor shall not exceed (Max 5 seconds duration): cross-section of conductor 300 mm2
The ambient temperature under installations should not be below 0
The bending radius of single core cable should not be less than 20 times of the cable diameter ,the bending radius of multi-core cable should not be less than 15 times of the cable diameter.
Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.

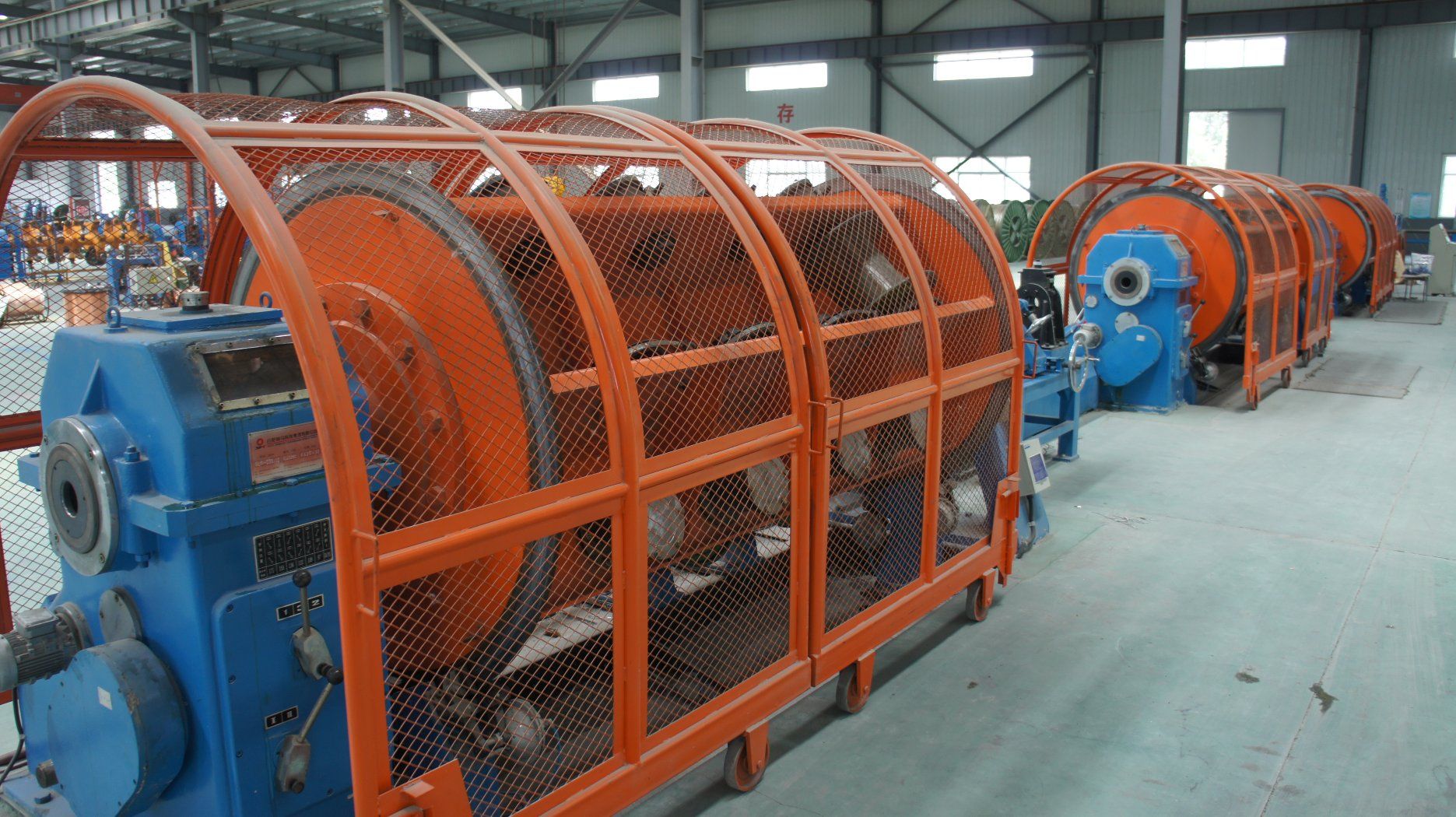

Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.
Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).
Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
