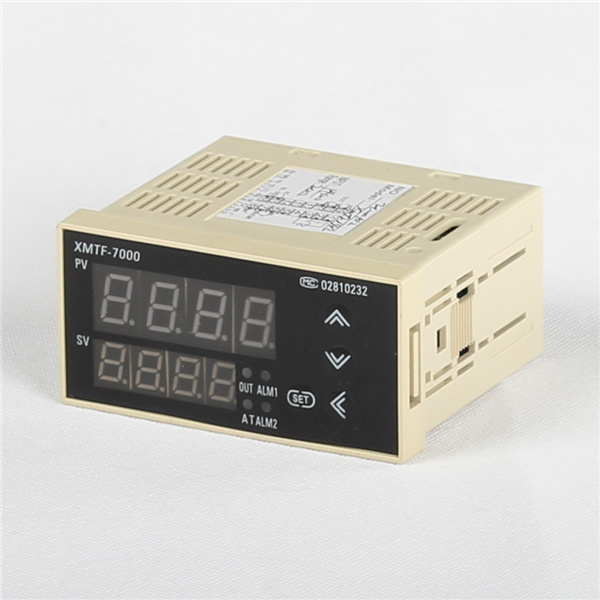

4-Digit Digital Temperature Controller for Packing (XMTF-7401T)

Name: 4-Digit Digital Temperature Controller for Packing (XMTF-7401T)
Brand: all-electronics-online.com
SKU: 692974442
Availability: InStock
Rating: 4.3 (71 reviews)

Price:	US $ 22/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	XMTF-7401T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

I.Survey:
XMTF/G-7401T intellectual ability temperature regulator series controlled by single chip,ON/OFF

control and PID control, besides, it has time function, you can adjust time unit minute and second.

they are widely used in the automatic control system of the temperature, chemical, ceramics, light,

metal, petrochemical and heat treatment industry.

II.Main technical specification:
Input::  J

Range:0~250ºC

Basic deviation:±0.5%F.S±1B

Cold end compensating deviation:≤±2.0ºC

Sampling cycle:0.5S

Control cycle: relay output 2~120s and can be adjusted

Relay output contact capacity: AC220V/5A(resistance load)

Power: AC85V~242V(switching supply, 50/60Hz,or the other special request.

Working condition: temperature 0~50.0ºC, relative humidity≤85% RH, without corrode and strong electric radiation.

Size and Installation hole(mm):XMTG:48×48×110     44×44

XMTF:96×48×85      92×44

Yuyao Gongyi Meter Co., Ltd And Its Subsidiary, Yuyao Changjiang Temperature Meter

Factory, Have Been Devoting Themselves To The Development And manufacturing Of

Industrial Process Automation Controller Instruments Since 1995. Through Decades Of

Improvement, Gongyi Now Is A Top One Chinese Instrument Manufacturer, Claiming A

Large Domestic And Overseas Market Share, sales of CJ temperature controller.

Main products: Temperature controller, humidity controller, electrical instrument, time relay, paperless recorder, silicon-controller, voltage regulator and all kinds of temperature sensor, humidity sensor, temperature transmitter and safety barrier. All the instruments have the function to communicate with computer, and provide the computer industrial control interface. (DCS System)

"CJ" series Temperature Meter has been ISO9001-2008 quality system' S grant, CE and kinds of certification, and has international facture calculate appliance' S license ( CMC 02810232 )

Welcome to our factory.
