| Prod Model: |
Dual USB Socket+Voltmeter+Power Socket+ switch |
| Brand Name: |
Maiyu |
| Power Input: |
DC 12V-24V |
| USB Socket I Power Output: |
DC 5V 1A |
| USB Socket II Power Output 2: |
DC 5V 2.1A |
| Output: |
5V 3.1A DC(Total Waterproof USB Cap |
| Material: |
ABS |
| Approvals: |
Ce, RoHS |
| USB Socket: |
Approx. 2.9 * 4cm (Screw Diameter * Height) |
| Power Socket Dimension: |
Approx. 2.9 * 4cm (Screw Diameter * Height) |
| On-off Button Switch: |
Approx. 2.9 * 4cm (Screw Diameter * Height) |
| Usage: |
Electrical Appliance |
| Standard: |
Standard |
| Lamp: |
With Lamp |
| Color: |
Black |
| Certification: |
CE |
| Condition: |
New |
Product Description
Features:
100% DIY.
Four Hole Panel Base.

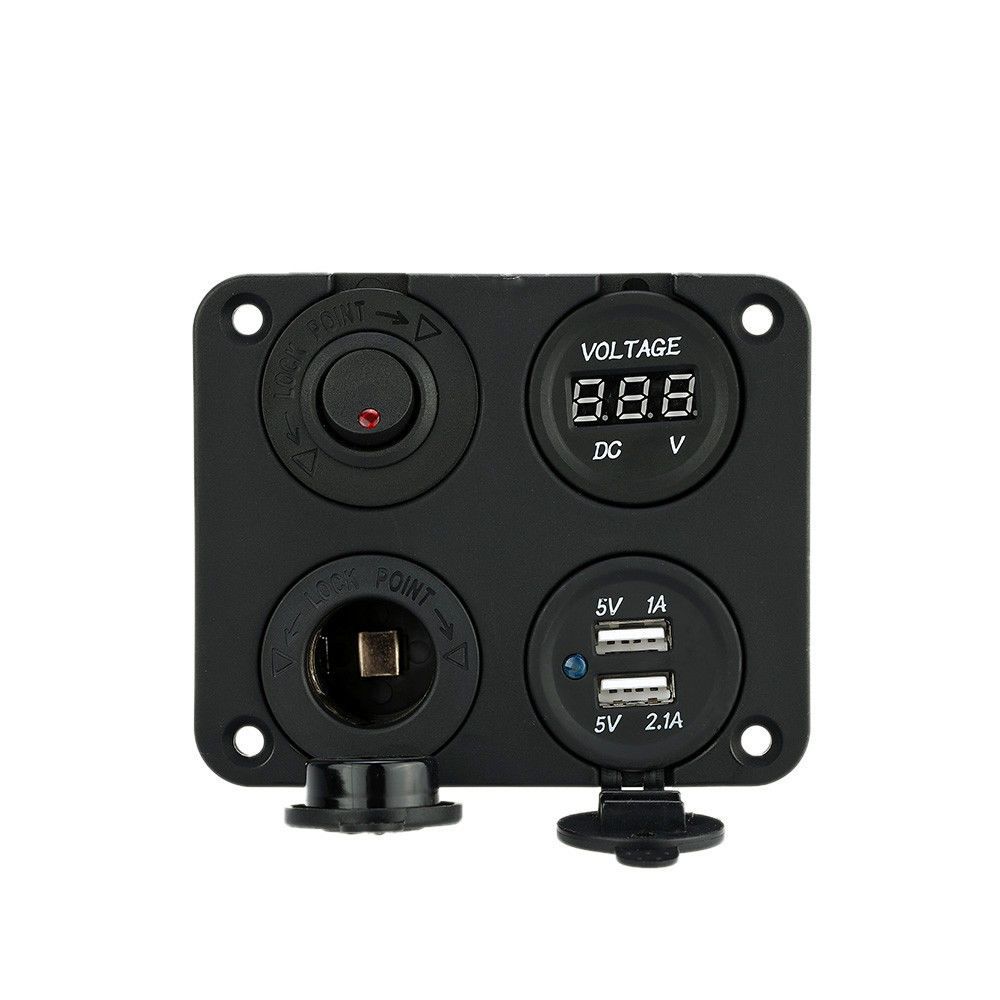

With Dual USB Socket + Voltmeter Meter + Power Socket + ON-OFF Button Switch.
Small size and excellent performance.
Easy to install, convenient to use.
Widely used for car, truck, motorcycle, for ATV and boat, etc.
Specifications:
Color: Black
Material: ABS
Voltmeter socket dimension: Approx. 2.8 * 1.6cm (Screw Diameter * Height)
USB socket dimension: Approx. 2.9 * 4cm (Screw Diameter * Height)
Power socket dimension: Approx. 2.9 * 4cm (Screw Diameter * Height)
ON-OFF Button Switch: Approx. 2.9 * 4cm (Screw Diameter * Height)
Four hole panel dimension: Approx. 10.5 * 8.7 * 0.5cm (L * W * H)
Package Size: 12 * 11 * 4.5cm / 4.7 * 4.3 * 1.8in
Package Weight: 120g / 4.2oz
This listing is for a Voltmeter, 3.1 Amp dual USB charger, 12 volt accessory socket, Illuminated SPST switch and a quad mounting plate, Interconnecting jumper wires and mounting screws.
Daisychain jumper wires when combined with the switch allow you to connect up the elements and amke one connection to your battery.
Marine Grade 12 Volt Power Socket
For Motorbike Car/Boat/ATV/UTV/Camper/Caravans/ Travel Trailer etc
Specifically designed for marine and motorcycle applications
UV stabilized nylon housing with rubber splash proof tight fitting front cap
2 pole nickel plated brass terminal connectors. 0.250 male spade type.
Twist-and-Lock locking socket, allows a suitable power plug (not included) to lock into place. Works wth all 12 volt accessory plugs.
Rated for 15 amps at 12 volts peak 20 amps. draws no power when not in uses.
Dual USB Charger
Comes with front cap and heavy duty construction.
UV Nylon Body.
Suitable for interior or exterior use.
Suitable for charging GPS, IPhone, IPod, Mobile Phones and other digital devices
Specification:
2 port USB Socket
Waterproof Design
Power Input: DC 12V-24V
USB Socket I Power Output:DC 5V 1A
USB Socket II Power Output: DC 5V 2.1A
Output: 5V 3.1A DC(Total
Waterproof USB Cap
DC Voltmeter
Display: segment LED digital tube, lamp display is blue, red available upon request.
Monitors the state of your battery between full charged and discharged
Can indicate a poor or bad charging system. Tells whether your battery is holding a charge or not
The meter has easy to read LED segments and connect to your 12 volt system.
The meter draws nominally 10 ma. and the range is 0-35 vdc.
The switch
Splash proof front and back. Blue (Red available upon request) Illuminated Waterproof Rocker Switch -SPST. Nylon threaded switch housing mount in a 1-1/8" hole. Can be mounted in panels or dashboards up to 1-1/4" thick with the retaining nut and in panels of unlimited thickness with the mounting plate. Rated for 16 amps at 12 volts. IP rating 63. Has male ¼" crimp style disconnect terminals. Illumination is low intensity for easier night vision. Three wire connection:
Black / Green wire goes to negative 12 volt power source.
Yellow wire goes to one side of the load being switched.
Red /Brown wire goes the positive side of the load being switched.
The quad plate
The four devices mount in individual 1-1/8" holes, in panels of unlimited thickness, an optional nylon retaining nut can be used to holds the devices in place on panels of less than 1-1/2" thick. See Drilling template for mounting dimensions.
The mounting plate fits over the front of the devices to hold them against panel or dashboard. Held in place by four black screws included.
