4 Layer Impedance Contro PCB Prototype RO4003c Mixed with Fr-4 Microwave PCB Board Applied in Balanced Amplifier
| Price: |
US $ 0.05-0.21/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Board Thickness: |
1.6mm |
| Copper Thickness: |
1oz |
| Material Type: |
Fr4 |
| Surface Treatment: |
HASL Lead Free |
| Solder Mask: |
Green, Red, Blue, Black |
| Silk Screen Color: |
White |
| Board Layer: |
1-50 |
| Shipping Type: |
DHL, UPS, TNT, EMS, FedEx etc |
| Packing Type: |
Carton + Vacuum |
| Lead Time: |
5-7 Days |
| Type: |
Rigid Circuit Board |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V1 |
| Base Material: |
Fr4 |
| Brand: |
Fastline |
| Dielectric: |
Rogers |
Product Description
Product Description

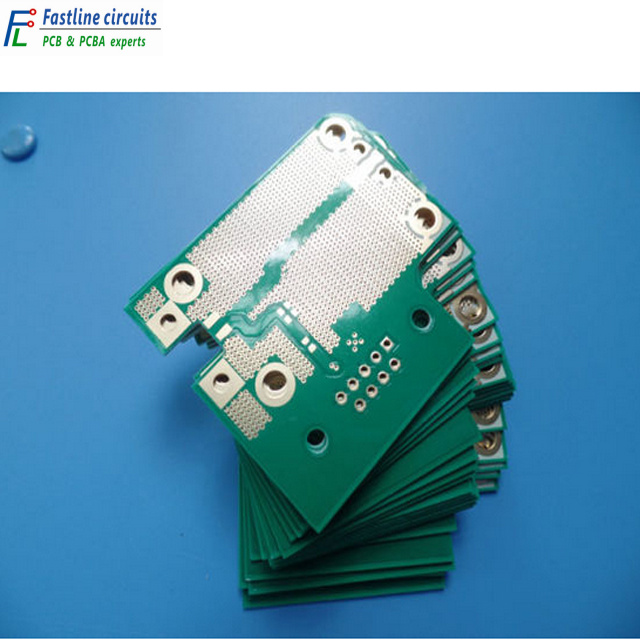

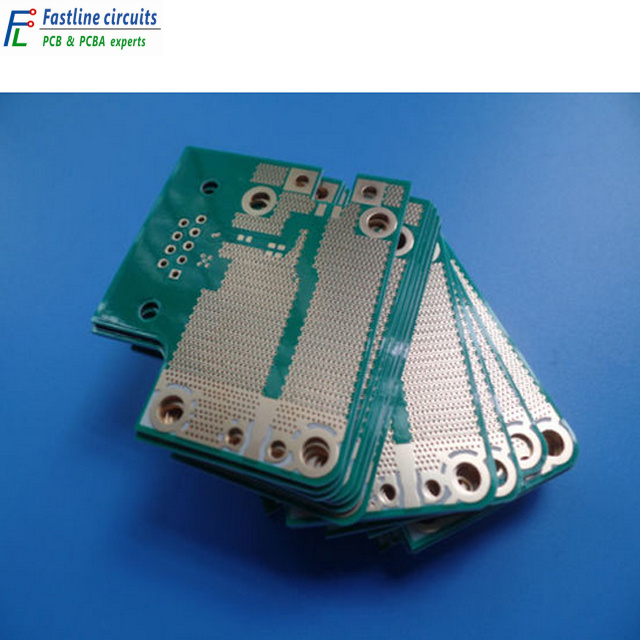

4 Layer Impedance Contro PCB Prototype RO4003C Mixed With FR-4 Microwave PCB Board Applied In Balanced Amplifier
Commodity IntroductionThis is a type of RO4003C and FR-4 mixed PCB for the application of Balanced Amplifier. It's a
4 layer board at 1.6mm thick. The base laminate is from Rogers Corp. and ITEQ. Solder mask
and silkscreen from Nanya and Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerb
-er data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 52 x 39mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 4 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP layer |
| RO4003C 12mil Er 3.38 |
| copper ------- 18um(0.5oz) MidLayer 1 |
| FR-4 1.0mm |
| copper ------- 18um(0.5oz) MidLayer 2 |
| RO4003C 12mil Er 3.38 |
| copper ------- 35um(1oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4mil/4mil |
| Minimum / Maximum Holes: | 0.3/0.5mm |
| Number of Different Holes: | 3 |
| Number of Drill Holes: | 1521 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | Differential pairs impedance control, Layer 3 ,
4mil / 4mil , 91 ohm+/-10%, Single trace
impedance control, Layer 4, 6mil, 49ohm+/-10% |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-180 TG>170, er<5.4. RO4003C 12mil |
| Final foil external: | 1.5oz |
| Final foil internal: | 0.5oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (21.5%) 2 micoinch over
100 microinch nickel |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, LP-4G G-05, Nanya supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Balanced amplifier, Dsl Modems
ADSL Router
3G Modem
Gsm Alarm
AC To DC Converter |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Microsection Hole Wall (um)| Hole Wall Cu Thickness | ≥20 um | Hole Wall Cu Roughness | ≤25.4 um |
| NO. | A | B | C | D | E | F | AVE |
| 1 | 22.800 | 22.300 | 23.700 | 23.700 | 22.300 | 24.500 | 23.000 |
| 2 | 27.000 | 22.300 | 22.500 | 22.500 | 22.500 | 22.600 | 23.600 |
| 3 | 23.000 | 22.300 | 27.000 | 27.000 | 22.300 | 22.800 | 23.400 |
| NO. | Required Dimension (toerance) | Actual dimension |
| 1 | 97.00 | ±0.15 | 97.02 | 97.01 | 97.01 | 97.02 |
| 2 | 100.00 | ±0.15 | 100.02 | 100.01 | 99.99 | 100.01 |
| NO. | Requerment Dimension (tolerance) | PTH/NPT | Actual dimension |
| 1 | 0.250 | ±0.076 | Y | via | via | via | via |
| 2 | 0.406 | ±0.076 | Y | via | via | via | via |
| 3 | 3.174 | ±0.076 | Y | 3.200 | 3.175 | 3.175 | 3.200 |
Our service: | PCB capability and services: |
1. Single-sided, double side & multi-layer PCB. FPC. Flex Rigid PCB with competitive price,
good quality and excellent service. |
| 2. CEM-1, CEM-3 FR-4, FR-4 High TG, Aluminum base material, Polyimide, etc. |
| 3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment. |
| 4. Quantities range from sample to mass order |
| 5. 100% E-Test |
| SMT(Surface Mounting technology),DIP. |
| 1. Material Sourcing Service |
| 2. SMT assembly and Through hole components insertion |
| 3.100% AOI testing |
| 4. IC pre-programming / Burning on-line |
| 5.ICT testing |
| 6.Function testing as requested |
| 7.Complete Unit assembly (which including plastics, metal box, Coil, cable inside etc) |
| 8.Conformal coating |
| 9.OEM/ODM also welcomed |
Web: www.fastlinepcb.com
Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.
And provides "PCB One-stop PCB solution" to meet customers' diverse demands.
Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.
Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
