| Prod Model: |
Rigao-06 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Copper Thickness: |
Rigid:0.5-12 Oz Flex:18-105um |
| Board Thickness: |
Rigid: 1.6mm Flex:0.2mm |
| Min Hole Size: |
Rigid: 0.2mm Flex:0.05mm |
| Min Line Width: |
Rigid:0.1mm Flex:0.075mm |
| Min Line Space: |
Rigid:0.1mm Flex:0.075 |
| Layer Counts: |
2-10L |
| Surface Treatment: |
OSP, HASL Lead Free, Immersion Gold/Tin/Silver... |
| Solder Mask Color: |
Blue, White, Green, Red, Yellow |
| Testing: |
X-ray Inspection & Aoi Test |
| MOQ: |
1 PC |
| Dielectric: |
FR-4 |
Product Description

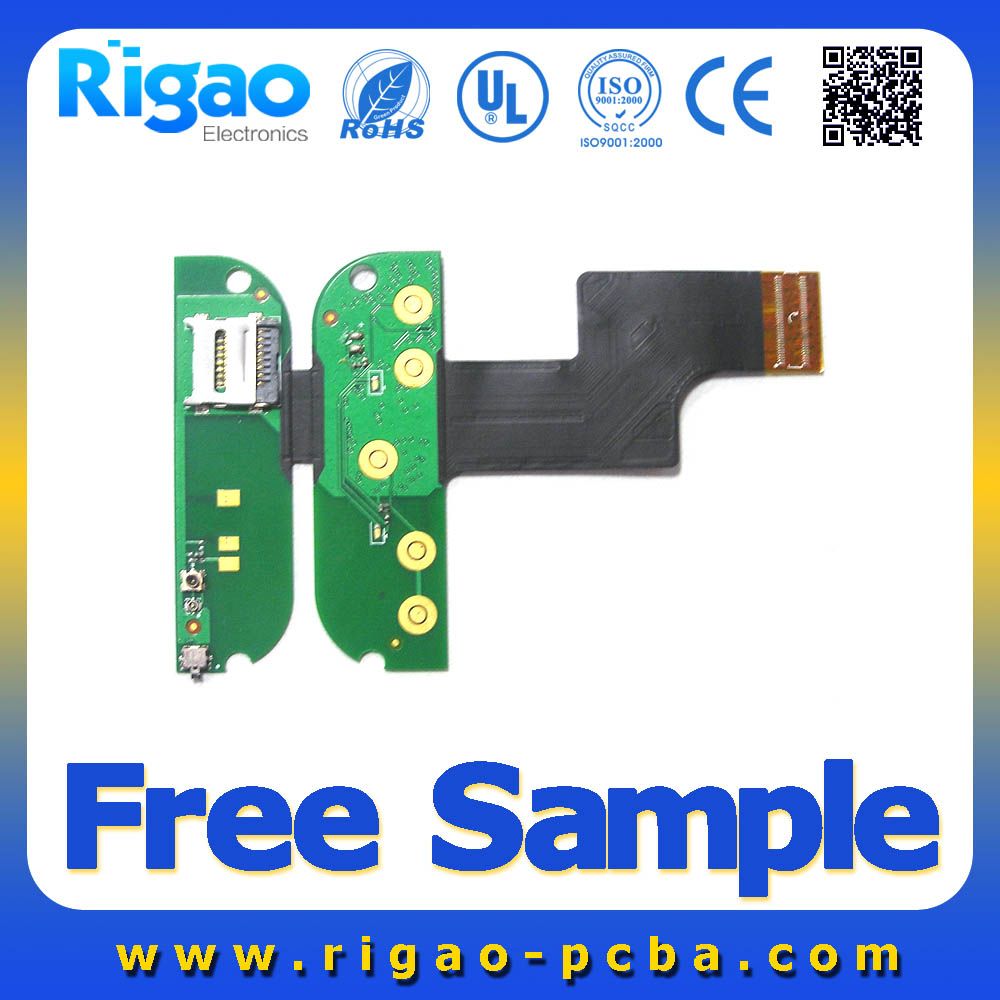

4 Layer Rigid-Flex PCB with High Quality PCB/PCBA
Rigao Electronics Co, . Ltd is an experienced PCB and PCBA manufacturer in Shenzhen, China.
After several years' developing and improving, our company establishes our main business in three
Principal areas, Printed Circuit Boards, PCB Assembly and Components Procurement.
From prototype to mass production, we are able to gurantee a complete service with technical
Back up, offering a cost advantage and continuity of supply.
| Rigid PCB Capability |
| No. | Item | Capability |
| 1 | Layer Count | 1-30Layers |
| 2 | HDI Type | 1+N+1, 2+N+2 |
| 3 | Material | CEM3, FR-4, Halogen Free, Aluminum-based, Teflon,Rogers, etc |
| 4 | Board thickness | 0.2~5.0mm |
| 5 | Board Size | Max | 600*1000mm (24"x40") |
| Min | 30x50mm |
| 6 | Copper Thickness | Outer layer | 1oz~6oz |
| Inner layer | 0.5oz~5oz |
| 7 | Min. Line Width/Space | 4/4mil(0.1/0.1mm) |
| 8 | Finished Hole size | Mechanical | 0.20~6.30mm |
| Laser | 5mil, 6mil |
| 9 | Blind/buried via(Mechanical) | | 0.2mm (min) |
| 10 | Aspect Ratio | 10:1 |
| 11 | Hole Dia.Tolerance | PTH | ±0.075mm(3mil) |
| NPTH | ±0.05mm (2mil) |
| 12 | Hole Position Tolerance | ±0.05mm (2mil) |
| 13 | Bow & Twist | ≤0.75% |
| 14 | Peel strength | 1.4N/mm |
| 15 | Thermal stress | 288 degrees centigrade & 20 Sec |
| 16 | Test Voltage | 50-300V |
| 17 | Soldermask color | Green, Red, Blue, Black, White,Yellow |
| 18 | Outline Tolerance | ±0.10mm (4mil) |
| 19 | Surface Finish | HASL, Lead free HASL, Immersion Gold/Tin/Silver, OSP, Flash Gold, Gold fingers, Plating Hard Gold, Carbon lnk, Peelable mask |
Our PCBA capability and services: SMT/THT/DIP.
1. Component Purchasing Service
2. SMT assembly and Through hole components insertion
3. IC pre-programming / Burning on-line
4. Function testing as requested
5. Complete Unit assembly (which including plastics, metal box, Coil, cable inside etc)
6. Packing design
| Type of PCB Assembly | SMT, Thru-hole,COB |
| SMT | Position accuracy:20 um |
| Components size:0.4×0.2mm(01005) _130×79mm,Flip-CHIP,QFP,BGA,POP |
| Max. component height::25mm |
| Max. PCB size:680×500mm |
| Min. PCB size:no limited |
| PCB thickness:0.3 to 7mm |
| Wave Solder | Max. PCB width:450mm |
| Min. PCB width: no limited |
| Component height:Top 120mm/Bot 15mm |
| Sweat-Solder | Metal type :part, whole, inlay, sidestep |
| Metal material:Copper , Aluminum |
| Surface Finish:plating Au, plating sliver , plating Sn |
| Air bladder rate:less than20% |
| Supporting: | Software burning and Function Testing |
| Testing | X-RAY Inspection & AOI Test, ICT,Probe flying,burn-in,function test,temperature cycling |
| Lead Time | 12days-15days |
| File Fomat | Bill of Materials,Gerber Files, Pick-N-Place File (XYRS),PCB,Altium, EDA etc |
PCB/PCBA Description:
1. Singlesided PCB, double side PCB & multilayer PCB with competitive price, good quality and excellent service.
2. FR-4, , FR-4 High TG, CEM-1, CEM-3, Aluminum base material.
3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.
4. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
5. Quantities range from prototype to medium and batch production.
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
