| Prod Model: |
Cat5e |
| Conductor Size: |
0.40- 0.51mm |
| Connector: |
RJ45 8p8c |
| Length And Color: |
as Your Request |
| Number Of Conductor: |
8 |
| Insulation: |
High-Density Polythene(HDPE) |
| Insulation Thickness: |
1.02mm |
| Application: |
LAN Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Type: |
Cat 5 |
| Certification: |
ISO |
| Model: |
Cat5e |
| Brand: |
Upward |
Product Description
1). We are manufaturing and accept customized order as well as grey hair company.
2). Our value message is " QUALITY IS OUR LIFE, WITHOUT QUALITY, WITHOUT US" .
3). We are honest deeler. If you do business with us YOUR BUSINESS IS SAFE, YOUR MONEY IS SAVE, YOUR PRODUCT OUT LOOK IS GORGEOUS.
4.) Our core competencis is Network Patch Cord.
5). We accept samll order and welcome to order samples.
Product Description

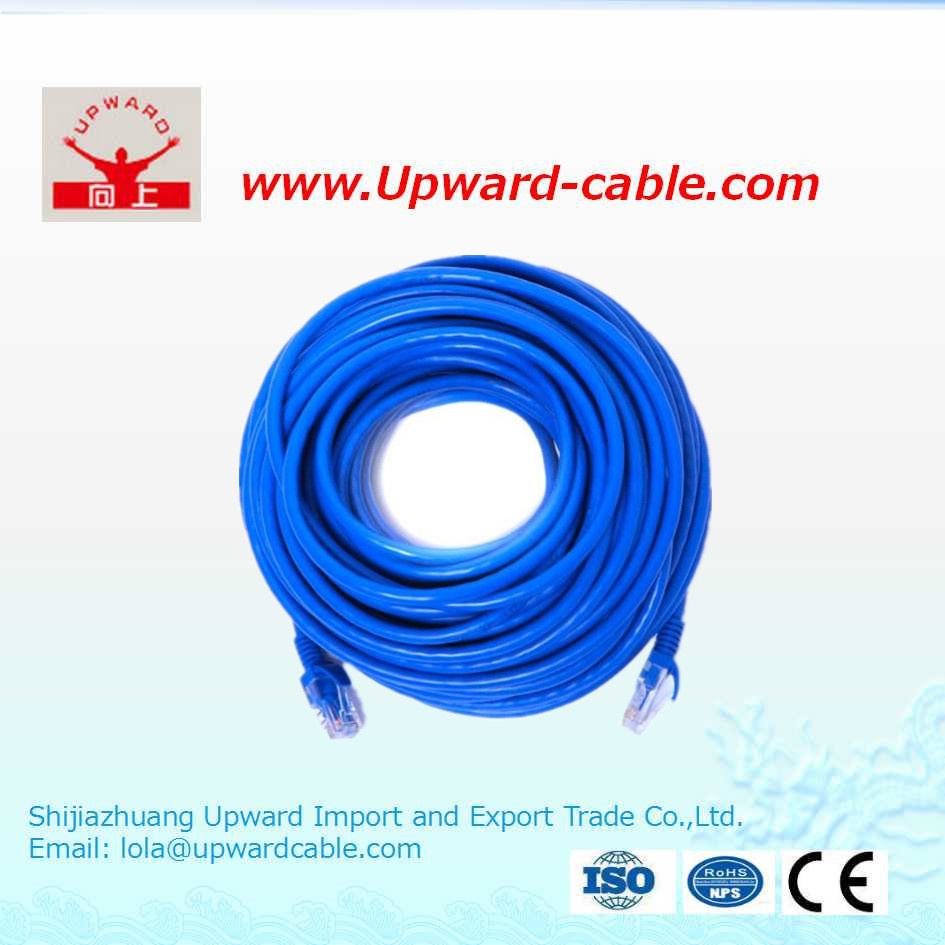

OEM high quality UTP cat5e lan cable 4pr 24awg computer cable 305m
| | test passed 305m/box high quality high speed indoor cat6 23awg utp |
| Conductor | BC/CCA (optional) |
| Version | CAT5E/CAT6/CAT6A/CAT7 |
| Shielding | UTP/FTP/SFTP(SSTP) |
| Insulation | HDPE |
| Jacket | PVC/PE |
| Number Of Conductor | 4Pairs |
| AWG | 24/26/28 |
| Data transfer rate | 10G/1000Base-T |
| Rated temperature | 75 ° C |
| Certificates | CE, RoHS, Fluke test passed |
| Application | Computer and other Internet devices |
| Packaging | PE bag/Blister bag/Carton box etc |
| Customizing | Color of PVC jacket, words on cable & packaging customized on customers' request |
| Model | Cat5e Cat6 Outdoor Cable |
| Conductor Size | Solid: 24AWG, 25AWG,26AWG |
| Stranded 7x0.12mm/7x0.16mm/7x0.20mm |
| Conductor Material | BC/CCU/CCA/OFC/CCS |
| Nuber Of Conductor | 2P, 4P, 8P, 10P, 25P,32P, 50P, 100P, 200P |
| Shiled | UTP/FTP/STP/SFTP /SSTP |
| Flammability Grade: | CMX,CM,MP,CMG,MPG,CMR,MPR |
| Indoor / Outdoor | Single jacket / Double jacket |
| Insulation Material | PE , HDPE |
| Insulation Thickness | 0.55mm |
| Number of pairs: 4 pairs | Pair1: Orange/White Orange
Pair2: Blue/ White Blue
Pair3: Green/ White Green
Pair4: Brown/White Brown |
| Jacket Material | PVC, ROHS PVC, LSZH PVC |
| Jacket Thickness | 0.92-0.95mm |
| DC Resistance(Max.) | 9.5Ω/100m |
| DC Resistance Imbalance | 2.50% |
| Working Capacitance(Max.) | 5.4nF/100m |
| Insulation Resistance | 10000MΩ.km |
| Transmission Velocity | 65% |
| Operating Temperation | -20 °C - +75 °C |
| PVC Jacket Color | As client's request. |
| Print Words On Cable | CAT5E 4P 23AWG VERIFIED TO
EIA/TIA 568B.ISO/IEC 11801 EN501
or clients' request. |
Upward Cable specializes in design and manufacture of various kinds of wires and cables. The main products are low voltage cable, high voltage cable, power cable, aluminum alloy cable, fire flame retardant cable, fire resistant cable and high temperature cable.

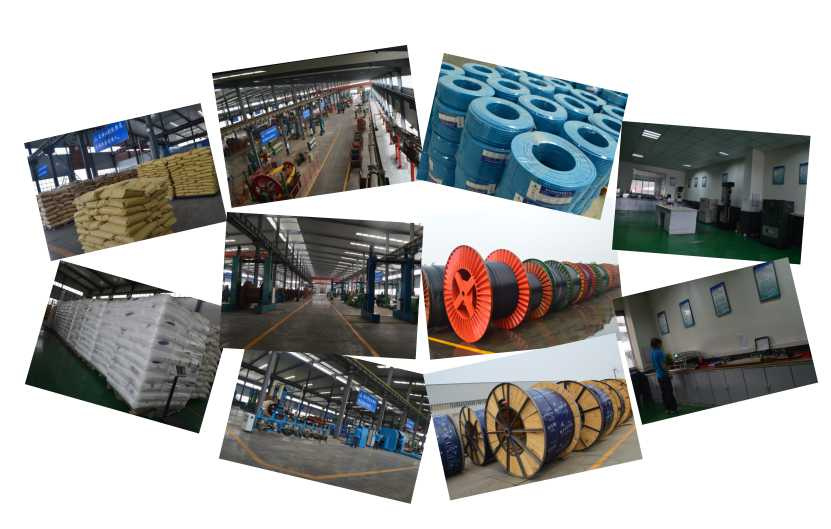

The workshop area is 260000 sq. M. There are 430 staff members in the factory, including 20 experienced engineers, 38 lab assistants and 372 workers. The capital asset reached USD30, 000, 000. We have various advance product lines and equipment, including 125 sets for producing use and 35 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We could offer OEM and ODM service for the special cutomer. The annual product capacity of cables and wires is more than 20, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Hebei Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries.
