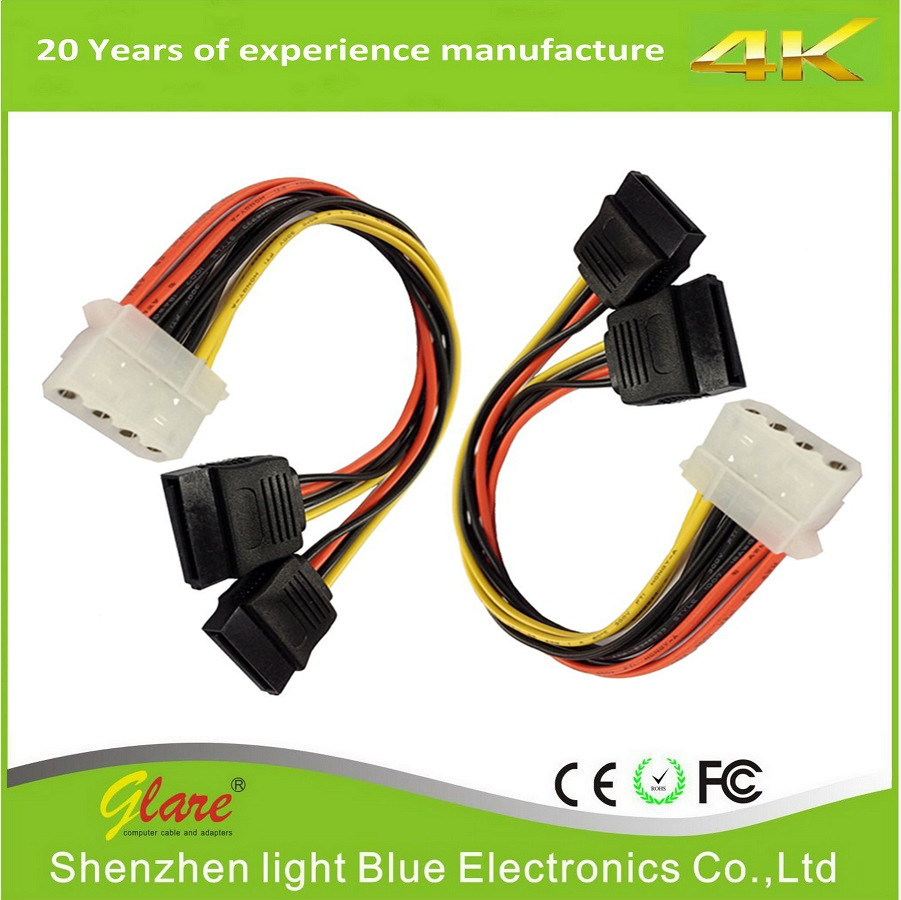

4 Pin Molex to SATA Power Cable Adapter

Name: 4 Pin Molex to SATA Power Cable Adapter
Brand: all-electronics-online.com
SKU: 815608945
Availability: InStock
Rating: 4.3 (120 reviews)

Price:	US $ 3/Piece
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	sata power cable
Warranty:	12months
Packing:	Box
Support:	1080P
Item:	4 Pin Molex to SATA Power Cable Adapter
Application:	Monitor
Color:	Black
Type:	Twisted Pair
Certification:	UL
Connector:	SATA
Species:	SATA
Brand:	Lbcable

Product Description

4 Pin Molex to SATA Power Cable Adapter

Features:

FLEXIBLE SATA POWER CABLE connects the latest Serial ATA hard drives or optical drives to a power supply with legacy Molex LP4 ports; Male to Female Molex to SATA cable with straight connectors is the perfect 6 inch length for internal cable management
COST-EFFECTIVE 3-PACK of hard drive power cables provides a spare or replacement SATA to Molex cable when upgrading your computer
IDEAL SOLUTION for the DIY computer builder or IT tech repair when installing new or replacement SATA hard drives or DVD drives to a power supply that only has Molex power ports
RECYCLE LEGACY EQUIPMENT to connect new SATA HDDs and optical drives to older power supplies with 4 pin Molex ports
COMPATIBLE with 5V SATA devices connecting to 12V ATX power supplies; Sample compatibility list includes Antec VP-450W Power Supply, ASUS 24x DVD-RS serial-ATA internal optical drive, ASUS DVD SATA Supermulti Burner, Coolmax 500W Power Supply, Cooler Master Elite 460W Power Supply, Crucial 256GB SATA 2.5" Internal SSD, EVGA 430W Power Supply, Intel 520 Series 120GB SATA 2.5" SSD, Kingston Digital 120GB 2.5" SSD, Kingston Digital 240GB SSDNow 2.5" SSD

1. PVC insulated power cables and XLPE insulated power cables adopt the following round and sector stranded conductors:

Nominal sectional Area	Min. number of monofilament in a conductor						20°c, DC, resistance≤Ω/km
	Non-compacted round		Compacted round		Sector		20°c, DC, resistance≤Ω/km
	Copper- core	Aluminum- core	Copper- core	Aluminum- core	Copper- core	Aluminum- core	Copper- core	Aluminum- core
10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800	7 7 7 7 19 19 19 37 37 37 61 61 61 61 91 91	7 7 7 7 19 19 19 37 37 37 61 61 61 61 91 91	6 6 6 6 6 12 15 18 18 30 34 34 53 53 53 53	- 6 6 6 6 12 15 15 15 30 30 30 53 53 53 53	- - 6 6 6 12 15 18 18 30 34 34 53 53 53 -	- - 6 6 6 12 15 15 15 30 30 30 53 53 53 -	1.83 1.15 0.727 0.524 0.387 0.268 0.193 0.153 0.124 0.0991 0.0754 0.0601 0.0470 0.0366 0.0283 0.0221	3.08 1.91 1.20 0.868 0.641 0.443 0.320 0.253 0.206 0.164 0.125 0.100 0.0778 0.0605 0.0469 0.0367

2. PVC and XLPE insulated Power cables:
Rated voltage: 0.6/1kv, 1.8/3kv, 3.6/6kv, 6kv/10kv, 8.7/10kv, 8.7/15kv, 12/20kv, 18/30kv, 21/35kv, 23/35kv.
Single-core cable: non-armored: 20D; armored: 15D
Multi-core cable: non-armored: 15D; armored: 12D

Operation characteristics

1) Rated power-frepuency voltage U0/U: 0.6/1kv (Um=1.2KV).

2) Max.admissible operating temperature of the conductor:90ºC.

3) Max. short-circurt temperature of conductor shall not exceed 250ºC.(5s maximum duration)

4) The ambient temperature under installation should not below 0ºC.

5) The bending radius of a single-core cable should not less than 20 times of the cable diameter. The bending radius of a three-core cable should not less than 15 times of the cable diameter.

Specifications:

SATA to power cable

1. SATA 15 pin to 4P power cable

2. Housing:PVC,LCP

3. Terminal:Phoshpor Bronze with gold plated

4. Signal Wire:UL2725 26/28 AWG,Tinned Copper SATA 7 pin to 4P power cable

Electrical

1. Hi-Pot Test:DC300V

2. Insulation Resistance:10M Ohms(min)

3. Contactor Resistance:1 Ohms(Max)

4. 100% Open Short and Miss Wire Test

Mechanic:

1. Insertion Force:45N Max

2. Withdrawal Force:15N Min

3. Operating Temperature:-25°C to +85°C

4. Transfer Rate:Supports 3.0Gbps

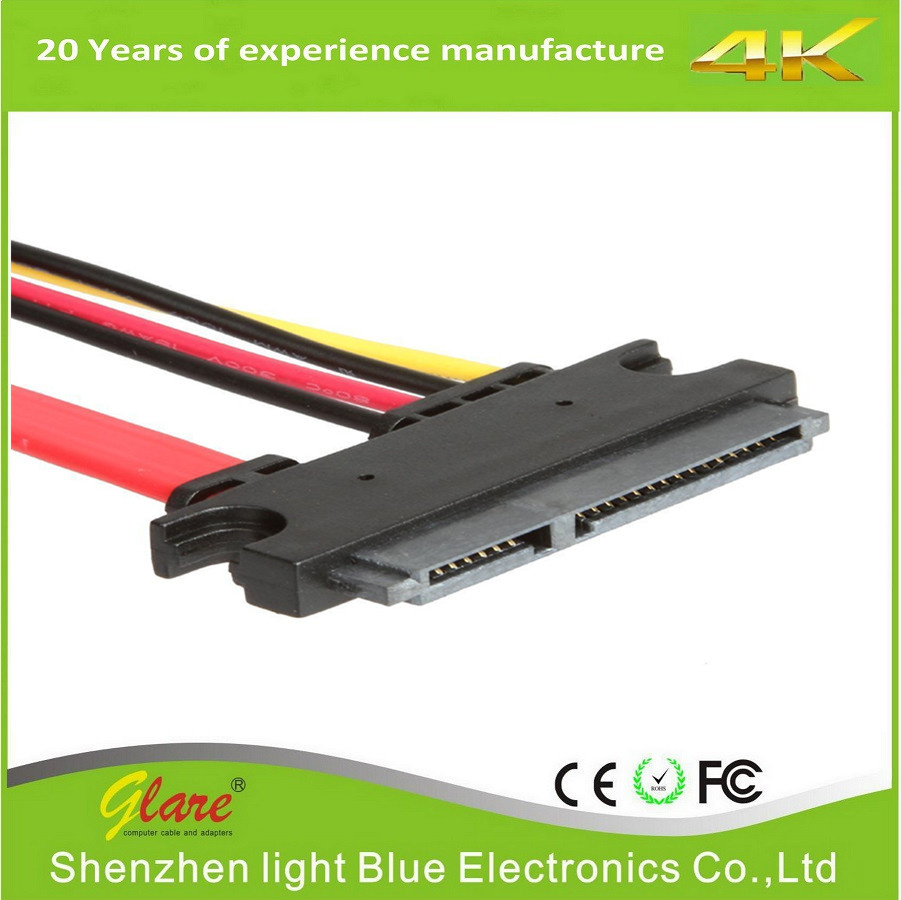

7P,7+6P,7+15P sata cable are available.The color ,specification and length can be customized
