Okonoff Science & Technology (Shanghai) Co., Ltd. >> 4-Pipe 0~10V AC Unit Room Thermostat (S600DF2)

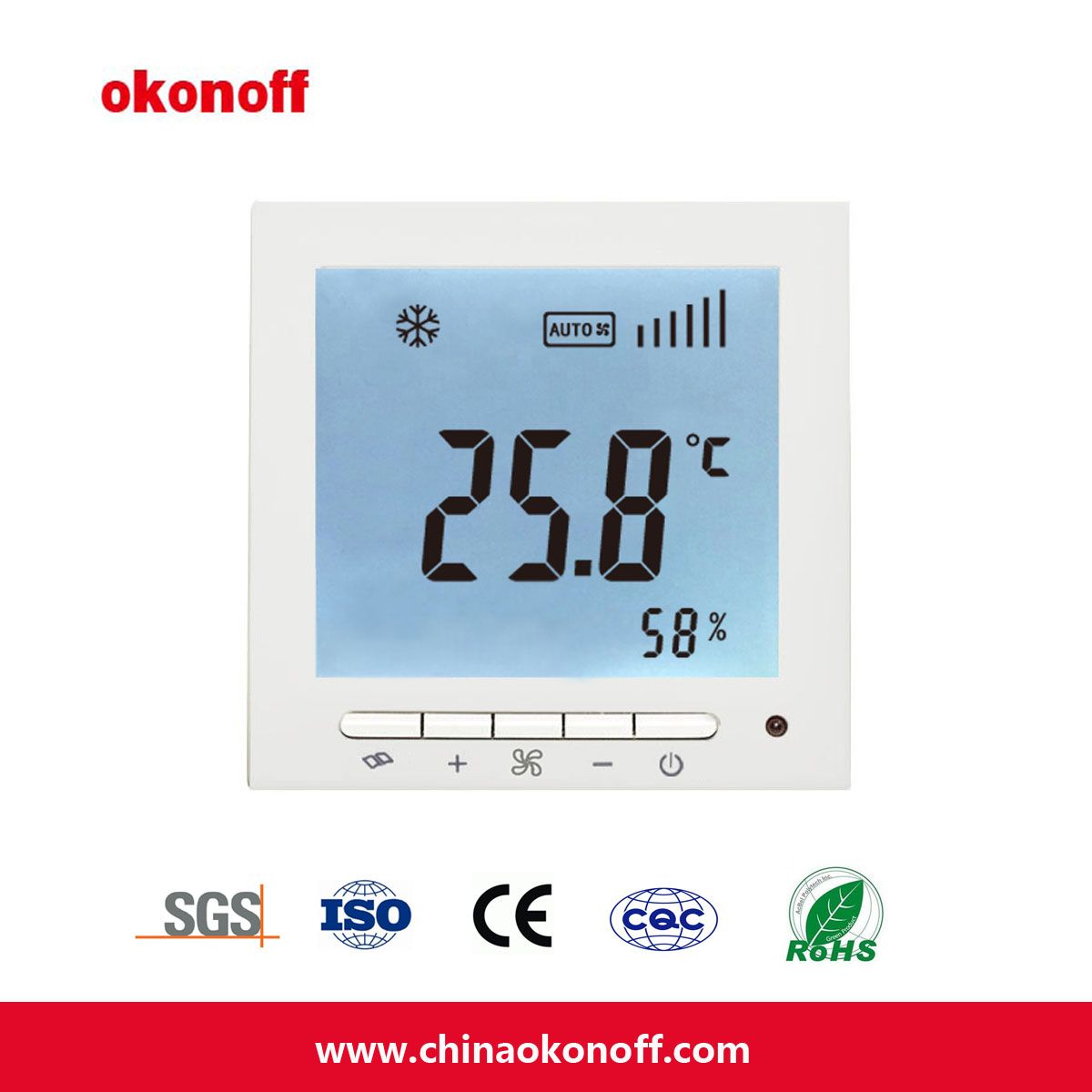

4-Pipe 0~10V AC Unit Room Thermostat (S600DF2)

4-Pipe 0~10V AC Unit Room Thermostat (S600DF2)
Price: Negotiable/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: S600DF2
Working Voltage: AC220V±10%
Power: <1W
Current Load: 3A ( Resistive Load )
Temperature Control Precision: ±0.5ºC
Working Environment: -10~60ºC
Shell Material: Flame Retardant PC
Temperature Control Range: 5~35ºC

Product Description

Feature:
1. LCD screen display, relay contact output
2. Manual (Stepless speed) or auto fan speed
  Manual (Five speed) or auto fan speed
3. RS485 communication, Modbus RTU protocol, baud rate: 4800
4. Key lock function (Via communication way to fulfill)
5. It has 0~10V speed signal and 10V switch signal. (It could control 0~10V fan coil unit. It could control 0~10V fan coil unit with 10V switch)
6. Internal sensor or External sensor to control temperature

Technical parameter:
Working voltage:AC220V+-10%
Power:<1W
Current load:3A ( resistive load )
Temperature control precision:+-0.5ºC
Storing environment temperature:-20~70ºC,
Relative humidity: RH<93%(Non-condensate)
Working environment:-10~60ºC
Shell material: Flame retardant PC
Dimension:86*86*40.5mm
Installation:86 type standard box

Model spec:

ModelDeviceThe way of temperature control0~10V10V switchFive speedStepless speed
S600D12-pipeInternal sensor
S600D22-pipeExternal sensor
S600D1S2-pipeInternal sensor
S600D2S2-pipeExternal sensor
S600DF14-pipeInternal sensor
S600DF24-pipeExternal sensor
S600DF1S4-pipeInternal sensor
S600DF2S4-pipeExternal sensor

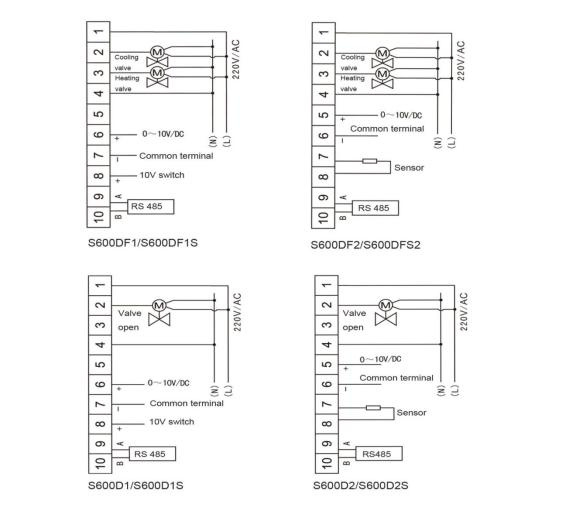

Wiring diagram:
