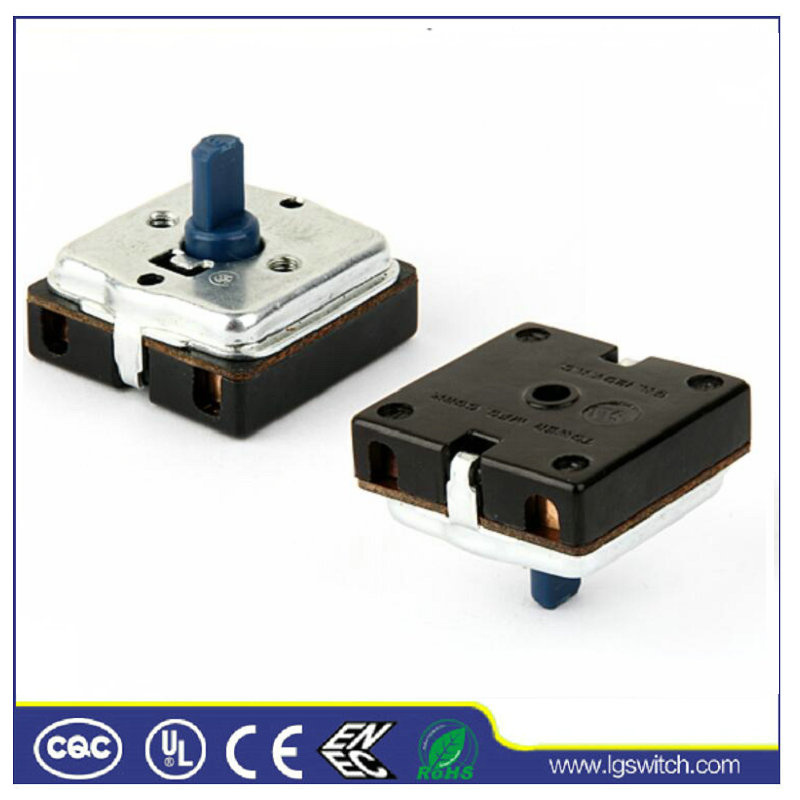

4 Pole 3 Way Rotary Switch Used in Fan Heater

Name: 4 Pole 3 Way Rotary Switch Used in Fan Heater
Brand: all-electronics-online.com
SKU: 705621092
Availability: InStock
Rating: 4.5 (96 reviews)

Price:	US $ 0.01-0.03/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	B3400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mechanical Life:	100000 Cycles
Max. Current:	13A
Max. Voltage:	250V AC
Temp(C):	105°c
Spcoa:	22-14AWG UL1015
Rotation Angle:	45
Apply To:	Oven, Electric Heater, Electric Cooker etc. High
Rotary Number:	Single Button
Usage:	Digital Products
Standard:	Standard
Structure:	Self-Locking
Operation:	Knob
Certification:	CQC,UL,TUV,CB
Condition:	New

Product Description

Specifications
B3400-413A   10(3)A  3 Position Rotary speed Switches

B3400-413A   10(3)A-250V AC 3 Position oven Rotary Switches

Rotary Switches with electrical rating:13A-120V AC, 10(3)A-250V AC,

B3400-413A   3 Position   Electric Cooker   Rotary Switches

B3400-413A Oven 3 Position Heater Rotary Switch
Rotary Switches with electrical rating:13A-120V AC, 10(3)A-250V AC, For Oven,

Rotary Switch

Technical Parameter

Electrical Rating	13A-120V AC, 10(3)A-250V
HZ	60/50
Load	Res/ Mot
Temp(C)	105°C
Pol/Thr	1/2 or M
PP/Circuit	--/A
Endur	10K
SPCOA	22-14AWG UL1015
Rotation Angle	45° Other available angle: 22.5°, 30°, 18 °, 60°, 90°
Assemble Way	1) #B3400-413A: Nut Mounted 2) #B3400-413B: Jockey for position 3) #B3400-413: Pair of mounting holes
Material:
Cover: Zinc plating Iron
Insulating piece: PF Grade:pfcp207(XPC)
Rotary:PA66 Flame rating: V-2 or V0 Temperature:130°C Grade: Dupont
Movable Contract: Copper
Terminals: Brass
Base: Bakelite Flame rating: V0 Temperature:130°C Grade: Dupont

Apply to:

Oven, Electric Heater, Electric Cooker etc. High-Power home appliances

Sample:

1. Free charge sample: Could provide(less than 10 PCS),freight collect

2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.

3. Samples payment term: T/T, PAYPAL, Western union

Quality Guarantee:

1.Strictly quality control before leave factory

2. Quality guarantee within one year

Advantage:

1.Low MOQ: 50~100PCS

2.New design Accepted: As your requirement

3.Good Service: Customer as God

4.Good Quality: Strict quality control and good reputation

5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)

Order Guide:

1. Inquiry-Professional quotation.

2. Confirm the price, lead time, packing requirement, payment term etc.

3. OMTER sales send the Proforma Invoice with OMTER seal.

4. Customer make the payment and send us Bank receipt.

5. Will inform client that we have got the payment, arrange the production & inform the estimated time.

6. After delivery will inform the tracking number and check the status for clients.

7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .

Dongguan Guanjun Electronic Technology Co., Ltd. Was established Taiwan in 1993. The factory in China mainland was established in 2007 and the HongKong office L&G ELECTRONICS Co., Ltd Was established in 2014. We turned into a manufacturer engaged in the R&D, manufacture and trading company of switches, Thermal protector, potentiometer and jacks.

Its leading products include switch products like Motor Thermal protector, power switch, rocker switch, trigger switch, micro switch, toggle switch, key switch and rotary switch, potentiometer etc.; And the jack/socket products like AC/DC jack, AV terminals, S-terminal and USB head and socket, etc.

The products are widely used for lighting decoration, toys, cold and hot fans, dust cleaner, vibrator, peripheral computer device and various video and audio products, electronic appliances, electronics, instrument and medical equipment.

After the development for a dozen of years, the company has turned into a corporate with powerful technology forces, self-contained production and testing equipment and complete quality assurance system; All operating procedures comply strictly with ISO9001 and ISO14000 Standards.

" It is our objective to innovate with science and technology, keep improving and launch sound services, We expecting the manufacturers and people from all walks of life for mutual refulgence.
