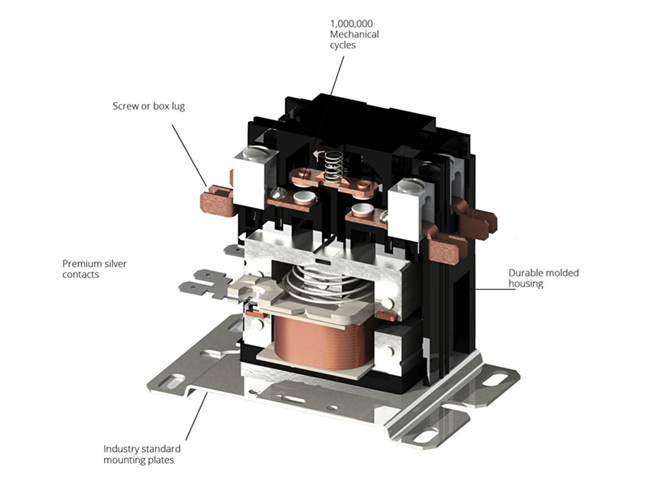

4 Poles 30 AMPS AC Contactor with High Quality

Name: 4 Poles 30 AMPS AC Contactor with High Quality
Brand: all-electronics-online.com
SKU: 819300675
Availability: InStock
Rating: 4.7 (24 reviews)

Price:	US $ 2.7-3.5/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

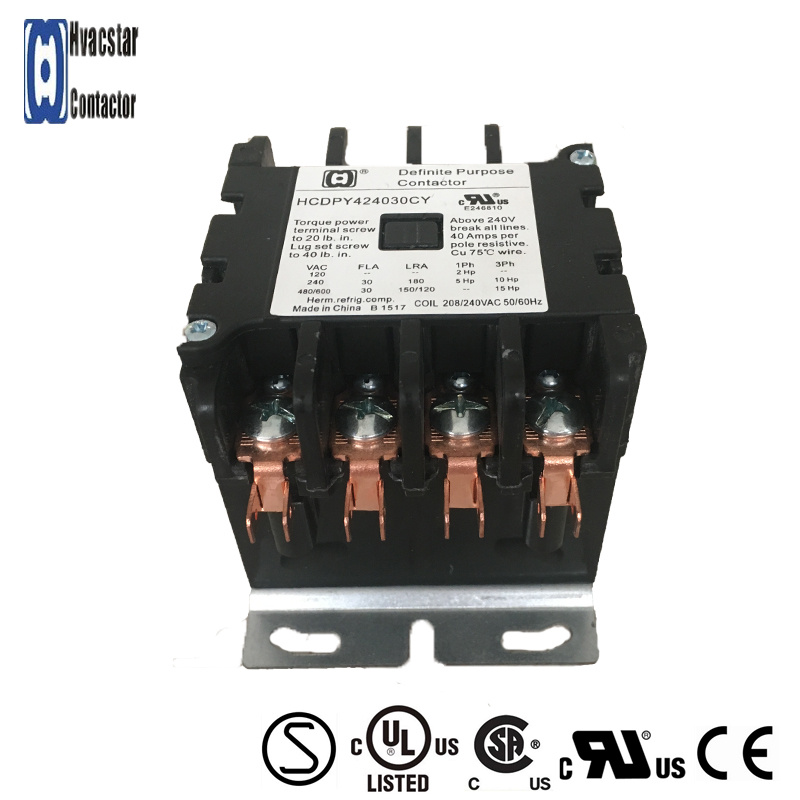

Prod Model:	HCDPY424030
Color:	Black
Certificate:	Ce, UL, CCC, S, CSA
Material:	High Arc-Resistant Phenolic Resin
Electrical Life:	1, 000, 000(AC3)
Mechanical Life:	10, 000
Frequency:	50/60Hz

Product Description

About Us
Mingguang Hecheng electrical Co.,LTD , is a master of manufacturing all Kinds of Contactors  (including DP Contactors,  LC1 series contactors ,  Founded in Mingguang City,
China, in 2005,  stepped  into the  HVAC industry  as  a reliable source .

Our  strongest domestic suppliers and our vast   experience  with  global  trading, allows  us to  bring  the most   innovative  and highest  quality  products available to our customers.

Specifications

FLA	30
Poles	4
Resistive Amps	40
Coil Voltage	208/240
Hertz	50/60
Locked Rotor Amps 240/480/600	180/150/120
Electrical Contact Ratings:20A-90A electrical coil ratings:24-600V life rating,100,000&250,000 cycle options.
Options:1,2,3,4 pole fits 24,120,240 and 480 VAC coils wide range of electrical ratings screw, box or pressure plate connections NEMA mounting base. NO/NC end switch kits.
Applications:Commonly used for Refrigeration, Air Conditioning and Heating. Also fits for Food service equipment, Vending machines, Compressors,Pumps, Cranes, Hoists,Welding machines,Power supplies,Lighting etc.

This Item Replaces

Mars	13011
Mars	13012
Siemens	42BF25AGBBR
	C25END430B
Hartland Controls	HCCY4XU02AT303

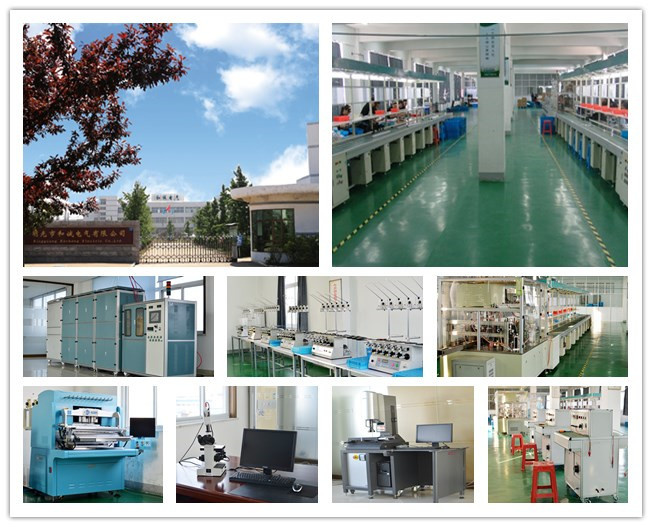

Workshop:

Certificates:

Contact Us:

Mr.ZHOU

M:+86 15397306728

24 hours online. Please feel free to contact me.

Mingguang Hecheng Electrical Co., Ltd., has been working on developing high quality Definite Purpose Contactor since estalished in 2004.We have experience in supplying to Hartland Controls, ABB Controls, Zettler Controls, Fasco, Packard Inc & Supco directly and indirectly.

From the business with the companies mentioned and the help from them, we've established a good process control system including Supplier Evaluation and Choice, Coiling Process& Inspection, General Assembly and Inspection, Packing and Delivery.With support from them and our rich Supply Chain Management (SCM) experiences, we are operating our business successfully.

We take care of all vital aspects so that our customers can focus on their customers.Our experienced engineers/inspectors are involved in all the important steps for quality control during production so that all our exported goods are perfectly in compliance to our customers' requirements.And all the members in our supply chains are selected carefully under our Supplier Evaluation Program established strictly according to ISO9001 system.

If you are interested, please try to contact us and take a try.We shall make you confident that this is the right company you would like to work with.
