| Prod Model: |
D1'~D8" |
| Type: |
Flat |
| Shape: |
Round |
| Material: |
4 Inch Mono Silicon Wafer |
| Coating: |
Polish |
Product Description
According your require, we can produce customized silicon wafers, no matter what diameter,
thickness or type. We expect to service you.
In addition, we have the stock of many kinds products.
Product Description
| Name: 4 Inch Prime Grade Low Resistivity CZ Si Wafer for Price |
| Size | 3"/4"/5"/6" |
| Growth method | CZ |
| Diameter | 76.2±0.3mm / 100±0.4mm / 125±0.5mm / 150±0.5mm |
| Orientation | <111>/<100> |
| Type | N/P |
| Dopant | P-type:Boron |
| N-type:Phos./As./Sb. |
| Purity | ≥11N(99.999999999%) |
| Oxygen Content | ≤18 New PPMA |
| Carborn Content | ≤1 New PPMA |
| Dislocation | None |
| Resistivity | ≥0.001Ω·cm |
| Thickness | ≥200um, or according to your Requirement |
| MOQ | 200pcs |
| Package | Packed in Polyethylene foam box,500pcs/box |
| Price | According to your specification,especially resistivity and thickness. |

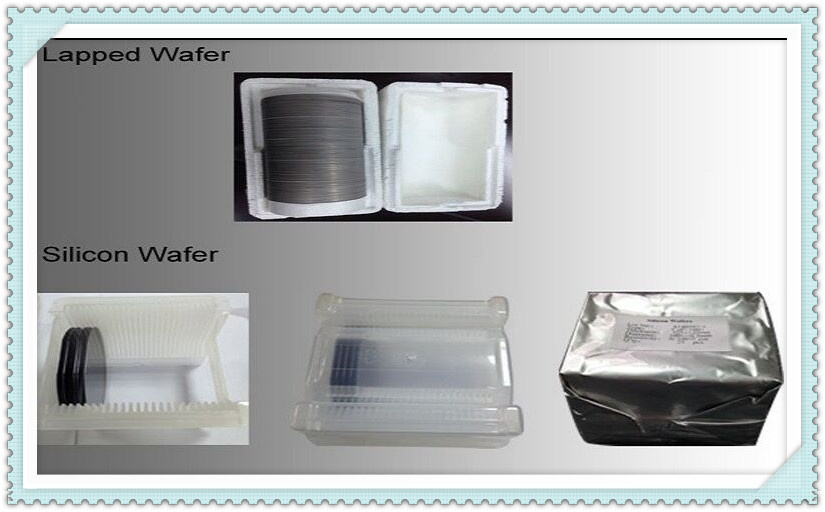

Packing

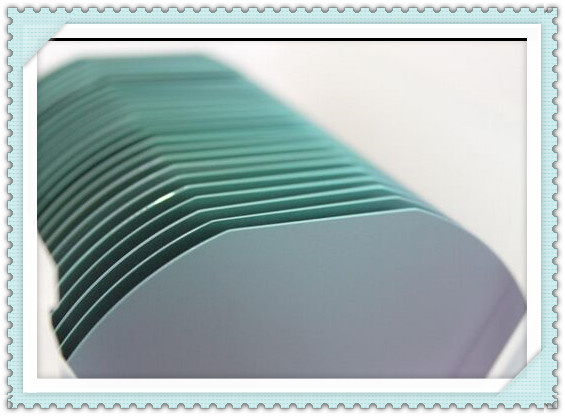

4" lapped wafer
Diameter: 100 -/+ 0.5mm
Orientation: <111> -/+ 0.5 and <100> -/+ 0.5
Flat width: 32.5 -/+ 2.5mm
Thickness: >=180μ M
THK deviation: -/+ 5μ M or -/+ 10μ M
TTV: <5μ M
Resistivity(Ω @m): 0.001-60 ohm-cm for both P&N type
RRG(C-6MM): ≤ 20%(N type), ≤ 10%(P type)
Oxygen Concent(ASTM-79): 20-36ppma
Carbon Concent: ≤ 1ppma, ≤ 5%
Qinhuangdao Intrinsic Crsytal Technology Co., Ltd offers a handful of standard 4" silicon wafer options, also referred to as 100mm silicon wafers, for our customer's urgent needs. These are considered stocking parts and ship from our shelf in San Jose, California and usually within the same day as the request.
As silicon wafer manufacturing technology has progressed, driven primarily by the needs of the integrated circuit "chip" manufacturers, silicon wafer sizes have gradually increased in size from 25mm silicon wafers to the current largest available diameter of 450mm silicon wafers. The larger the diameter of the silicon wafer, the larger the surface area and the more chips that can be manufactured from a single wafer. More chips per silicon wafer equals lower cost per chip for the chip maker.
As diameters have increased and the semiconductor industry has moved to the new larger diameters of silicon wafers, all of the major silicon manufacturers have ceased production of smaller diameter wafers. There are no longer any major silicon manufacturers in the world that are manufacturing 4" silicon wafers, also known as 100mm silicon wafers. This has caused a constriction of supply of 4" silicon wafers in the marketplace while creating opportunities for smaller secondary players to begin production, though not in the volumes that were manufactured in the past.
These events have conspired to make the sourcing of 4" silicon wafers a challenge yet these wafers are still critical components for Universities and Research and Development facilities around the globe. We have met the challenge and can meet your demands for 4" silicon wafers. Get a Quick Quote for one of our standard products below or, if you don't see what you need, submit a product quote form and let us find what you need.
| Diameter (mm) | Type | Dopant | Grade | Resistivity (ohm-cm) | Thickness (um) | Frontside | Backside | Flats | Flatness (um) | Particles | |
| 100 | P | B | Prime | 10.0 - 20.0 | 500 - 550 | Polished | Etched | 1 Major | <5 | <10@>0.30 | Quick Quote |
| 100 | N | PH | Prime | 10.0 - 20.0 | 500 - 550 | Polished | Etched | 1 Major | <5 | <10@>0.30 | Quick Quote |
| 100 | P | B | Test | 10.0 - 20.0 | 475 - 575 | Polished | Etched | 1 Major | <10 | <10@>0.30 | Quick Quot |
Qinhuangdao Intrinsic Crsytal Technology Co., Ltd, based in China, is a recognized leader in high-performance optical solutions across a broad infrared spectrum. Combining adequate IR material supply, extensive fabricating experience, and the standardized service, U-Optical specializes in producing high-precision IR optical components for the Medical/Life Sciences, Defense & security, Semiconductor, and Industrial OEM markets. From optics designing, to material purchase, to volume production, our company endeavor to optimize your IR products for performance, cost, quality and delivery.
Our Strengths
Ample, stable and cost-efficient supply of IR materials.
ICC also offers the ability to combine infrared material supply, precision optical processes, various coating, reliable inspection and commercial service into a complete procedure, providing full professional support for both optics and trades. This enables our customers to obtain the highest level of optical integration and business advantage, minimizing time and cost while ensuring quality, performance and manufacturability.
Consistent and high-performance manufacturing
During its years of operational experience, ICC have developed unique techniques of micro-polishing which enable to easily produce elements needed for high transmission and low scattering and absorption applications.
The accumulated experience in the IR optics market, in addition to the high qualifications and strong optical background of the company's leading staff allow U-Optics to be a reliable supplier to many OEM customers and R&D institutions around the world.
Excellent quality and efficient service
From design to delivery, our material control, in-process testing and final inspections assure that our products meet your highest specifications and quality standards.
Our sales team possess a wide range of experience of not only optics, but also the international business services. By staying close to our customers and giving straightforward honest advice, we are confident to provide our overseas customers with the excellent IR products from China.
Competitive Prices
ICC can offer the customers with most competitive prices and high quality of products, supported by the close associations with the domestic suppliers, its comprehensive optical manufacturing capabilities, as well as its strong ability in exploring overseas markets.
Stable and reliable business partner
We place equal focus on processing technique, customer service and innovative research. Meanwhile, we create customer value by understanding customer needs, by unconditionally guaranteeing our work and by keeping abreast of customer developments.
Contact us today to discuss your needs. To my email: Optics@intrnsiccrysal. COM Tel: 18833844340
