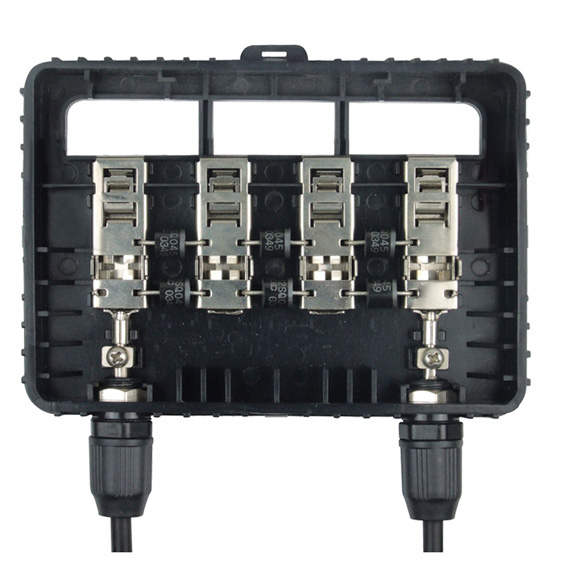

4 Terminals 6 Diodes Solar PV Junction Box

4 Terminals 6 Diodes Solar PV Junction Box
Price: US $ 3-5/Piece
Min Order: 500/Piece
Pay Type: L/C,T/T
Prod Model: FT-001
Application: Commercial
Specification: Normal

Product Description

Product Features:

Ø  High current and voltage carrying capacity.

Ø  Simple, quick and safe effective field assembly.

Ø  The outer cover has the capacity of anti-aging and resistance to ultraviolet radiation.

Ø  It can be used in the outdoor iron environment.

Ø  6 diodes are paralleled into 2 rows, the particular design can be used in high-power battery board, it can reduce the temperature of box body.



Structure:

Number of terminals4
Number of diodes6
Cable Spec4mm2
Connection methodClamp
Weight345(g)



Specifications:

Rated current15A
Rated Voltage36V
Operating Temperature-400C to 850C
Protection DegreeIP65
Protection ClassClass II

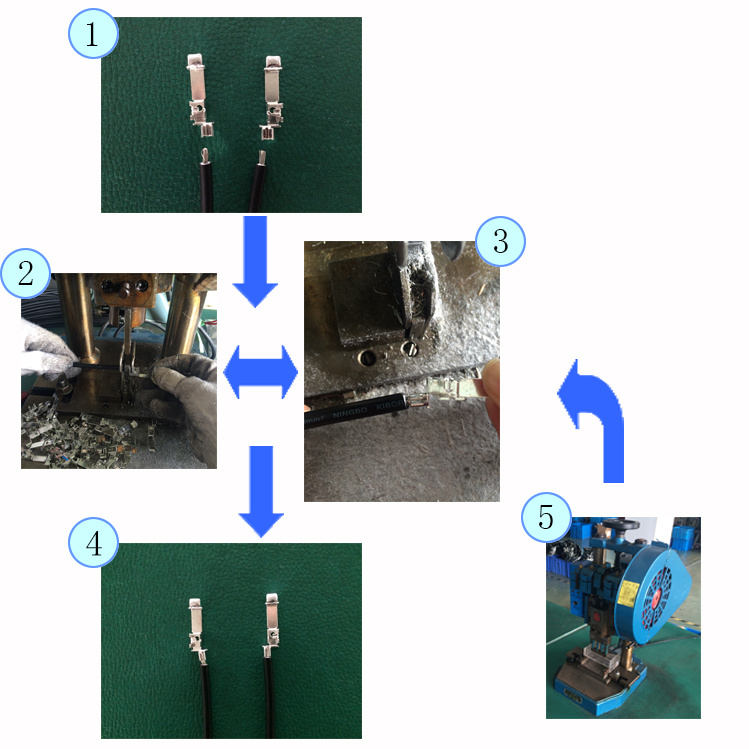

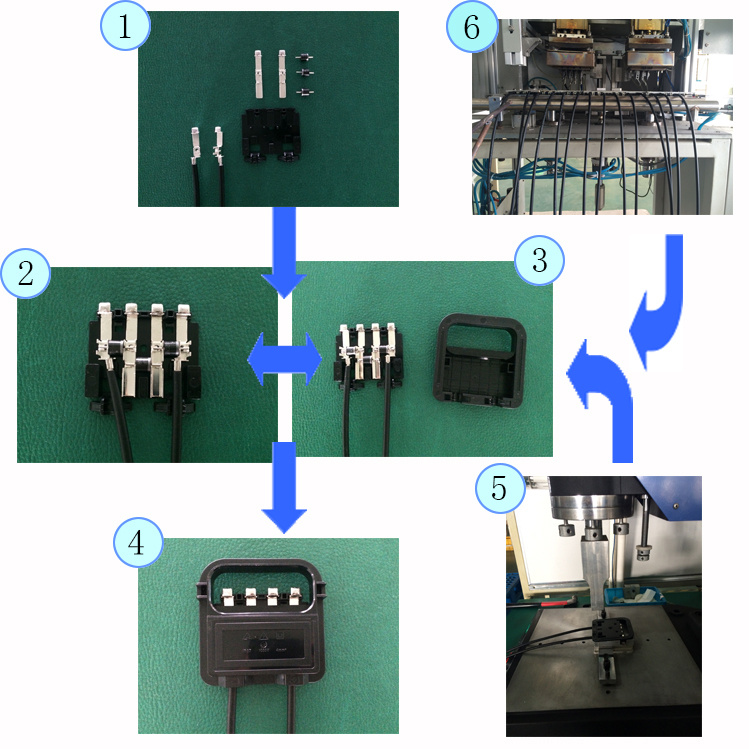

Box Installation:

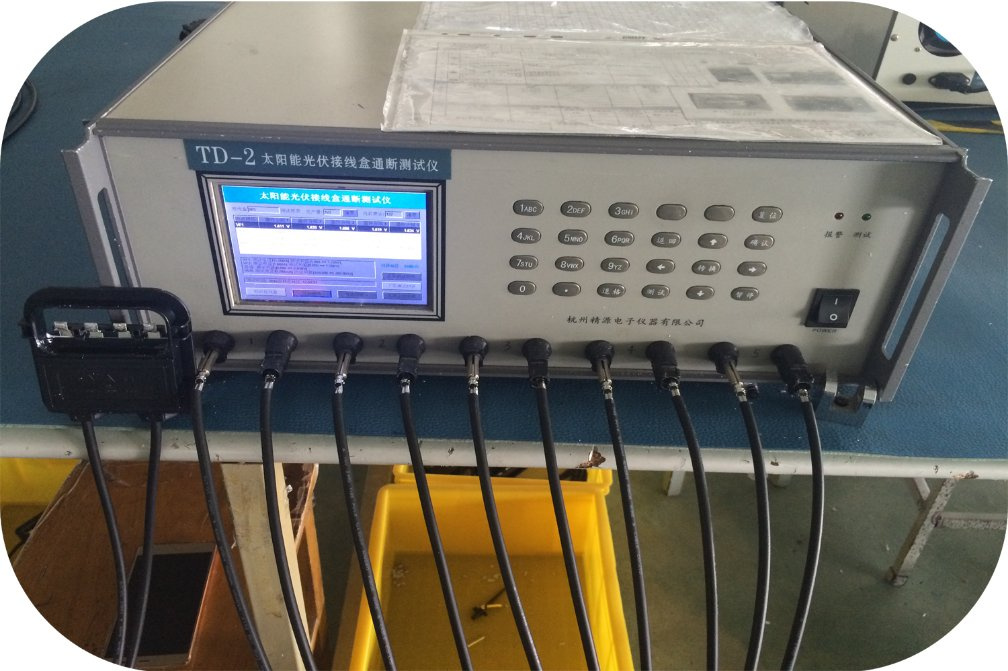

Testing:

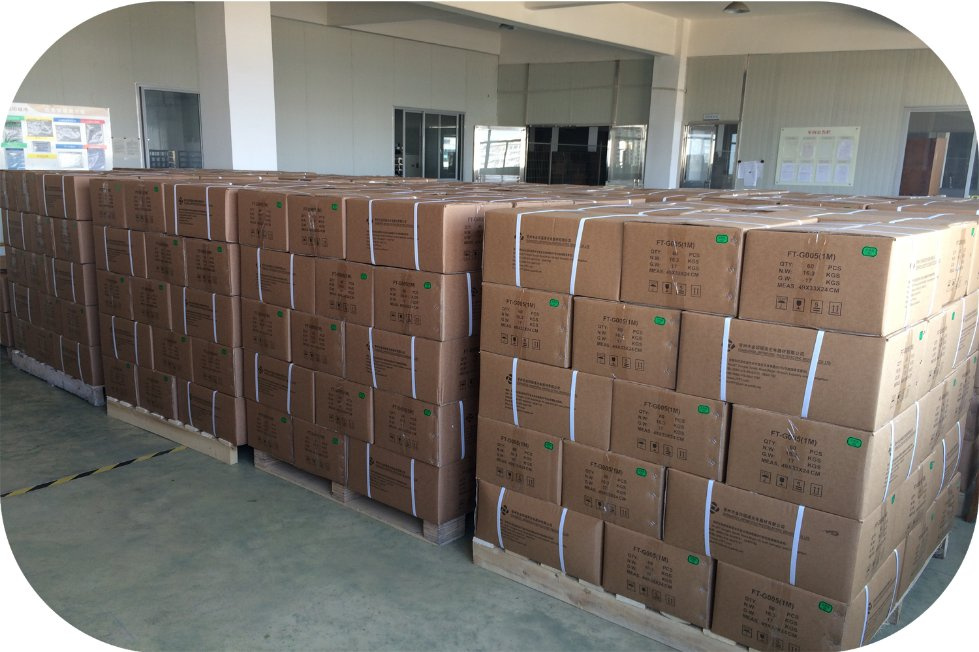

Packing way:


Changzhou Huasheng Futao Photoelectric Science &Technology Co., Ltd. is located in Wujin Hi-tech Industry Area. The factory area is 32 mu and building area is about 20000 square meters. It has predominant geographical location and very convenient transport facilities. The Yanjiang express way and huning express way are nearby.

For years, we dedicate to the cooperation with China Science & Technology University, established the laboratory for the plastic optical fiber devices and national application engineering for the research and development of HDMI cables, Toslink and other different AV cables. Meanwhile, we import the professional equipments and technology from Japan and Germany for the production of PV Ribbon, PV Intelligent Junction Box and PV cables. These products are widely used in solar field.

We aim at the faith of "quality is the cornerstone of company's existence, customer's requirement is the standard". In order to improve products' quality, we establish advanced testing laboratory. We use ISO9001 quality procedures and passed TUV and UL certificate. We advocate the culture conception of "keep improving and reinvent continuously". We believe we can contribute to the energy conservation and environmental protection.

It is our honor to have you to grow with our company!
