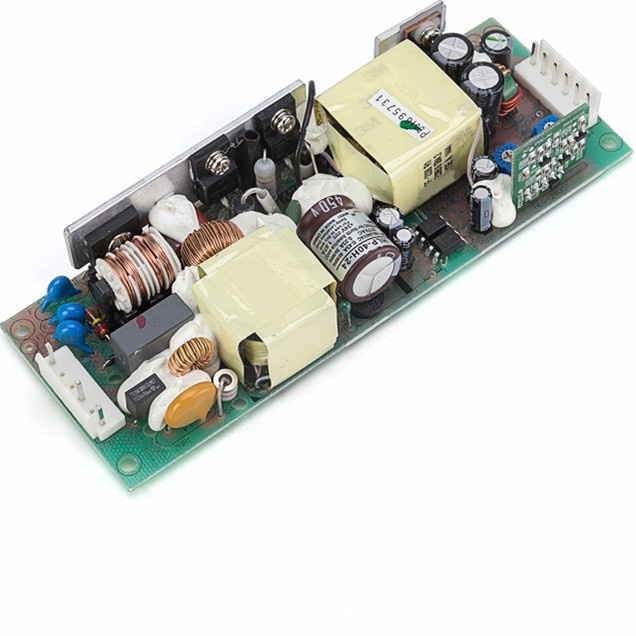

40-80watt LED Driver with Pfc Function (HLP Series)

Name: 40-80watt LED Driver with Pfc Function (HLP Series)
Brand: all-electronics-online.com
SKU: 797407335
Availability: InStock
Rating: 5 (116 reviews)

Price:	US $ 9-10.5/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WSP-hlp
Dimming:	1-10VDC,PWM or Resistance
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Certification:	FCC
Brand:	OEM

Product Description

40-80Watt LED driver with PFC function(HLP Series)
*Universal AC input/full range(up to 305VAC)
*Built-in active power factor correction function
*Constant current output point is adjustable
*Natural cooling
*Built-in 3 in 1 dimming function(1-10VDC,PWM signal or resistance)
*Protection function: short circuit,over current,over voltage,over temperature
*Built-in current limiting circuit
*Class1 or 2 power supply, by LPS(limited power source)test
*Used in the LED lighting system
*3 years warranty

Series No.

Model No.

Specification

AC input range

AC inrush Current(Max.)

DC voltage adjustable range

Current adjustable range

Over current protection

Over voltage protection

Start,rise,holding time

Withstand Voltage

Working Temperature

EMC standards

Connector
input/output

Output

Voltage tolerance

Ripple&noise

Efficiency

Size(mm)

HLP-40H

HLP-40H-12

90~305VAC;
127~431VDC

Cold start,
50A/230VAC

±10% Rated output voltage

60%~100%

95%~108% Rated current limit,, Automatic recovery

109%~145%Rated output voltage

1000ms,80ms,16ms(230VAC Full load)

I/P-O/P:3.7KVAC, I/P-FG:2KVAC,O/P-FG:0.5KVAC

-40ºC~+70ºC

EN55015,EN61000-3-2Class C,EN61000-4-2,3,4,5,6,8,11,EN61547

6+6P/3.96mm Pin pitch,JST P/N:B6P-VH

12V, 0~3.33A

±2.5%

150mV

87.0%

147x53x27

HLP-40H-15

15V, 0~2.67A

±2.0%

150mV

87.0%

HLP-40H-20

20V, 0~2.00A

±1.0%

150mV

88.0%

HLP-40H-24

24V, 0~1.67A

±1.0%

150mV

88.0%

HLP-40H-30

30V, 0~1.34A

±1.0%

200mV

88.5%

HLP-40H-36

36V, 0~1.12A

±1.0%

200mV

89.0%

HLP-40H-42

42V, 0~0.96A

±1.0%

300mV

89.0%

HLP-40H-48

48V, 0~0.84A

±1.0%

300mV

89.5%

HLP-40H-54

54V, 0~0.75A

±1.0%

300mV

89.5%

HLP-60H

HLP-60H-15

90~305VAC;
127~431VDC

Cold start,
55A/230VAC

±10% Rated output voltage

60%~100%

95%~108% Rated current limit,, Automatic recovery

109%~145%Rated output voltage

1000ms,80ms,16ms(230VAC Full load)

I/P-O/P:3.7KVAC, I/P-FG:2KVAC,O/P-FG:0.5KVAC

-40ºC~+70ºC

EN55015,EN61000-3-2Class C,EN61000-4-2,3,4,5,6,8,11,EN61547

6+6P/3.96mm Pin pitch,JST P/N:B6P-VH

15V, 0~4.00A

±2.0%

150mV

88.0%

147x53x27

HLP-60H-20

20V, 0~3.00A

±1.0%

150mV

89.0%

HLP-60H-24

24V, 0~2.50A

±1.0%

150mV

89.5%

HLP-60H-30

30V, 0~2.00A

±1.0%

200mV

90.0%

HLP-60H-36

36V, 0~1.70A

±1.0%

200mV

90.0%

HLP-60H-42

42V, 0~1.45A

±1.0%

300mV

90.0%

HLP-60H-48

48V, 0~1.30A

±1.0%

300mV

90.5%

HLP-40H-54

54V, 0~1.15A

±1.0%

300mV

90.5%

HLP-80H

HLP-80H-12

90~305VAC;
127~431VDC

Cold start,
70A/230VAC

±10% Rated output voltage

80%~100%

95%~108% Rated current limit,, Automatic recovery

109%~145%Rated output voltage

1000ms,200ms,16ms(230VAC Full load)

I/P-O/P:3.7KVAC, I/P-FG:2KVAC,O/P-FG:0.5KVAC

-40ºC~+70ºC

EN55015,EN61000-3-2Class C,EN61000-4-2,3,4,5,6,8,11,EN61547

6+6P/3.96mm Pin pitch,JST P/N:B6P-VH

12V, 0~5.0A

±2.5%

150mV

87.5%

167x53x29.5

HLP-80H-15

15V, 0~5.0A

±2.0%

150mV

88.5%

HLP-80H-20

20V, 0~4.0A

±1.0%

150mV

89.5%

HLP-80H-24

24V, 0~3.4A

±1.0%

150mV

90.0%

HLP-80H-30

30V, 0~2.7A

±1.0%

200mV

90.0%

HLP-80H-36

36V, 0~2.3A

±1.0%

200mV

90.0%

HLP-80H-42

42V, 0~1.95A

±1.0%

200mV

90.0%

HLP-80H-48

48V, 0~1.7A

±1.0%

200mV

90.0%

HLP-40H-54

54V, 0~1.5A

±1.0%

200mV

90.0%
