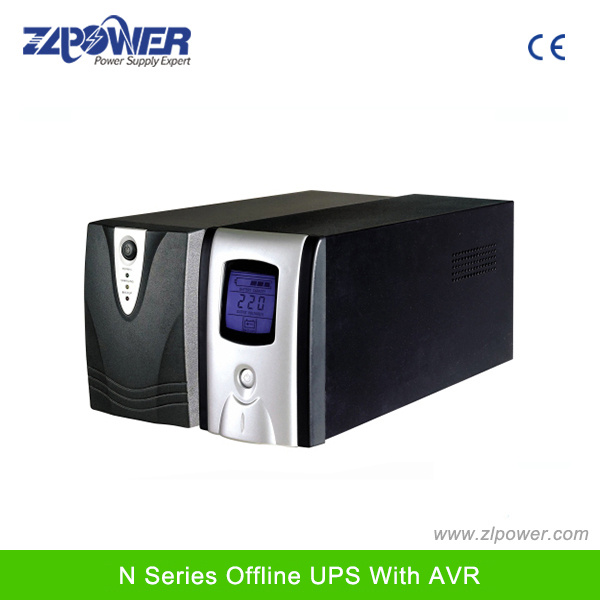

400-1500va Best Quality Offline UPS for Standby Computer Backup Solution
| Price: |
US $ 20/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
N400~N1500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
400-1500va |
| Output Frequency: |
50Hz/60Hz |
| UPS Dimension: |
345*125*190mm |
| Communication Software: |
Optional RS232, Rj11, RJ45, USB |
| Output Voltage: |
220VAC/120VAC |
| Recharge Time: |
8 Hrs to 90% of Capacity Full Load |
| Backup Time: |
5-15mins |
| Warranty: |
2 Years |
| Production Tiime: |
7-15 Das for Mass Production |
| Input Voltage: |
145~280VAC/ 80VAC-150VAC |
| Phase: |
Single Phase |
| Type: |
Standby |
| Protection: |
Short Circuit |
| Application: |
Computer, PCS,Computer Peripherals |
| Classification: |
Offline UPS |
| Standby Time: |
5-15mins |
| Equipment Mode: |
Power Backup Solution |
| Brand: |
Zlpower |
Product Description
400-1500VA Best Quality Offline UPS For Standby Computer Backup Solution
1: Offline UPS with AVR Function and with Short Circuit protection
2: LED Display offline UPS
3: Offline UPS with USB/RS232/RJ11/RJ45 Ports
4: UPS Single Phase, 110V/120V or 220/230/240Vac In/Out
Offline LED UPS Optional function
Line Surge Protection: RJ11/RJ12/RJ45, Communication Interface: RS232
Control mode: CPU controller
Function & Characteristic:
AVR, Overload and short circuit protection
Low battery alarm, LED status display
UPS Auto on when AC back, Night charging(optional)
Built-in Sealed lead acid batteries inside
USB Port is optional
Standby offline Mode
CE certificate, low fault rate and 1 year warranty
Quality is competitive with APC, Santak and Eaton UPS.
| Offline UPS Model | N400 | N500 | N650 | N800 | N1000 | N1200 | N1500 |
| Nominal Voltage | 400VA/240W | 500VA/300W | 650VA/390W | 800VA/480W | 1000VA/600W | 1200VA/720W | 1500VA/900W |
| Input | Voltage Range | 145~280VAC |
| Frequency | 50/60Hz |
| Output | Voltage Range | 220VAC ± 10% |
| Frequency | 50Hz ± 5% |
| Output Waveform | | | Square Wave | | |
| Transfer time | < 10ms |
| Battery | Type | Sealed free maintenance lead acid battery |
| Capacity | 12V, 4AH *1PCS | 12V, 7AH *1PCS | 12V, 7AH *1PCS | 12V, 9AH *1PCS | 12V, 7AH *2PCS | 12V, 9AH *2PCS | 12V, 9AH *2PCS |
| Recharge Time | 8 hrs to 90% of capacity full load discharge |
| Protection | Auto protect |
| Back-up time( Full load ) | 3~5 min | 5~7 min | 7~10 min | 6~8 min | 5~7 min | 8~10 min | 10-12min |
| Function | Auto voltage output on AC mode, Auto shutoff if short circuit or overload |
| DB-9 port, communication software | Optional RS232, RJ11, RJ45, USB |
| Protection | AC mode | Fuse |
| Short circuit | AC | Fuse |
| Invert mode | Auto protect |
| Alarm | Alarm | Battery discharge | Alarm beeps every four seconds |
| Low battery voltage | Alarm beeps every second |
| Overload | Alarm beeps continuously |
| Indicator light | Auto adjust | Green lighting: AC mode |
| Battery Discharge | Red lighting: Battery mode |
| Environment | Operating temperature | 0C~40C |
| Operating Humidity | 0-90% non-condensing |
| Noise | < 35dB (1 meter distance) |
| UPS Dimension (L× W× H) mm | 325*90*150 | 335*100*150 | 345*125*190 |
| Net weight (N. W) | 4.5KG | 6.5KG | 6.8KG | 7.5KG | 11KG | 12KG | 13KG |
| Gross weight (G. W) | 4.7KG | 6.7KG | 7KG | 7.7KG | 11.3KG | 12.3KG | 13.3KG |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
