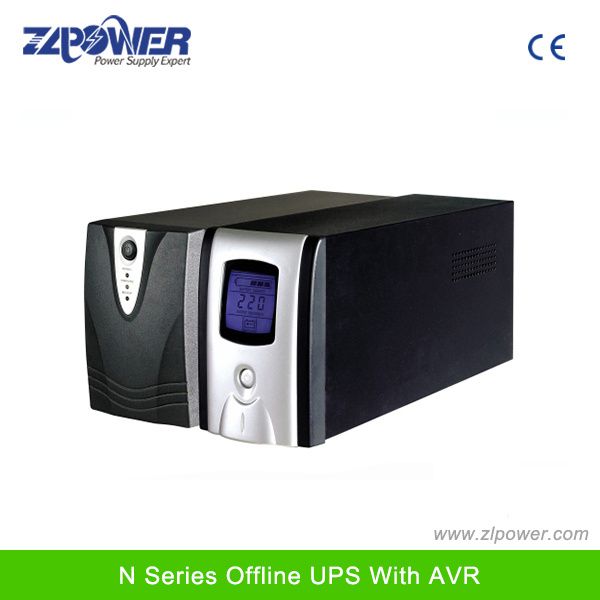

400-1500va Offline UPS - Offline UPS with Standby Function for Home and Office Use
| Price: |
US $ 20/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Money Gram |
| Prod Model: |
N400~N1500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
400-1500va(240-900W) |
| Input Voltage: |
145~280VAC/ 80VAC-150VAC |
| Output Frequency: |
50Hz/60Hz |
| UPS Dimension: |
345*125*190mm |
| Communication Software: |
Optional RS232, Rj11, RJ45, USB |
| Output Waveform: |
Square Wave |
| Output Voltage: |
220VAC/120VAC |
| Recharge Time: |
8 Hrs to 90% of Capacity Full Load |
| Backup Time: |
5-15mins |
| Warranty: |
1 Year |
| Phase: |
Single Phase |
| Type: |
Standby |
| Protection: |
Overload/ Over Charge/ Short-Circuit |
| Application: |
Computer, PCS,Computer Peripherals |
| Classification: |
Offline UPS |
| Standby Time: |
5-15mins |
| Equipment Mode: |
Power Backup Solution |
| Brand: |
Zlpower |
Product Description
400-1500va Offline UPS - Offline UPS with Standby Function for Home and Office Use
1: Offline UPS with AVR
2: Offline UPS with Overload and short circuit protection
3: CPU Control for Offline UPS
4: UPS Ports for RJ11/RJ12/RJ45/RS232/USB
Offline UPS - Offline UPS with Standby Function for Home and Office use KEY FEATURES
1: Optional function
2: Line Surge Protection: RJ11/RJ12/RJ45, Communication Interface: RS232
3: Control mode: CPU controller
Function & Characteristic:
4: AVR, Overload and short circuit protection
5: Low battery alarm, LED status display
6: UPS Auto on when AC back, Night charging(optional)
Application: Home, Office
| UPS MODEL | N400 | N500 | N650 | N800 | N1000 | N1200 | N1500 |
| Nominal Voltage | 400VA/240W | 500VA/300W | 650VA/390W | 800VA/480W | 1000VA/600W | 1200VA/720W | 1500VA/900W |
| Input | Voltage Range | 145~280VAC |
| Frequency | 50/60Hz |
| Output | Voltage Range | 220VAC ±10% |
| Frequency | 50Hz ±5% |
| Output Waveform | | | Square Wave | | |
| Transfer time | < 10ms |
| Battery | Type | Sealed free maintenance lead acid battery |
| Capacity | 12V,4AH *1PCS | 12V,7AH *1PCS | 12V,7AH *1PCS | 12V,9AH *1PCS | 12V,7AH *2PCS | 12V,9AH *2PCS | 12V,9AH *2PCS |
| Recharge Time | 8 hrs to 90% of capacity full load discharge |
| Protection | Auto protect |
| Back-up time( Full load ) | 3~5 min | 5~7 min | 7~10 min | 6~8 min | 5~7 min | 8~10 min | 10-12min |
| Function | Auto voltage output on AC mode, Auto shutoff if short circuit or overload |
| DB-9 port,communication software | Optional RS232, RJ11, RJ45, USB |
| Protection | AC mode | Fuse |
| Short circuit | AC | Fuse |
| Invert mode | Auto protect |
| Alarm | Alarm | Battery discharge | Alarm beeps every four seconds |
| Low battery voltage | Alarm beeps every second |
| Overload | Alarm beeps continuously |
| Indicator light | Auto adjust | Green lighting: AC mode |
| Battery Discharge | Red lighting: Battery mode |
| Environment | Operating temperature | 0C~40C |
| Operating Humidity | 0-90% non-condensing |
| Noise | <35dB (1 meter distance) |
| UPS Dimension (L×W×H) mm | 325*90*150 | 335*100*150 | 345*125*190 |
| Net weight (N.W) | 4.5KG | 6.5KG | 6.8KG | 7.5KG | 11KG | 12KG | 13KG |
| Gross weight (G.W) | 4.7KG | 6.7KG | 7KG | 7.7KG | 11.3KG | 12.3KG | 13.3KG |
