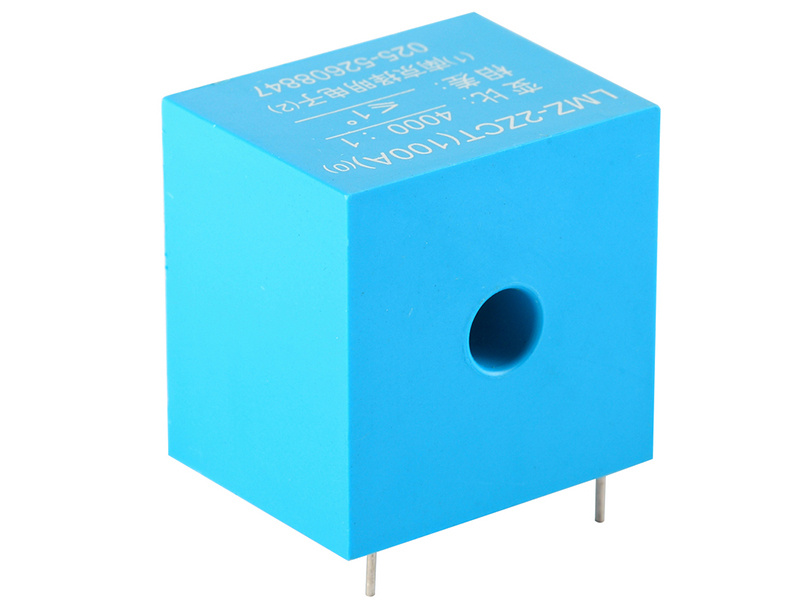

4000: 1 Lmz-2zct (100A) Current Transformer Used for Relay Protection
| Price: |
US $ 2-2.3/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
LMZ-2ZCT(100A) |
| Turns Ratio: |
4000:1 |
| Inner Hole Size: |
6.5mm |
| Application: |
Lighting |
| Type: |
Current Transformer |
| Phase: |
Single |
| Installation: |
PCB Mounting |
Product Description
LMZ-2ZCT(100A) Current transformerFeatures: Small size, high reliability, good consistency,
applied to power protection

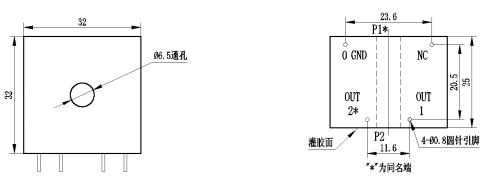

Structural parameters:
Environment conditions:
1. Normal operating conditions
a) Ambient temperature:-25 ~ +70 celsius
b) Relative humidity:5~95
c) Atmospheric pressure:66KPa~110KPa
2. Ambient temperature limits of storage and transportation
-40~+70 celsius
Technical Specifications:
1. Rated input current 5A,Rated output current 1.25mA.Turns ratio 4000:1
2. Rated load resistor≤200Ω
3. Frequency 50HZ
4. Accuracy:ratio error of Rated output and Normal value 0~-0.8%.Output termination connects to rated load,when 0.1~1.2 time rated input current,Comparison of output quantity and Nominal output values of rated output,Error should be less than 3.0%.
5. Linearity 3.0 (0.1~20times the rated input)
6. Phase error : a) phase error ≤1.0°(Rated input)
b)Phase error ≤3.0°(0.1-20 times of the rated input )
7.Insulation resistor :Between primary and secondary windings;Primary and secondary windings to ground≥1000MΩ(1000V voltage)
8.Dielectric Strength:Power frequency 50HZ,1 minute,Withstand voltage≥3000V
9.Overload capacity:Four times the rated input,continuous work 4 hours;100 times the rated input,Allowed to work 1S
10.Withstand temperature performance
10.1.1High temperature
Temperature:+70±2 celsius;
Duration:2h(At rated operating conditions)
10.1.2Low temperature
Temperature :-20±2 celsius;
Duration:2h(at the rated operating condition)
10.1.3 Temperature Storage
High temperature:+70±2 celsuis;Duration:3h(without load).
Low temperature:-40±2celsius;Duration:3h(without load).
Through temperature storage test of the above requirements,the transformer should be no cracks, breaks, peeling, shedding phenomenon,metal mounting surface can not afford to pitting, no rust.Its electrical performance should be in line with the provisions of 7,10
11.Heat-resistance properties
In environmental condition of temperature+40±2 celsius,relative humidity(93±3)% of transformer,conduct the constant damp heat test for 48h,within 2h before the end of the trial,between each winding of measurement transformer and shielding layer, the core, the insulation resistor between input winding and output winding should be not less than 100MΩ;8.75%
12.Mechanical character
12.1 Vibration durability
Nominal frequency range:10Hz~150Hz
Peak acceleration a:10m/s2,Sweep cycle number on each axis 20.
Duration:10min×20
Requirements:After the test, the transformer should be no loose fastener parts , mechanical damage and so on,the relative performances should be in accordance with the provisions of accuracy, linearity, phase error
12.2 Shock durability
Peak acceleration of shock pulse:300m/s2;
Pulse duration:11ms
The number of pulses in each direction:3times
Requirements:After the test, the transformer should be no loose fastener parts , mechanical manage and so on,the relative performances should be in accordance with the provisions of accuracy, linearity, phase error .
13.Electrical immunity property
Anti-brust interference performance,Electrostatic discharge Immunity performance,Immunity to Electromagnetic radiation interference performance,Immunity to fast transient interference performance should be consistent with provisions of the complete machine and GB/T 15145
14. Flame-retardant property
The coil, housing and sealing materials of the transformer shall withstand the burning test which GB/T2408 prescribed .
15. Shielding performance
Transformer should have sound shielding measures.
