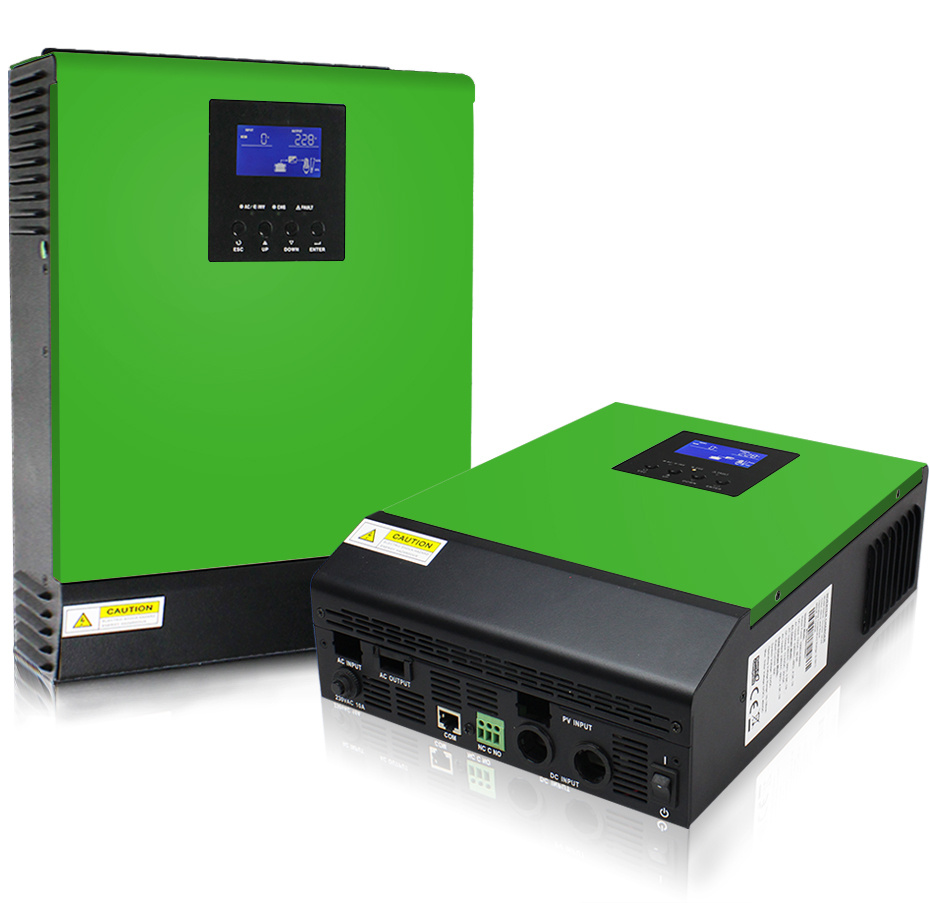

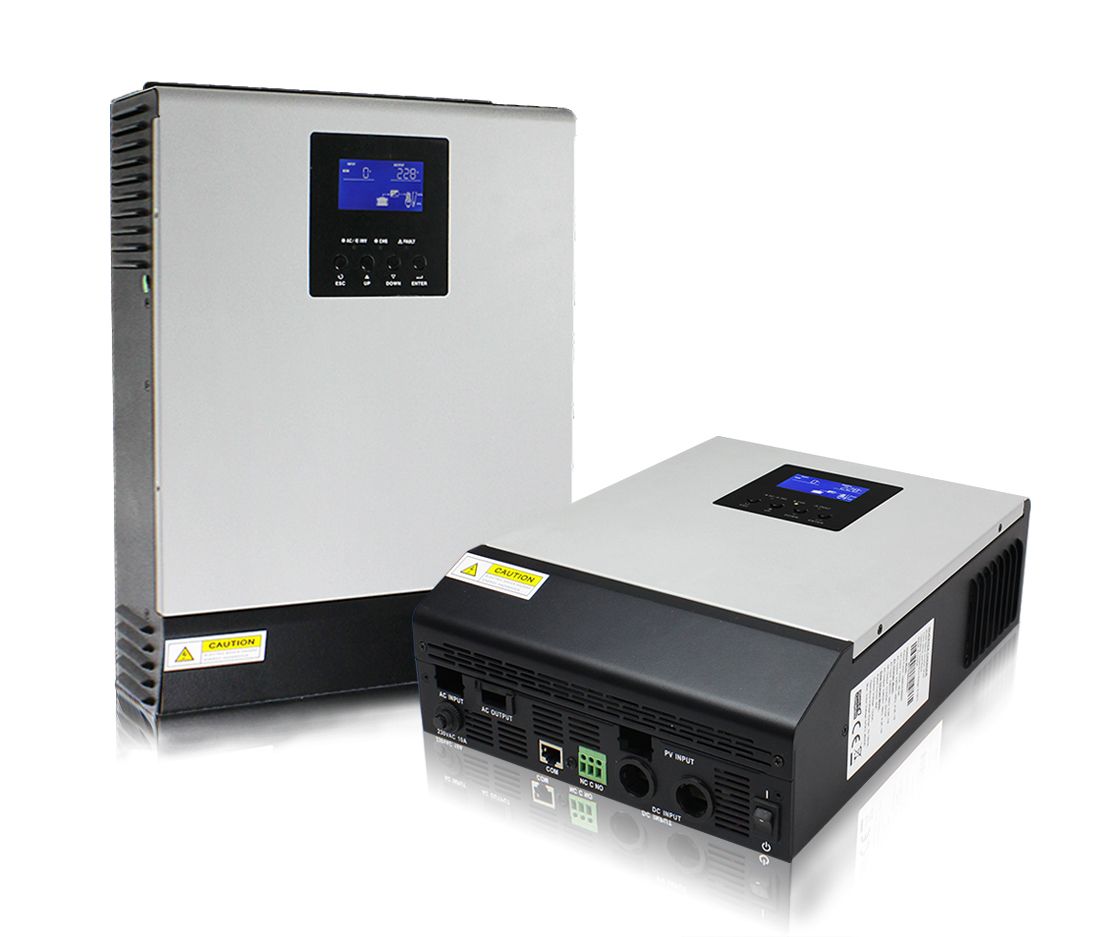

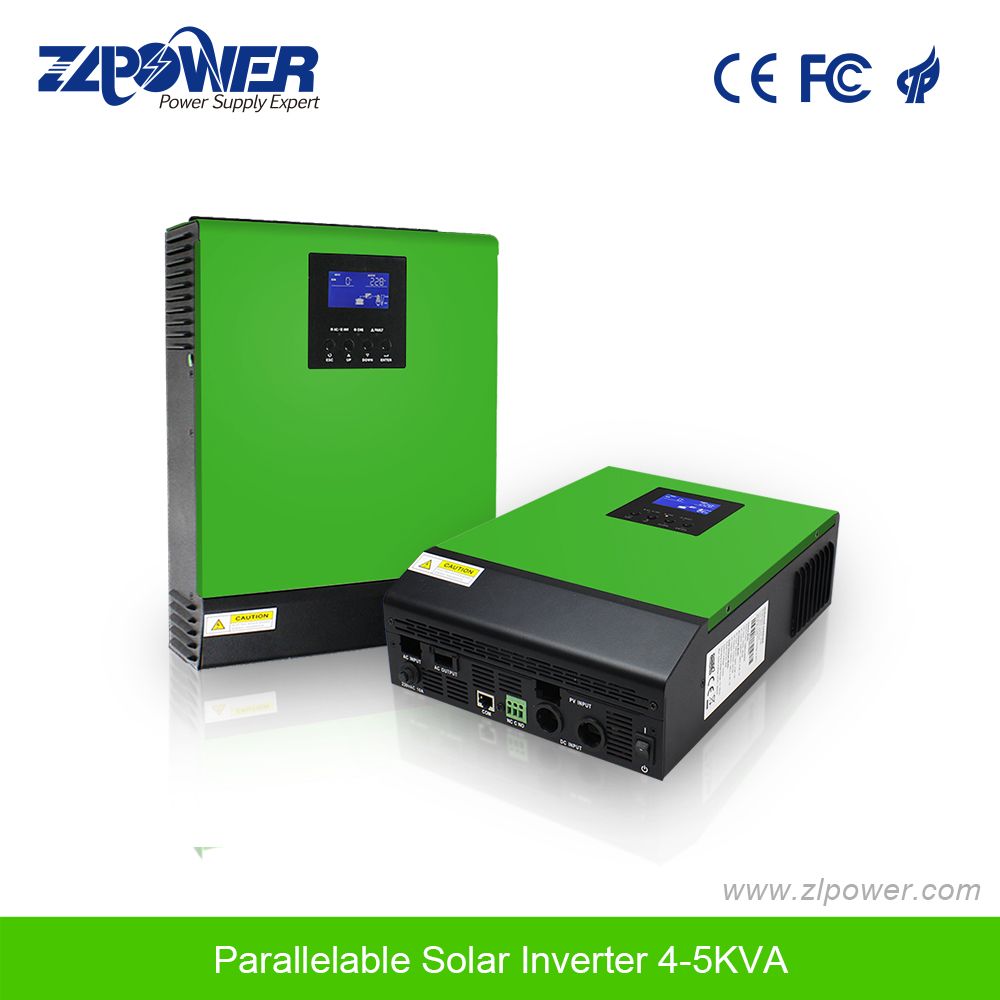

4000va 5000va DC to AC Pure Sine Wave off-Grid Hybrid Power Inverter
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
PSJ4000, PSJ5000, PSK4000, PSK5000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Power: |
4000va,5000va |
| Input Phase: |
Single Phase |
| Wave Form: |
Pure Sine Wave |
| Peak Power: |
2times of Rating Power |
| Built-in MPPT Solar Charge Controller: |
50A/80A Optional |
| Transfer Time: |
10ms |
| Input Voltage: |
230VAC |
| Battery Over Charge Protection: |
60VDC |
| Parallel: |
6PCS |
| Protection: |
Overload,Short Circuit |
Product Description
4000VA 5000VA DC to AC Pure Sine Wave off-Grid Hybrid Power Inverter♦Pure sine wave inverter.
♦Selectable input voltage range for home appliances and personal computers.
♦Selectable charging current based on applications.
♦Configurable AC/Solar input priority via LCD setting.
♦Compatible to mains voltage or generator power.
♦Auto restart while AC is recovering.
♦Overload and short circuit protection.
♦Smart battery charger design for optimized battery performance.
♦Cold start function.
♦Parallel operation with up to 6 units only available for 4KVA/5KVA.
♦Optional Remote Control Panel available.
Technical specifications:
| Model Parameters | PSJ4000-48 | PSJ5000-48 |
| AC Input | Nominal Power | 4000VA/3200W | 5000VA/4000W |
| Nominal input Voltage | 230VAC |
| Selectable voltage Range | 170-280Vac(For Personal Computers) ; 90-280Vac(For Personal Computers) |
| Frequency | 50Hz/60Hz(Auto detection) |
| AC Output | AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Output Voltage Waveform | Pure sine wave |
| Surge Power | 8000VA | 10000VA |
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) |
| Full load efficiency | 93% |
| Solar Charger & Ac Charger | Maximum PV Array Open Circuit Voltage | 105VDC |
| Maximum Solar Charge Current | 50A |
| Maximum AC Charge Current | 60 A |
| Maximum Charge Current | 110A |
| Standby Power Consumption | 2 W |
| Battery | Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 60 VDC |
General
Specifications | Operating Temperature Range | 0ºC to 55ºC |
| Storage Temperature | -15ºC~60ºC |
| Operation Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Dimension(L*W*H) | 120*295*468mm |
| Net Weight(kg) | 9.8kg |
| | | | |
| Product specifications are subject to change without further notice | |
| Model Parameters | PSK4000-48 | PSK5000-48 |
| AC Input | Nominal Power | 4000VA/3200W | 5000VA/4000W |
| Nominal input Voltage | 230VAC |
| Low Line Disconnect | 170Vac±4%(Normal); 90Vac±4%(Wide&Gen) |
| Low Line Re-connect | 180Vac±4%(Normal); 100Vac±4%(Wide&Gen) |
| High Line Disconnect | 280Vac±4%(Normal);280Vac±4%(Wide&Gen) |
| High Line Re-connect | 275Vac±4%(Normal);275Vac±4%(Wide&Gen) |
| MAX AC input Voltage | Max:300VAC |
| Frequency | 50Hz/60Hz(Auto detection) |
| AC Output | AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Output Voltage Waveform | Pure sine wave |
| Surge Power | 8000VA | 10000VA |
| Transfer Time | 10 ms (For Personal Computers); 20 ms (For Home Appliances) |
| Full load efficiency | 93% |
| Solar Charger & Ac Charger | Maximun PV Array Power | 4000W |
| MPPT Range @ Operating Voltage | 60VDC ~115VDC |
| Maximum PV Array Open Circuit Voltage | 145VDC |
| Maximum Solar Charge Current | 80A |
| Maximum AC Charge Current | 60 A |
| Maximum Charge Current | 140A |
| Standby Power Consumption | 2 W |
| Efficiency | 98% |
| Battery & Ac Charger | Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 60 VDC |
General
Specifications | Operating Temperature Range | 0ºC to 55ºC |
| Storage Temperature | -15ºC~60ºC |
| Operation Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Dimension(L*W*H) | 120*295*468mm |
| Net Weight(kg) | 11.0kg |
| | | | |
| Product specifications are subject to change without further notice. | |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
