| Prod Model: |
4000va |
| Rated Power: |
4000va/3200W |
| Waveform: |
Pure Sine Wave |
| Solar Controller: |
50A |
| Input: |
230VAC |
| Selectable Voltage Range: |
170-280 VAC (for Computers) 90-280 VAC |
| Maximum PV Array Open Circuit Voltage: |
145VDC |
| Maximum Charge Current: |
140A |
| Maximum Solar Charge Current: |
80A |
| Maximum AC Charge Current: |
60A |
| Keyword: |
Solar Inverter |
Product Description

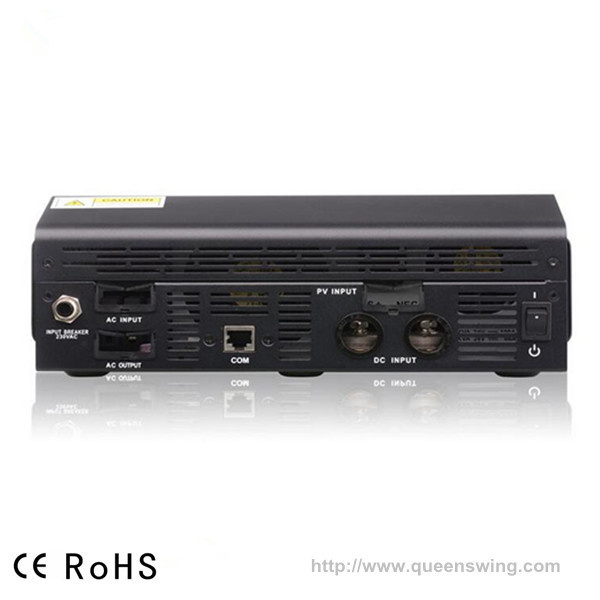

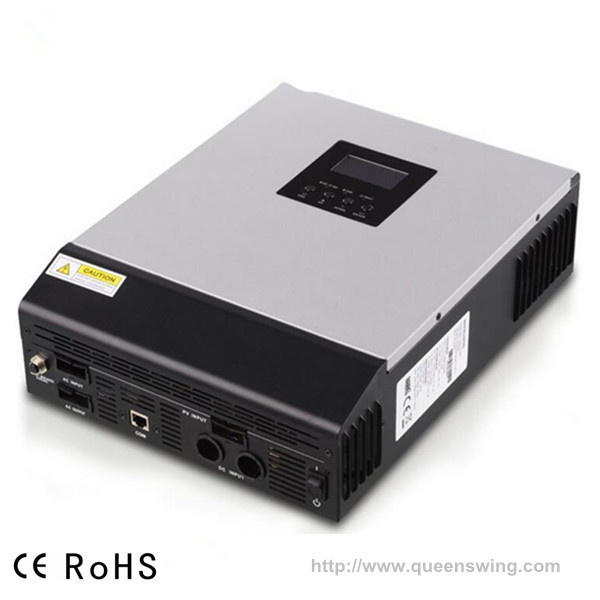

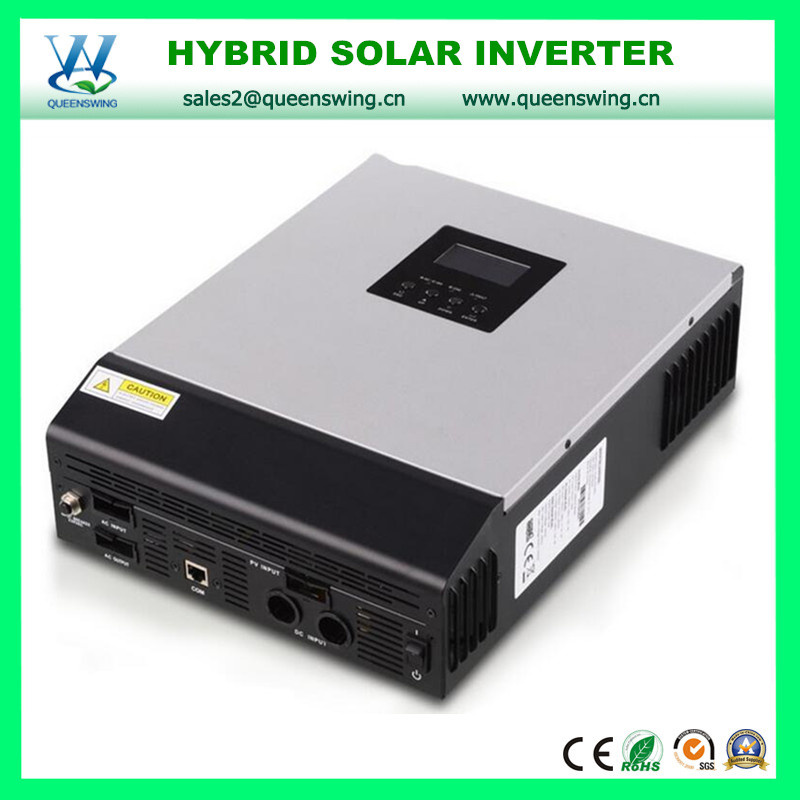

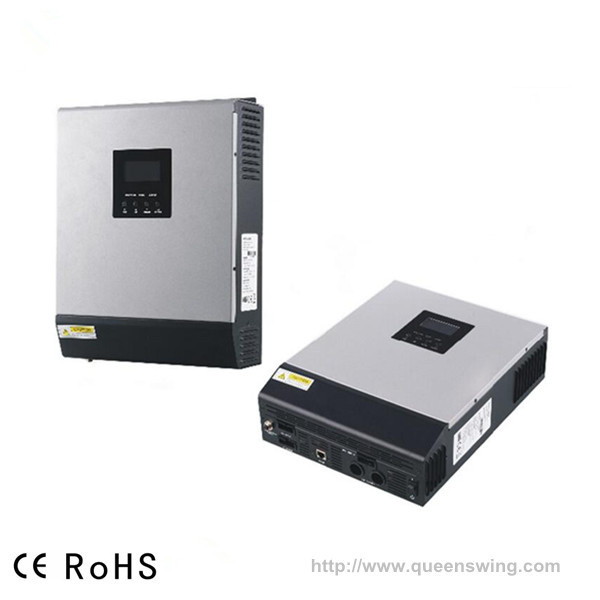

4000VA Built-in MPPT Solar Charge Controller Hybrid Solar Power InverterProduct snapshot:Model : 1-5KVA
Nominal Voltage : 220/230VAC
Nominal Frequency : 50/60HZ
Output Power Factor: 0.8
Key Features:Pure sine wave inverter
Cold start function
Auto restart while AC is recovering
Overload and short circuit protection
Optional remote panel available
Selectable charging current based on applications
Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power
Smart battery charger design for optimized battery performance
Parallel operation with up to 6 units only available for 4KVA/5KVA
Selectable input voltage range for home appliances and personal computers
Single phase output up to 24kw using 6 units
Technical Data| MODEL | SSP3115C 1-12KW |
| 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W | 10000W | 12000W |
| Input Wave form | Sine wave (utility or generator) |
| Nominal Voltage | 120VAC(option) 230VAC |
| Low voltage re trip | 90v ±4% & 184v/154v ±4% |
| Low voltage re engage | 100v ±4% & 194v/164v±4% |
| High voltage re trip | 140v ±4% & 253v ±4% |
| High voltage re engage | 135v ±4% & 243v ±4% |
| Nominal Input Frequency | 50Hz/ 60Hz (auto detection) |
| Low freq trip | 47Hz for 50Hz,57Hz for 60Hz
High freq trip |
| High freq trip | 55Hz for 50Hz,65Hz for 60Hz |
| Output Wave form | (Bypass mode)same as input |
| Over-Load Protection | Circuit breaker |
| Short circuit Protection | Circuit breaker |
| Efficiency on line transfer mode | 95%+ |
| Line transfer time | 10ms Typical |
| Bypass without battery connected | Yes |
| Inverter specification/output |
| Output wave form | Pure sine wave |
| Output continuos power watts | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 |
| Output continuos power VA | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 |
| Power factor | 0.9-1.0 |
| Nominal Output Voltage rms | 120VAC(option) 230VAC |
| Output Voltage regulation | +/- 10%rms |
| Output frequency | 50Hz ± 0.3Hz or 60Hz ± 0.3Hz |
| Safety Certification | >88% |
| Short circuit protection | Yes,fault after 1 secs |
| Inverter specification/input |
| Nominal input voltage | 12V/24V/48V | 96V |
| Minimum start voltage | 10V/20V/40V | 80V |
| Low battery alarm | 10.5V/21V/42V | 84V |
| Low battery trip | 10V/20V/40V | 80V |
| High voltage alarm | 16V/32V/64V | 128V |
| Charger mode spe cification |
| Output voltage | Dependent on battery type |
| Charge current | 10-85A MAX | 75A MAX | 85A MAX | 100A MAX |
| Battery initial voltage for start up | 0-15.7v for 12v(*2 for 24v;*4 for 48v) |
| Over charge protection | 15.7v for 12v(*2 for 24v;*4 for 48v) |
| Solar Charger |
| MPPT Range @ Operating Voltage | 15VDC~150VDC / 25VDC~150VDC / 60VDC~150VDC | 100~300VDC |
| maximum PV Array Open Circuit Voltage | 150VDC | 300VDC |
| Maximum Charging Current | 40A/60A |
| Macimum Effciency | >96% |
| Standby Power Comsumption | 2W |
