| Prod Model: |
P4000U-4000W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
12/24V |
| Output Voltage: |
AC100-120V/AC220-240V |
| Rated Power: |
4000W |
| Surge Power: |
8000W |
| Efficiency: |
87%-90% |
| USB Output: |
5V 500mA |
| Remote Control: |
Optional |
| Net Weight/Gross Weight: |
8.98kg,10.58kg |
| Delivery Time: |
5days for sample,25days for bulk order |
| Warranty: |
2 years |
Product Description

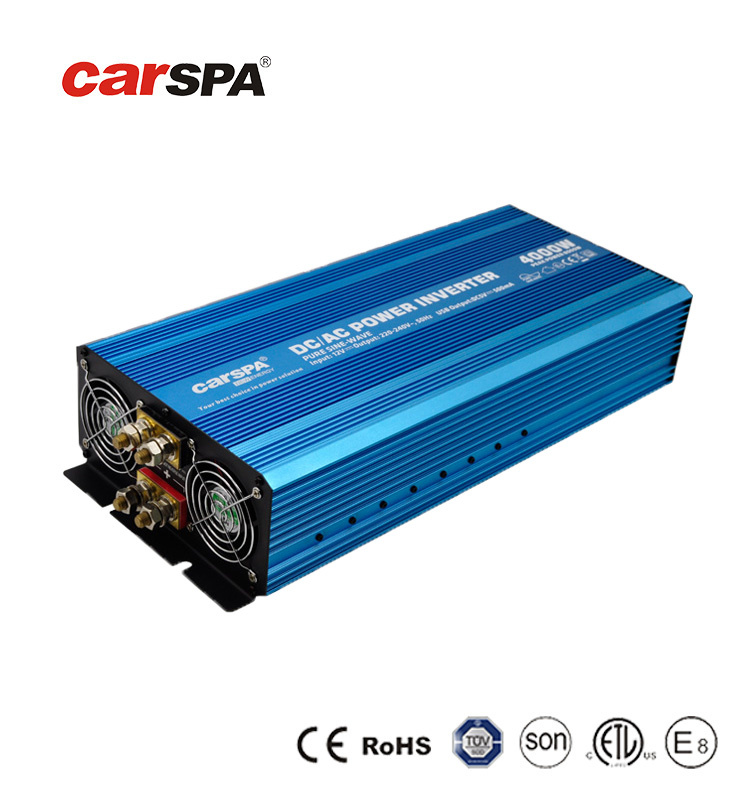

Pure Sine Wave DC to AC Power Inverter 4000W with USB port
Products Description:
CARSPA pure sine wave inverter offering superior quality true sine wave output, it is designed to operate popular power tools and sensitive loads. Connect CARSPA 4000W pure sine wave inverter with battery terminals, then you can get AC power for your appliances, the AC output identical to, and in some cases better than the power supplied by your utility. And there is a remote control function and an ON/OFF remote switch with 5m communication wire is optional.
Products Features:
1. Input & Output fully isolated.
2. The remote control function and 5m wire with switcher optional.
3. High Surge: High surge current capability starts difficult loads such as TVs, camps, motors and other inductive loads
4. Grounding earth protection: There is grounding terminal in front of panel, you can grounding the inverter for more safety concern.
5. Soft start: Smooth start-up of the appliances.
6. Pure sine wave output waveform: Clean power for sensitive loads.
7. AC output identical to, and in some cases better than the power supplied by your utility
8. Cooling fan in the inverter is thermally activated and comes on when the inverters becomes warm, and turns off automatically after the inverter has cooled.
9. Low total harmonic distortion: Below 3%
10. Two LED indicators on the front panel shows the working and failure state
Protection Function:
1. Low voltage alarm & Shutdown
2. Over-voltage protection
3. Overload protection
4. Over-temperature protection
5. Short circuit protection
6. Reverse Polarity protection
7. Soft start
8. Auto. Reset after being in protected
9. Grounding earth protection
Specificaton:
| Model | P4000-121 | P4000-241 | P4000-122 | P4000-242 |
| Output | AC voltage | 100/110/120VAC | 220/230/240VAC |
| Rated power | 4000W |
| Surge power | 8000W(for few seconds) |
| USB | 5V 500mA |
| Waveform | Pure Sine Wave(THD<3%) |
| Frequency | 50/60Hz±3Hz |
| AC regulation | ±5% |
| Standard receptacles | A,B,C,D,E,F,G,H,I,GFCI(optional) |
| LED indicator | Green for power on,red for failure/protection status indication |
| Input | No load current draw | ≤1.6A |
| DC voltage | 12V | 24V | 12V | 24V |
| Voltage range | 10.5~15.0VDC | 21.0~30.0VDC | 10.5~15.0VDC | 21.0~30.0VDC |
| Efficiency | >87.0% | >90.0% | >87.0% | >90.0% |
| Fuse | 30A*16 | 15A*16 | 30A*16 | 15A*16 |
| DC cable | BVR16*16 | BVR16*16 | BVR16*16 | BVR16*16 |
| Protection | Bat.low voltage alarm | 11±0.5VDC | 22±1VDC | 11±0.5VDC | 22±1VDC |
| Bat.low voltage shut down | 10.5±0.5VDC | 21±1VDC | 10.5±0.5VDC | 21±1VDC |
| Overload | Shutdown |
| Over voltage | 14.8±0.5VDC | 29.6±1VDC | 14.8±0.5VDC | 29.6±1VDC |
| Over temparature | Shut-off output voltage, recover automatically after temperature goes down |
| Short circuit | Shut-off output voltage, restart to recover |
| Bat.reverse polarity | By fuse open |
| Soft start | Yes 5-10s |
| Earth leakage | Yes |
| Environment | Reset voltage after LVS | 11.8~12.8VDC` | 23.6~25.6VDC | 11.8~12.8VDC` | 23.6~25.6VDC |
| Working Temp. | 0~40ºC |
| Working humidity | -30ºC-70ºC, 22ºF-185ºF, 10-95% |
| Other | Remote control | Switch with 5m wire(optional) |
| Dimenssion | 538*230*108mm |
| Packing | 10.58Kg, 2pcs/22.2Kg/Ctn(57.5*32*38.5cm) |
| Colling fan | Controlled by load/temperature(optional) |
| Application | Home and office appliances, Power tools and portable equipment, Vehicle and solar power systems, etc. |
| Certification | CE-EMC/LVD, RoHS, E-mark |
| Warranty | 24 Months |
