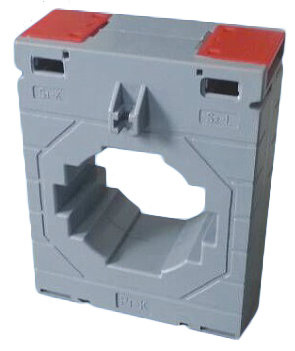

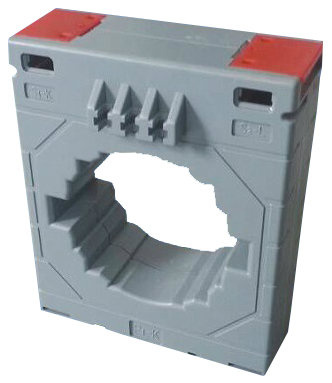

400A 5A Current Transformer 3000A 1A Low Voltage Transformer

Prod Model:	CP140
Rated Input:	1-5000A
Rated Output:	1A 5A
Frequency:	50/60Hz
Case:	PC/UL94-V0
Core:	Silicon Steel
Bobbin:	PBT
Application:	Instrument
Type:	Current Transformer
Phase:	Single
Operation Condition:	Power
Usage:	Single-Phase Transformer
Winding Form:	Tie

Product Description

Electrical 400/5A 3000/1A low voltage 3kv mini current transformers




1. Application

AMC series current transformer is compact .smaller than other models with the current ratio of the transformer is small,clamshell-style terminal cover is well protected by the second terminal.With related accessories you can use Din rail mounting,a current from 5A to 2500A

Current measurement, monitoring and protection for electrical wiring and equipment.Current and power measurement for electric motors,lighting, air compressor,heating and ventilation system, air - condition equipment and automation control system.Current , power and energy monitoring device.
Relay protection device.
 Safe, easy to install, portable
Wide inner window, allowing clamping of big cables or bus-bars
Wide range of sizes to accommodate all the existing installations

3. Technique Index


Frequency	50-60hz
Rated Input	1a-5000a
Measuring range	5%in-130%in
Rated Output	1A 5A
Rated voltage	0.72KV(AC)
Dielectric strength	3.0kv/1mA/1min
Insulation Resistance	DC500V/100MΩ/min



Case	PC/UL94-V0
Bobbin	PBT
Core	Silicon steel
Construction	Screw
Operating Temp	-25ºC~+75ºC
Operating Humidity	<=85%
Output Connection	Terminal

4. Type Selection


Model	Rated Current Ratio(A)	Burden(VA)/Accuracy
		0.5	1.0
CP100/60	400/5	3.75	5
	500/5	5	10
	1000/1	5	15
	1600/1	10	15
CP104/80	600/5	5	10
	750/5	5	10
	1000/1	5	15
	2000/1	10	15
CP140/100	800/5	10	15
	1000/5	10	15
	2000/1	15	15
	3000/1	15	25

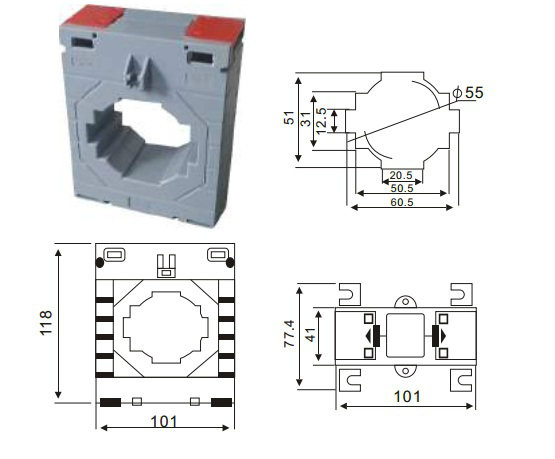

5. Diagram(mm)A.Punctual delivery time:
