400A Toroidal Current Transformer Split Core CT

Name: 400A Toroidal Current Transformer Split Core CT
Brand: all-electronics-online.com
SKU: 684728331
Availability: InStock
Rating: 4.7 (82 reviews)

Price:	US $ 41-45/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CY-KCT03-002
Accuracy:	0.5 Class
Insulation Class:	Cat III
Rated Primary Current:	400A
Secondary Current:	26.6mA
Turn Ratio:	15000:1
Operating Temperature:	-30 C- 70c
Opening Dimension:	32mm
Withstand Voltage:	3000V/1mA/1min
Coil Structure:	Toroidal
Application:	Rectifier
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Brand:	Chuangyin

Product Description

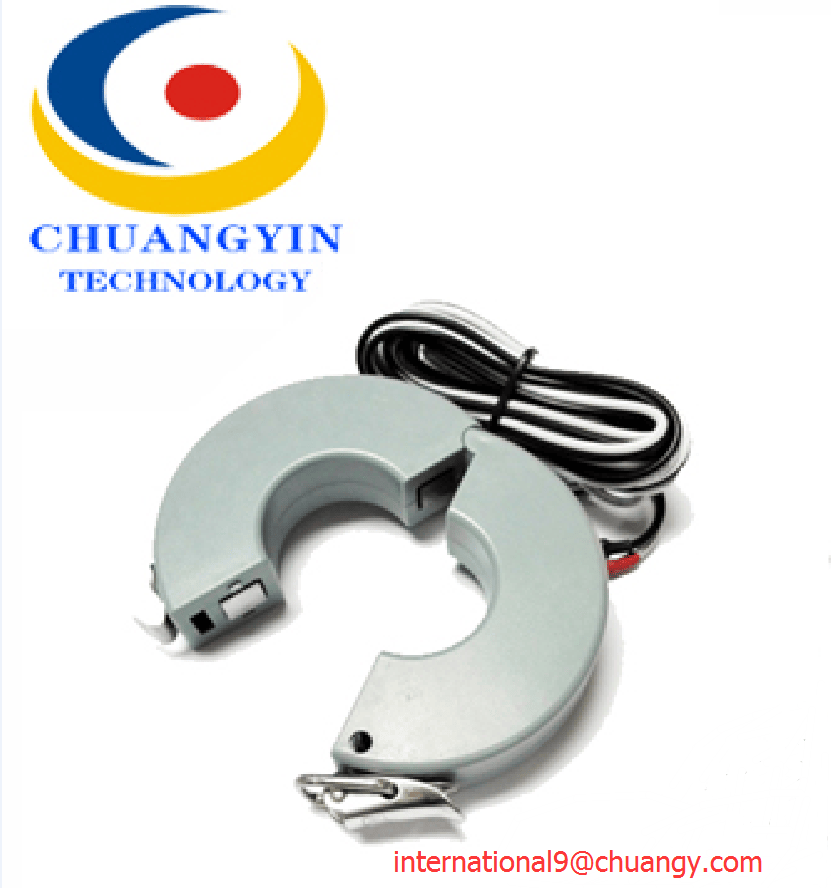

400A TOROIDAL Current Transformer Split Core CT

Features:

.Delicate, exquisiteand weightless, conveniently to install

.Seperated oil, low consumption with magnetic

.Easilyinstall ,no need to disconnect primary busbar, measuring with power on, safetyand convenient.

Typical allocation:

.Multi functionelectricity energy meter and field calibrator, instruments

.Used in themeasurement and protection in power system, while the mobility is strong orspace is narrow or power system is uninterrupted.

Model Code: CY-KCT03 400A

Dimension:

Mould No	ID	OD	H
CY-KCT03-32	32	79	20
L size : as per customer's request

Electrical Parameter:

Mode No	CY-KCT03-32
Rated Primary Current	400A
Rated Secondary Current	26.6m A
Accuary	±0.5%
RL	≤100Ω
Turn Ratio	15000:1
Withstand dielectric voltage	3Kv/1Ma/1Min
Insulating resistance	100MΩ(500VDC)
Insulating level	CATIII
Standard	IEC60044-1
Working Environment	Temperature:-30-70ºC Humid≤85%,indoor
Stroage Condition	Temperature:-40-90ºC Humid≤85%

Specification Sheet:

Accuracy	0.5 class
Insulation Class	Cat III
Rated Primary Current	400A
Secondary Current	26.6mA
Turn Ratio	15000:1
Operating Temperature	-30 C- 70C
Opening Dimension	32mm
Withstand Voltage	3000V/1mA/1min
Coil Structure	Toroidal
Application	energy monitoring
Packaging Details	Carton
Delivery Detail	as per customer's QTY

Note:
Please browse our website and download product catalogue for detailed information.
Pls contact me for much more information below:

SHENZHEN CHUANGYIN TECHNOLOGY CO., LTD.
( CY GROUP )
Certification: KEMA, ISO9001, UL, SGS, CE.
( Your reliable partner for CT,PT (up to 72.5KV) ,Cable accessories, Split core CT, Rogowski Coil , Latching Relay, Flx-core CT )

Address: 1st Floor, Building B, Jiada R&D Building, No.5 Songpingshan Rd.,  Shenzhen High-Tech Zones, Nanshan, Shenzhen, China,
Post code:   518057
Tel:    +86 0755-86000302/ 8600709
Fax:    +86 0755-86000614
Web:  www.chuangy.com

Becky Wang
Business Development Executive
Mob:  +86 15889623648

2016 Summer Olympics!

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
