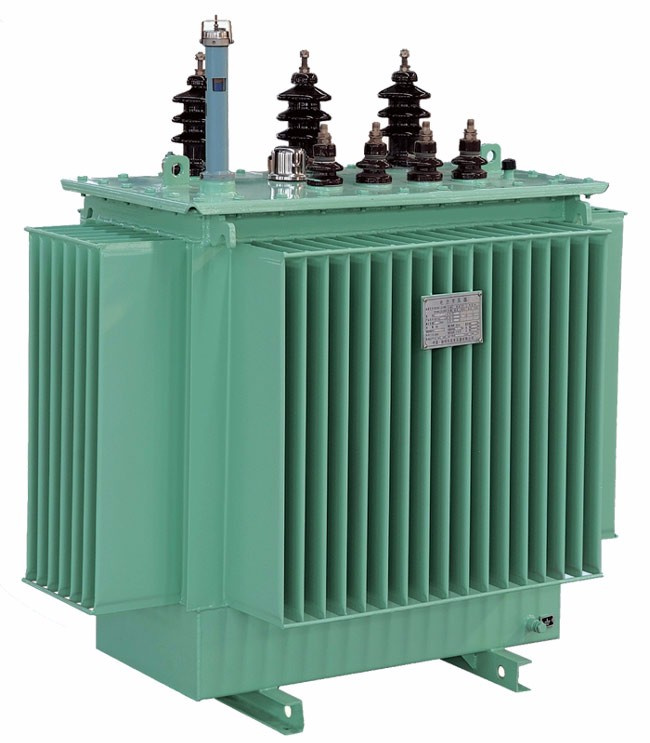

400kVA 3 Phase Oil Immersed Electrical Power Transformer

400kVA 3 Phase Oil Immersed Electrical Power Transformer
Price: US $ 10000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: S11 Series
Rated Capacity: 400kVA
High Voltage: 20kv
Low Voltage: 0.4kv
Noload Loss: 570W
Load Loss: 4730W
Noload Current: 1.0%
Short-Circuit Impedance: 5.5%
Frequency: 50Hz/60Hz
Coil Structure: Toroidal
Application: Power
Phase: Three
Coil: Core-type Transformer
Cooling Method: Oil-immersed Type Transformer
Winding Type: Two-winding Transformer
Brand: Zhongyi

Product Description

Oil Immersed High Frequency Transformer oil-immersed transformer



S9 Series

      The product is in accordance with National Standards GB 1094-1966and GB/T6451-2008 (Technical and specification for 3 phrase oil immersed transformer.)

      S9 series transformer is made from copper winding,adopting the technology,new materials,the load loss and no load loss less than the before.

products features



1. Energy Saving

   The no-load loss of S9 series reduce 10.3%,the no loadcurrent reduce 22.4%.
2.  Long Service Life
   Adopts full-sealed power constituting for oil tank of transformer,the oil tank is welded firmly make the oil separate from air,prolong the machine work time.
3.  High Running Reliablity

4.Small Floor-Space
   S9-M series transformer adopts the fin plate of the currugating oil tank as their cooling compoments.It is not only beautiful but small.
Related products





Certificaitons



Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30, 000 square meters, the building area of 16, 000 square meters. The registered capital of the company is RMB 81, 000, 000.

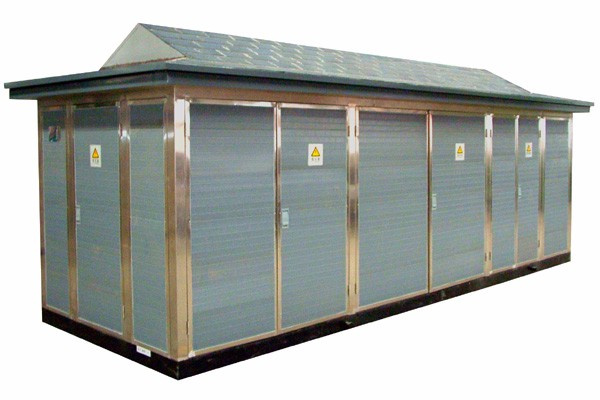

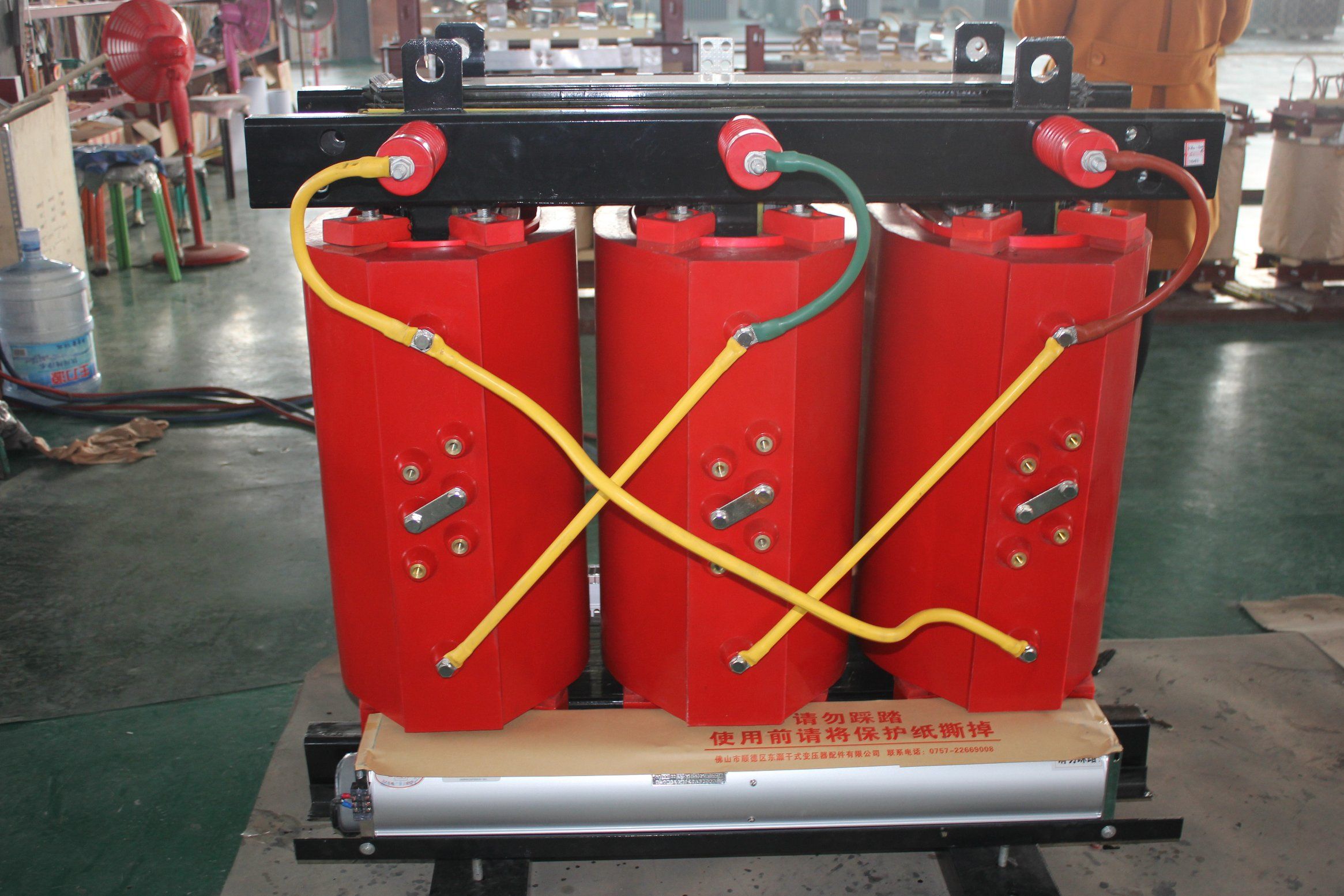

The company mainly produces: Oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.

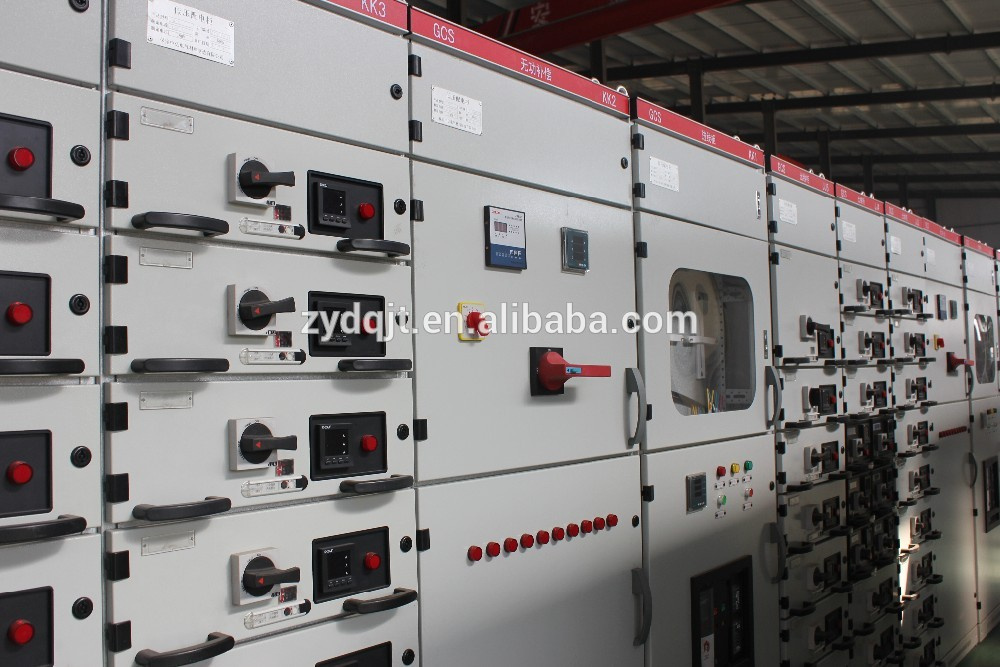

The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product.

Our company's products are widely used in different industries, involving power plants, chemicals, construction, mining, metallurgy, rail transportation and so on, best meeting the needs of various users.

Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. Follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.
