400kVA/3p/400V Long Backup Time Electro Mechanical Smart AC Online UPS

Name: 400kVA/3p/400V Long Backup Time Electro Mechanical Smart AC Online UPS
Brand: all-electronics-online.com
SKU: 823147905
Availability: InStock
Rating: 4.4 (56 reviews)

Price:	US $ 30000-44000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	NP33400
Capacity:	400kVA
Input Voltage:	380V/400V/415V +/-20%
Power Factor:	0.8/0.9 Optional
Battery Voltage:	384V/192V
Overall Efficiency:	98% (Eco); 95% (Normal)
Communication Port:	RS232/RS485/Dry Contact Port
Mtbf:	300,000 Hours
Protection Level:	IP22
Features:	Built-in Output Isolation Transformer
Certificate:	Ce
Phase:	Three Phase
Type:	On-line
Protection:	Overvoltage
Classification:	Power Supply
Brand:	Neopower

Product Description

Model	NP33400
Capacity	400 kVA
Power Rating	320/360 kW
Input Voltage	380/400/415 Vac +/-20%, three phase + N + PE
Input Frequency	40 ~ 65 Hz (auto sense)
Input Power Factor	>0.9
Output Voltage	380/400/415 Vac +/-1%, three phase + N + PE
Output Frequency	input frequency synchronized
Output Power Factor	0.8/0.9
THD	<1% (linear load), <3% (non-linear load)
Crest Factor	3 : 1
Efficiency	95% (normal); 98% (ECO)
Overload Ability	600' / 10' / 1' (110% / 125% / 150%)
Battery Voltage	384 Vdc (optional 192/240/480 Vdc)
Transfer Time	0 ms
Display	touch screen (optional LED)
Communication Port	RS 232 / RS 485 / SNMP Card / Dry Contact
Operation Temperature	-10 ~ 50ºC
Noise	60 ~ 65 dB
Altitude	full power rating at 1000 m, 1% decrease as per 100 m higher
Humidity	95% (non-condensing)
Alarm	buzzer + LED indicators (+optional LCD display)
Standards	EMI: IEC50091-1; EMC: IEC50091-2
Dimension	1400 * 1100 * 2000 mm
Net Weight	2850 kG

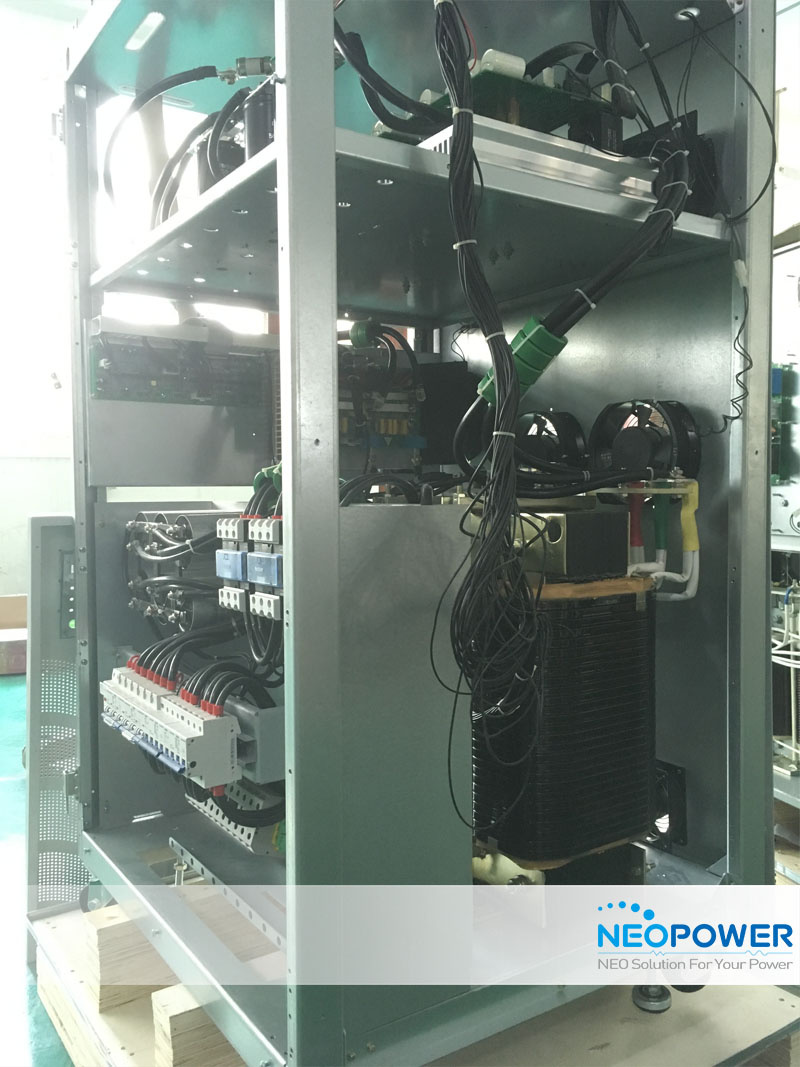

PRODUCT INTERIOR

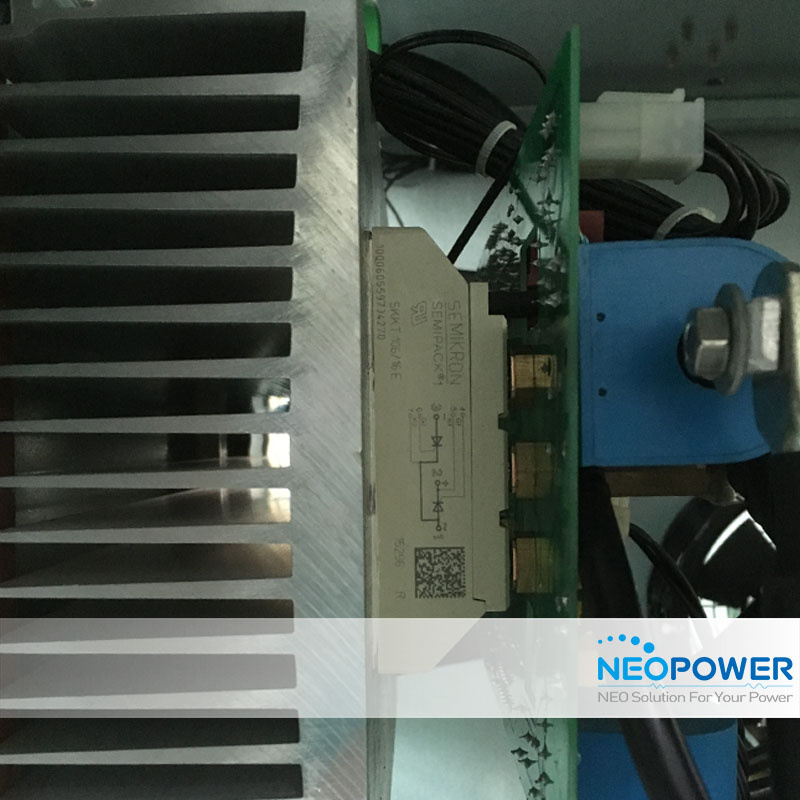

RECTIFIER PART

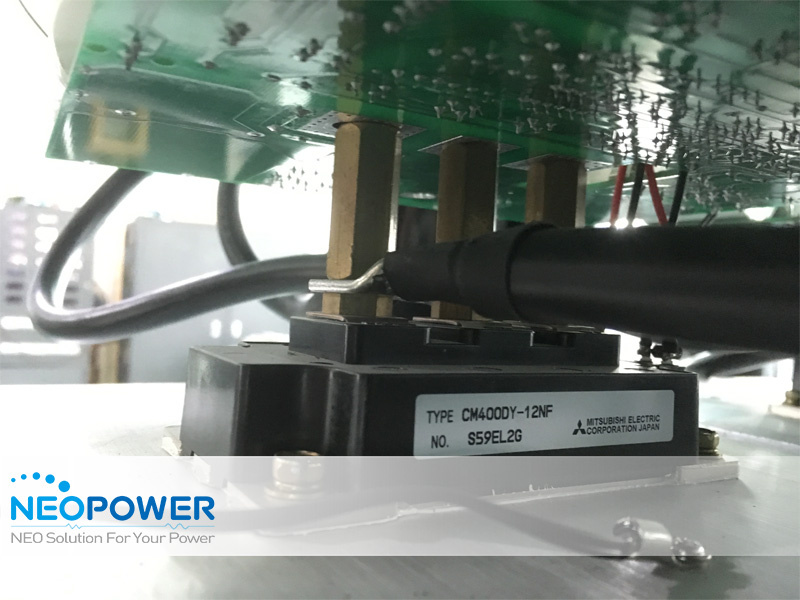

IGBT MODULE

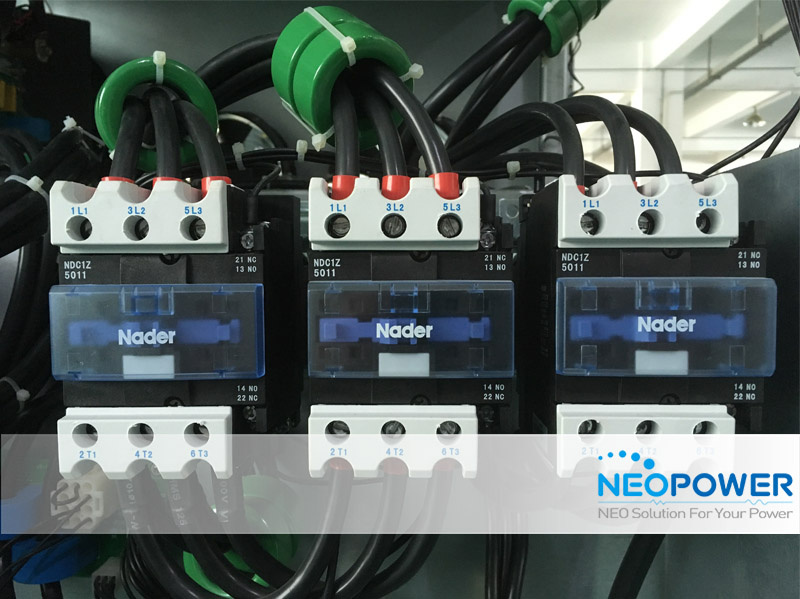

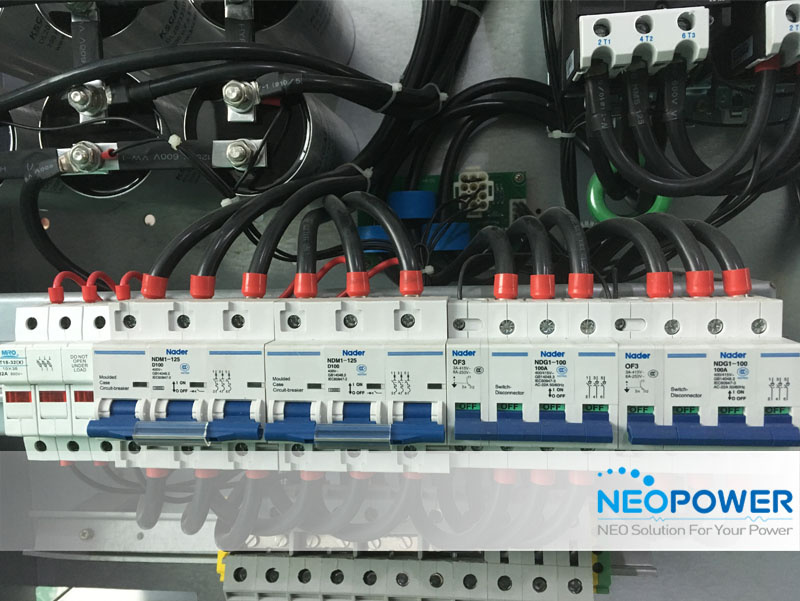

MILITARY BRAND BREAKERS & SWITCHES

FEATURES

Industrial Grade
Built-in Output Isolation Transformer
Max 8 Units Parallel Connection Available
6th Pack IGBT Module
Double DSP Control Units
Frequency Tracking, Phase-Locked
Bypass Mode Available
Optional Bypass Isolation Transformer
Built-in Manual Maintenance Bypass Switch
LCD Touch Screen & LED Display Options
