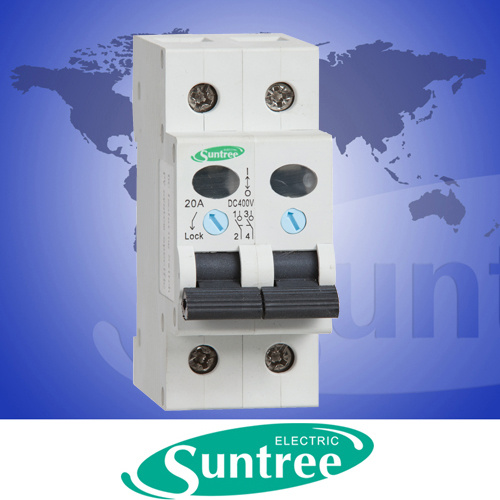

400V DC 2p Isolation Switch

Name: 400V DC 2p Isolation Switch
Brand: all-electronics-online.com
SKU: 680509095
Availability: InStock
Rating: 4.7 (84 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White
Price:	Specific Discussion
Packag:	Standard Packing
Origin Of Place:	China
Guarantee Time:	2years
Relative Humidity:	Less Than 90%
OEM Brand Name:	Your Brand Name Is Accept
Payment:	T/T, Western Union, L/C
Delivery Details:	Accordingto The Order Quantity That Buyer Order
Type:	Circuit Breaker
Operation:	Electric Type
Installation:	Fixed
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	DC Circuit Breaker
Structure:	DC MCB
Breaking Capacity:	3ka

Product Description

400V DC 2pole Switch/Photovoltaic DC MCB Circuit breaker

1. Photovoltaic DC MCB Circuit breaker
2. CB, Mechanical life: 20000times
3. Connection up to 25mm2
4. DC400V
5. From year 1992

Rated current(A):	1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63
DC operational voltage(V):	DC250V, DC 400V, DC500V, DC800V, DC1000V
Pole number(width):	1P, 2P, 3P+S, 4P
Breaking Capacity T=4ms	DC250V(1P): 10kA DC250V(2P): 20kA DC500V(2P): 10kA DC800V(3P+S): 6kA DC1000V(4P): 3kA
Instantaneous tripping type	Type B, type C
Rated impulse withstand voltage(Uimp)	4kV
Rated insulation voltage Ui	1000V
Ambient temperature	-25° C~+40° C
Accessories Available:	Auxiliary contact, Alarm contact
Mechanical life:	30, 000times
Connection:	25mm2
Standard:	IEC60898-2 GB10963.2

Xinchi Electric Co., Ltd. is the best one, which stands out above the rest in China intelligent low voltage electrical field, meanwhile it is a grouping company in the "city of electrical".There are four branch companies subordinate to it:Yueqing Xinchi Electric Sci-Tech Co., Ltd, Yueqing Imp&Exp Co., Ltd, HK Yangming Electrical Technology Co., Ltd and Wenzhou Litto smart Co., Ltd.Moreover.There are 320 workers, the annual output value breakthrough one hundred million, and the export value arrive at ten million.
We always pay attention to manufacture and sell automatic industrial and control system, modular intelligent electrical equipments, such as circuit breakers, residual circuit breakers, contactors, isolators, solid state relay, control and protect switch, automatic transfer switch, electrical fire detecting system, surger protect device, multifunctional meter and new energy system fittings etc.
Especially DC circuit breaker, DC isolating switch, DC fuse, busbar chamber, waterproof switch and other products with leading technical level in this field...We are the first domestic company with CE, CB, IEC, Nemko, SAA, TUV, ISI and CCC certification.Our products are widely used by domestic famous enterprises, and it has become a OEM partner of many international famous brands.

We have fully implement the IS09001:2008 quality management system.It adopts advanced production equipment and precision detecting equipment, introduces high-tech process and high technology talents to provides powerful guarantee for product development, quality upgrading and management innovation of the company.
In order to seek after the excellence, Xinchi will continue to carry on the spirit of "practice, honesty, innovation, active", insist on the policy of " technology promotes industry, Brand promotes industrial", and we believe in "Technology innovation, famous in the world", working hard to let"XINCHI electric brand"walk towards to the world.
