400va -1500va Line Interactive Standby Power Offline UPS for Computer
| Price: |
US $ 20.5/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
50/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
400-1500va |
| Input Voltage Range: |
145~280VAC/ 80VAC-150VAC |
| Communication Port: |
RS232 and USB, RJ45 |
| Display: |
LED |
| Output Voltage: |
220VAC/120VAC ±10% |
| Appliance: |
Computer, PCS, Computer Peripherals. |
| AVR Function: |
Yes |
| Transfer Time: |
Less Then 8ms |
| Auto Restart While AC Recovery: |
Yes |
| Front Panel: |
Optional |
| Phase: |
Single Phase |
| Type: |
Standby |
| Protection: |
Short Circuit |
| Application: |
Computer |
| Classification: |
Standby Power |
| Brand: |
Zlpower |
Product Description

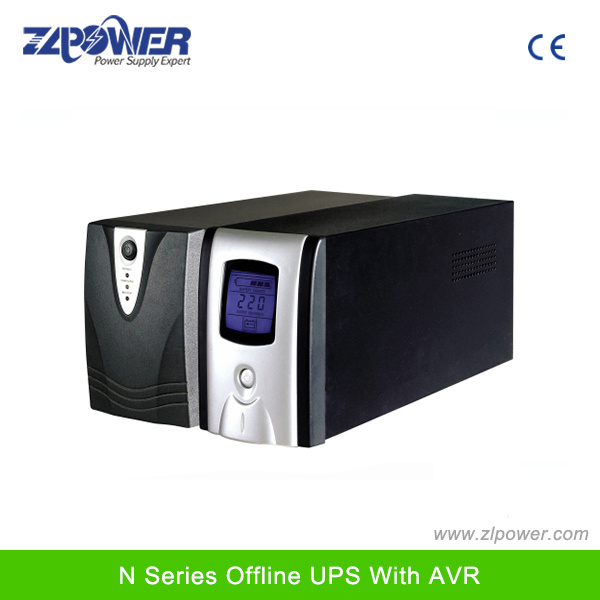

400va -1500va Line Interactive Standby Power Offline
UPS For Computer
Main Features
*Equipped with Boost and Buck AVR to stabilize input voltage.
*Wide input voltage range, AVR function.
*Built in DC start function enables UPS to start up without AC power supply.
*Intelligent battery management, support RS232 and USB communication monitoring;*
*Modem/Line Surge Protection: RJ11/RJ12/RJ45.
*Overload/ Over charge/ Short-circuit/Low battery automatic alarm protection.
*Auto restart while AC recovery.
Application
Widely used in protection of PC in govemment offices,education institues and SME
| Offline UPS with AVR MODEL | N400 | N500 | N650 | N800 | N1000 | N1200 | N1500 |
| Nominal Capacity | 400VA/240W | 500VA/300W | 650VA/390W | 800VA/480W | 1000VA/600W | 1200VA/720W | 1500VA/900W |
| Input | Voltage Range | 145~280VAC/ 80VAC-150VAC |
| Frequency | 50/60Hz |
| Output | Voltage Range | 220VAC/120VAC ±10% |
| Frequency | 50Hz/60Hz ±5% |
| Output Waveform | Sine Wave (AC Mode), Square Wave (Battery mode) |
| Transfer time | < 8ms |
| Battery | Type | Sealed free maintenance lead acid battery |
| Capacity | 12V,4AH *1PCS | 12V,7AH *1PCS | 12V,7AH *1PCS | 12V,9AH *1PCS | 12V,7AH *2PCS | 12V,9AH *2PCS | 12V,9AH *2PCS |
| Recharge Time | 8 hrs to 90% of capacity full load discharge |
| Protection | Auto protect |
| Back-up time(at a PC load with 15"monitor) | 10 minutes | 18 minutes | 18 minutes | 22 minutes | 30 minutes | 35 minutes | 35 minutes |
| Function | Auto voltage output on AC mode, Auto shutoff if short circuit or overload |
| DB-9 port,communication software | Optional RS232, RJ11, RJ45, USB |
| Protection | AC mode | Fuse |
| Short circuit | AC | Fuse |
| Invert mode | Auto protect |
| Alarm | Alarm | Battery discharge | Alarm beeps every four seconds |
| Low battery voltage | Alarm beeps every second |
| Overload | Alarm beeps continuously |
| Indicator light | Auto adjust | Green lighting: AC mode |
| Battery Discharge | Red lighting: Battery mode |
| Environment | Operating temperature | 0°C~40°C |
| Operating Humidity | 0-90% non-condensing |
| Noise | <35dB (1 meter distance) |
| UPS Dimension(L×W×H)mm | 250*90*145 | 291*90*145 | 330*90*145 | 340x122x190 |
| Net weight (N.W) | 4KG | 4.5KG | 5KG | 8.4KG | 9.4KG | 9.4KG |
| Gross weight (G.W) | 4.3KG | 4.8KG | 5.3KG | 8.7KG | 9.7KG |
9.7KG |
Any quesitons, pls contact Miss Hiber
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
