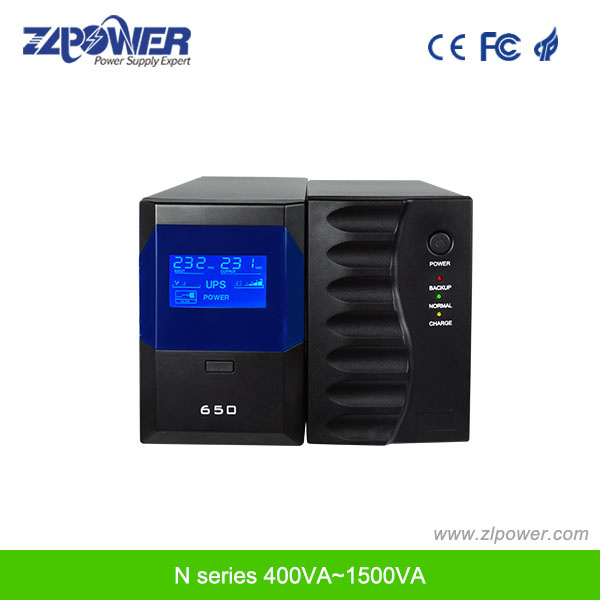

400va-1500va Offline UPS Standby UPS
| Price: |
US $ 18/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
N400-1500VA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dp-9, Cmoomunication Softwear: |
Ional RS232, Rj11, RJ45, USB |
| Auto Protection: |
Short Circuit, Overload, Over Voltage |
| Input Voltage: |
145~280VAC/ 80VAC-150VAC |
| Output Voltage: |
110V, 120V, 130V, 220V, 230V, 240V, |
| Frequency: |
50Hz, 60Hz |
| Transfer Time: |
< 10ms |
| UPS Battery: |
Free Maintenance Sealed Lead Acid Battery |
| Function: |
Auto Voltage Output on AC Mode, |
| Applucation: |
Home, Computer, Printer, POS, Comouter Peripherals |
| Wave Form: |
Square Wave |
| Phase: |
Single Phase |
| Type: |
Standby |
| Protection: |
Short Circuit |
| Brand: |
Zlpower |
Product Description
400va-1500va Offline UPS standby UPS Detailed Product Description
Built in AVR and Charger
Off mode charging
Overload protect
Line interactive UPS
400va-1500va nobreaks ups
N series line interactive ups nobreaks/offline UPS is with LED indicators display and built in AVR, from 400VA to 1500VA, competitive price, smart size and low power consumption. Mainly used for computer, PCs, computer peripherals.
Offline PC UPS with AVR 400VA-1500VA off mode charging RS232 RJ45 USB ports
Main Features:
Equipped with Boost and Buck AVR to stabilize input voltage.
Wide input voltage range, AVR function.
Built in DC start function enables UPS to start up without AC power supply.
SMD technology to save space, light weight.
Intelligent battery management.
Smart RS-232 or USB communication port with free download software from Internet.
Modem/Line Surge Protection: RJ11/RJ12/RJ45.
Overload/ Over charge/ Short-circuit protection.
Low battery alarm, LED status display.
IEC cables connect with PC.
Auto restart while AC recovery.

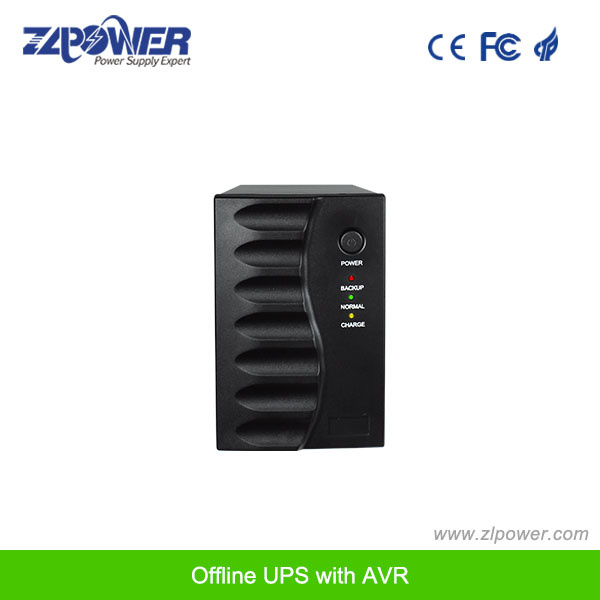

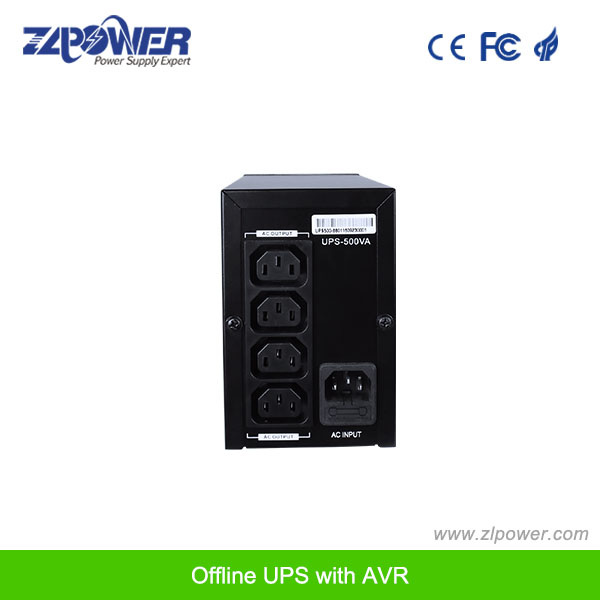

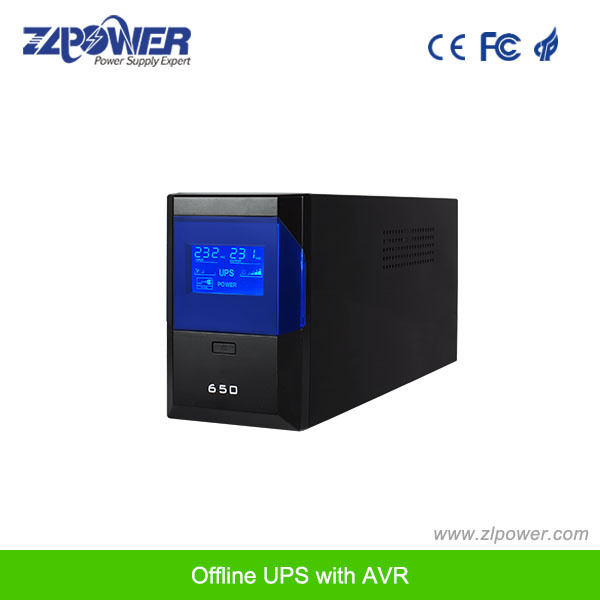

Photos:
Technical Specification for N series line interactive UPS with AVR: | MODEL | N400 | N500 | N650 | N800 | N1000 | N1200 | N1500 |
| Nominal Capacity | 400VA/240W | 500VA/300W | 650VA/390W | 800VA/480W | 1000VA/600W | 1200VA/720W | 1500VA/900W |
| Input | Voltage Range | 145~280VAC/ 80VAC-150VAC |
| Frequency | 50/60Hz |
| Output | Voltage Range | 220VAC/120VAC ± 10% |
| Frequency | 50Hz/60Hz ± 5% |
| Output Waveform | Square Wave |
| Transfer time | < 10ms |
| Battery | Type | Sealed free maintenance lead acid battery |
| Capacity | 12V, 4AH *1PCS | 12V, 7AH *1PCS | 12V, 7AH *1PCS | 12V, 9AH *1PCS | 12V, 7AH *2PCS | 12V, 9AH *2PCS | 12V, 9AH *2PCS |
| Recharge Time | 8 hrs to 90% of capacity full load discharge |
| Protection | Auto protect |
| Back-up time( Full load ) | 3~5 min | 5~7 min | 7~10 min | 6~8 min | 5~7 min | 8~10 min | 10-12min |
| Function | Auto voltage output on AC mode, Auto shutoff if short circuit or overload |
| DB-9 port, communication software | Optional RS232, RJ11, RJ45, USB |
| Protection | AC mode | Fuse |
| Short circuit | AC | Fuse |
| Invert mode | Auto protect |
| Alarm | Alarm | Battery discharge | Alarm beeps every four seconds |
| Low battery voltage | Alarm beeps every second |
| Overload | Alarm beeps continuously |
| Indicator light | Auto adjust | Green lighting: AC mode |
| Battery Discharge | Red lighting: Battery mode |
| Environment | Operating temperature | 0C~40C |
| Operating Humidity | 0-90% non-condensing |
| Noise | < 35dB(1 meter distance) |
| UPS Dimension(L× W× H)mm | 325*90*150 | 335*100*150 | 345*125*190 |
| Net weight (N. W) | 4.5KG | 6.5KG | 6.8KG | 7.5KG | 11KG | 12KG | 13KG |
| Gross weight (G. W) | 4.7KG | 6.7KG | 7KG | 7.7KG | 11.3KG | 12.3KG | 13.3KG |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
