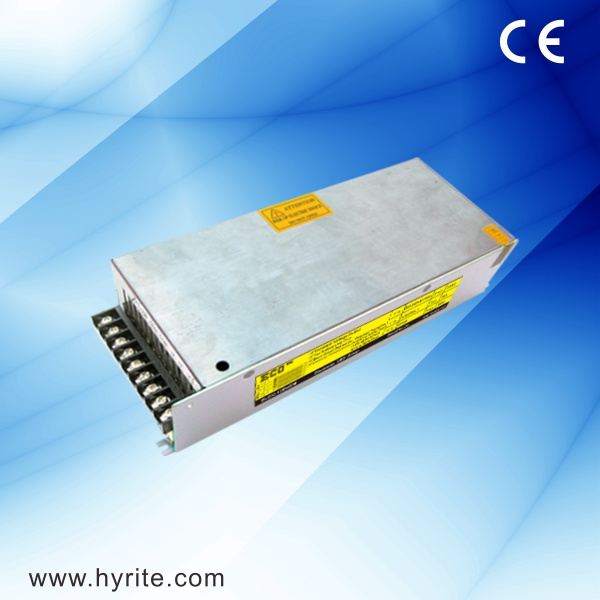

400W 24V LED Power Supply for LED Module

Name: 400W 24V LED Power Supply for LED Module
Brand: all-electronics-online.com
SKU: 748570825
Availability: InStock
Rating: 4.7 (58 reviews)

Price:	US $ 17.24-18.15/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-24E400B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	220-240
Output Voltage:	24V
Output Current:	16.7A Max
Size:	20011050mm
Power Factor:	Low
Installation:	Indoor
IP Rating:	IP20
Cooling:	Free Air Convection
Certificates/Standards:	CE
Withstand Voltage:	I/P~O/P:3kvac, 1 Minute
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer
Power Supply Voltage:	AC220-240V
Brand:	Eco

Product Description

400W 24V PWM LED Power Supply with 2 Years Warranty

1.Features of LED Power Supply:
- Constant voltage output LED Power Supply
- Indoor LED Power Supply.
-100%burn-in test
-Mesh case(or electric fan) for ventilation

2.Specifications of LED Power Supply

Model no.	ELDV-24E400B
Input voltage	220-240VAC 50Hz
Max. power	400W max
Output type	Constant voltage
Dimming	No
Built-in active PFC	No
Power factor	Low
Efficiency	78%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	24VDC ± 5%
Output current	16.7A max
Overload protection	105-150% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:3kVAC, 1 minute
Operating temperature	-10~+60,100%Pout@0~45, 60%@60 , 80%@-10
Installation	Indoor
IP rating	IP20
Cooling	Free air convection
Certificates/standards	CE
Connection input/output	Terminal [for LPS-, 'Input:18AWG3 (30cm) / Output:18AWG*2' (30cm) ]
Dimensions(LWH)	26011070 mm
Weight(kg)	0.3500
Packing information	10pcs/carton, G.W.8kg

3.Applications of LED Power Supply:
*Office lighting, Artwork lighting, Display case
*Home lighting
*Commercial lighting, such as Down light, Underground lamp, Panel light, Spotlight, Wall washer, etc.
*Hotel, Restaurant lighting
*Other public lighting

4. Important Parameter of LED Power Supply:
Store Temperature: -25~75° C
Working Temperature: -10~40° C
Work environment: Indoor installations
Waterproof Rating: IP20
