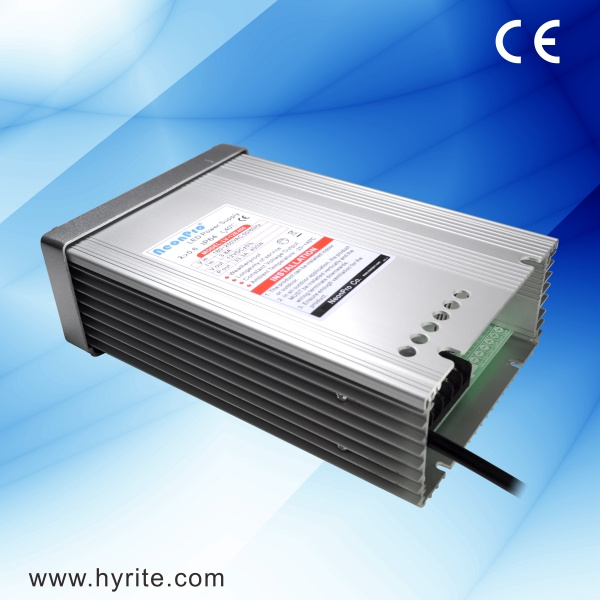

400W 36V Switching Power Supply for LED Modules

Name: 400W 36V Switching Power Supply for LED Modules
Brand: all-electronics-online.com
SKU: 748608585
Availability: InStock
Rating: 4.3 (93 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LV-36E400
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	400W
Output Voltage:	36V
Output Current:	11.1A
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer
Power Supply Voltage:	AC180-250V
Brand:	Neonpro

Product Description

400W Stable Quality Constant Voltage Switching Power Supply

1. Features of LED Driver:
-Designed for outdoor signage, decoration or lighting applications.
- Constant voltage output LED Driver.
- Rainproof LED Driver.
- Special heat dissipation design with aluminium housing and hot start ventilating fan.
- Safety design with separated line input power cord and low voltage output terminals, preventing electrical shock.
- Output voltage adjustable.

2. Specifications of LED Driver:Model no.Input voltageMax. powerOutput typeDimmingBuilt-in active PFCPower factorEfficiencyOutput voltageOutput currentOperating temperatureInstallationIP ratingCoolingConnection input/outputDimensions(L*W*H)Weight(kg)Packing information

LV-36E400

180-250 VAC 50/60 Hz

400 max

Constant voltage

Low

83%

36VDC ± 5%

11.1A

-25~40

Outdoor rainproof

IP 24

Built-in electric fan

Input:0.75mm²x3 (30cm) / Output:terminal(six)

207*140*66 mm

1.1250

20 Pcs/ Carton, G.W 22.5 KG

3. Applications of LED power supply:
*Office lighting, Artwork lighting, Display case
*Home lighting
*Commercial lighting, such as Down light, Underground lamp, Panel light, Spotlight, Wall washer, etc.
*Hotel, Restaurant lighting
*Other public lighting

4. Important Parameter of LED power supply:
Store Temperature: -25~75° C
Working Temperature: -25~40° C
Work environment: Indoor or outdoor installations
Waterproof Rating: IP45

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
