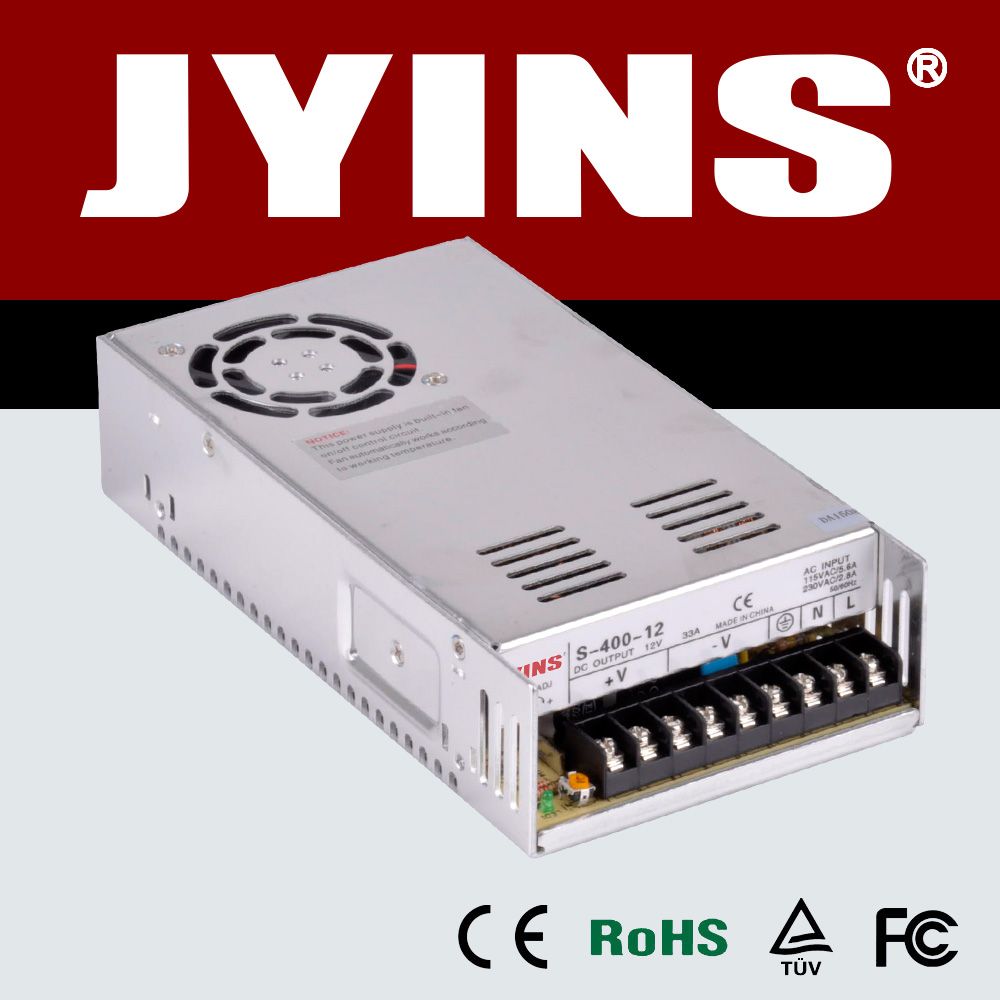

400W 5V/12V/15V/24V/36V LED AC/DC Switching Mode Power Supply
| Price: |
US $ 18-21/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
S-400W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
18 Months |
| OEM, ODM: |
Accepted |
| Case Material: |
Aluminium |
| Output Voltage: |
5V, 12V, 15V, 24V, 27V48V |
| Input: |
110/220VAC Selected by Switch |
| Certificate: |
CE |
| Type: |
Single Output |
| Output Frequency: |
47-63Hz |
| Power: |
400W |
| Efficiency: |
80% |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
301 - 400W |
| Input Voltage: |
Full Range |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Level 1 Power Distribution Equipment |
| Certification: |
RoHS |
| Brand: |
Jyins |
Product Description
400W 5V/12V/15V/24V/36V Led Ac/Dc Switching Mode Power Supply
1. Our company is a professional manufacture and OEM.
Our products obtain CE and ISO9001 Certificate and according to IEC 521 international standard to.
2. Low price and high reliability
105 C output capacitor
AC input power suitable for the world
Hight efficiency and low operation temperature
Soft-start current can reduce the AC input impact effecticly
With Short-circuit and owwerload protection
Compact size, light weight
100% full-load burning test
Installed with EMI filter, minimum wave
Low price and high reliability105 output capacitorAC input power suitable for the worldHight efficiency and low operation temperatureSoft-start current can reduce the AC input impact effecticlyWith Short-circuit and owwerload protectionCompact size, light weight100% full-load burning testInstalled with EMI filter, minimum wave.
| Model / Specification | SP-400-9 | SP-400-12 | SP-400-13.5 | SP-400-24 | SP-400-48 |
| DC output voltage | 9V | 12V | 13.5V | 24V | 48V |
| Output voltage error | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% |
| Rated output current | 43A | 33A | 29A | 17A | 8.3A |
| Output current rage | 0-43A | 0-33A | 0-29A | 0-17A | 0-8.3A |
| Wave and noise | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p |
| Inlet stability | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| Load stability(Note5) | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| DC output power | 387W | 396W | 400W | 400W | 400W |
| Efficiency | 78% | 83% | 85% | 85.5% | 86% |
| Adjustable range for DC voltage | ± 10% | ± 10% | ± 10% | ± 10% | ± 10% |
| AC input voltage range | 170~264VAC |
| AC Input current | 5.6A/115V 2.8A/230V |
| AC impulse current | 40A/230V |
| Leakage current | < 3.5mA/240VAC |
| Overload protection | 105%~135% Type : PULSING HICCUP SHUTDOWN Reset: auto recovery |
| Over-voltage protection | 13.8~16.2V | 15.5~18.2V | 18~21V | 27.6~32.4V | 31~36.5V | 57.6~67.2V |
| Fan control, O. T. P. | RTH3> =60º C~70º C FAN ON, < =55º C~60º C FAN OFF, > =80º C~85º C Cut off output |
| Temperature coefficient | ± 0.03%º C(0~50º C) |
| Setup rise hold up time | 1.5s, 50ms, 20ms |
| Vibration | 10~500Hz, 2G 10min. /1cycle, Period for 60min, EACH AXES |
| Withstand voltage | Input and output interval : 3KVAC, Input and enclosure : 1.5KVAC Output and enclosure : 0.5KVAC |
| Isolation resistance | Input and output interval , Input and enclosure , Output and enclosure : 500VDC/100M Ohms |
| Working temperature and humidity | -10º C~+50º C, 20%~90%RH |
| Store temperature and humidity | -20º C~+85º C, 10%~95%%RH |
| Overall dimension | 241 x 124 x 65mm |
| Weight | 1.2Kgs |
| Safety standards | UL1950, TUV EN60950 |
| EMC standards | EN55022, EN1000-4, 2, 3, 4, 5, 6, 8, 11 IEC100-3-2 |
Note: 1. The testing condition for the parameter above is: 230VAC input, rated load, 25º C 70%Rh, Humidity
2. Error, include the setting error, line stability and load stability. (Note: 5)
3. Wave test: adopting" A12" double wire for 20MHz, and 0.1uF& uF capacitor short-circuit for interrupting
4. Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
5. Load stability test: The load is from 0% to 100%, others 60%.
6. C2 , 3, 11must be knocked down. |
