400W AC DC Power Supply for Payment Terminal/Self-Service Kiosk

Name: 400W AC DC Power Supply for Payment Terminal/Self-Service Kiosk
Brand: all-electronics-online.com
SKU: 733283832
Availability: InStock
Rating: 5 (123 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPAD401M24-6A
Efficiency:	80%
Output Voltage:	24VDC
Output Type:	Multiple
Warranty:	2 Years
Output Power:	301 - 400W
Connection Mode:	Parallel Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Input Voltage:	90~280VAC
Brand:	Goldpower

Product Description

400W AC/DC Power Supply for Payment Terminal/Self-Service Kiosk is a high efficiency self-service equipment power supply,applied to Payment Terminal equipment,Self-Service Kiosk,Restaurant Ordering Machine,Veding Machine.

Features:
1. Multiple Outputs
2. Applied to global grid
3. Low consumption for standby,high efficiency up to 90%,cost-effective.
4. Support hot plug,module designed,the installation easy to maintain,complete protection.
5. High reliability,MTBF>20,0000Hours.

Application:
1. Payment Terminal equipment, ATM
2. Rail transportation equipments.
3. Self-service equipments.
4. Self-Service Kiosk,Restaurant Ordering Machine,Veding Machine

Specification:

Input
Item	Parameter	Unit
Input voltage range	90~280	Vac
Input frequency	48~65	Hz
Power factor	0.97

Output
Output voltage range	+12,+24,+5V	Vdc
Output current range	0~12	A
Output power	default: 400	W
Output efficiency	80	%

Ambient
Working temperature	-30~55	ºC
Storage temperature	-40~80	ºC
Relative hunidity	10~95	%
Altitude	0~5000	m
Atmosphere pressure	54~106	KPa
Cooling	Air forced cooling

Mechanical
Dimension(LWH)	293.420090 mm
Weight(KG)	≤<3KG

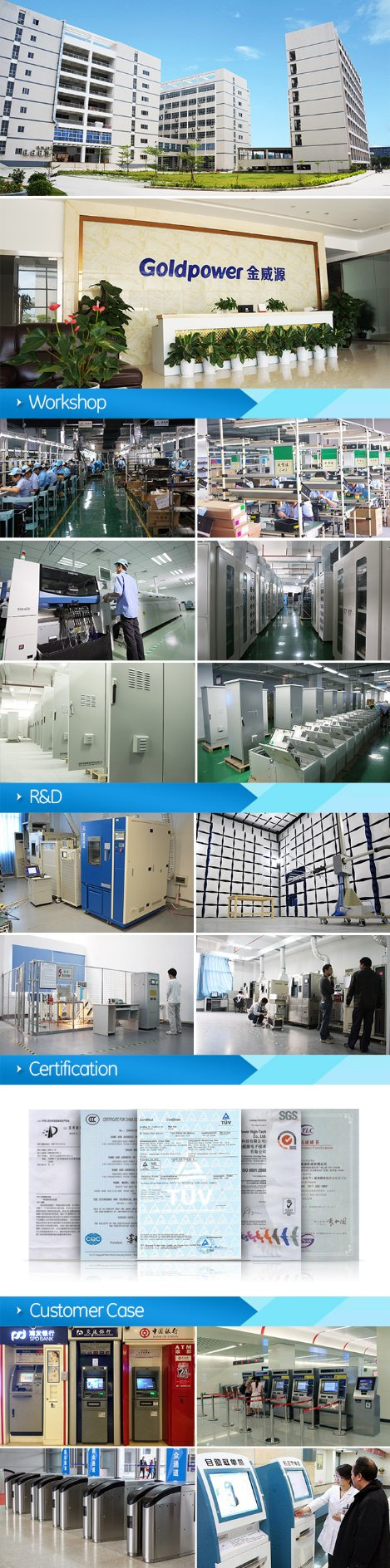

About us:

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
