400W Aluminum Rainproof LED Power Supply for Wall Washer

Name: 400W Aluminum Rainproof LED Power Supply for Wall Washer
Brand: all-electronics-online.com
SKU: 772501175
Availability: InStock
Rating: 4.9 (74 reviews)

Price:	US $ 15-15.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LHDV-24E400C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	400W LED Power Supply
Input Voltage:	180-250 VAC 50/60 Hz
Output Current:	16.6A Max
Output Voltage:	24VDC ± 5%
IP Rating:	IP23
Installation:	Outdoor Rainproof
Weight(Kg):	1.05
Packing Information:	20 PCS/ Carton, G.W 22.5kg
Cooling:	Built-in Electric Fan
Dimensions(LWH):	185.5112.556.5mm
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Regulator Voltage
Circuit Structure:	PWM Controlled
Power Supply Voltage:	AC180-250V
Brand:	Neonpro

Product Description

400W Aluminum Constant Voltage Rainproof LED Power Supply for Wall Washer

Feature of 400W Rainproof LED Power Supply for Wall Washer:
1. High transfer efficiency>85%
2. Compact size, easy for installation.
3. Special heat dissipation design with aluminium housing and hot start ventilating fan.
4. Safety design with separated line input power cord and low voltage output terminals, preventing electrical shock.

Application of Rainproof 400W LED Power Supply for Wall Washer:
LED Signage
LED Sports Lighting
LED Industrial Lighting
LED Cobra Head Lighting
LED Architectural Lighting
LED Decoration or lighting applications.
For LED module, strip, flex ribbon, bar light, pixel lamp, LED-neon tube, wall washer, panel light, etc...

Specification of Rainproof 400W LED Power Supply for Wall Washer:

Model no.	LHDV-12E400
Model series	LHDV
Input voltage	180-250 VAC 50/60 Hz
Power	400 W max
Output type	Constant voltage
Efficiency	83%
Output voltage	12VDC ± 5%
Output current	33.33A max
Operating temperature	-25~40ºC
Installation	Outdoor rainproof
IP rating	IP 24
Cooling	Built-in electric fan
Dimensions(LWH)	185.5112.556.5 mm
Weight(kg)	0.7500
Packing information	20 Pcs/ Carton, G.W 15 KG

FAQ of Rainproof 400W LED Power Supply for Wall Washer:
1. Shipment: Ocean or air transportation, international express
2. Normal lead time: 1 day for in stock and 10-15 days for out of stock product
3. Price term: FOB, C&F, EXW; 30% before production, 70% before shipment.
4. Supply ability: 50000 units /month
5. MOQ: 1 carton(samples are available)
6. Discounts: We offer some discount for big quantity.
7. OEM and ODM service are available.

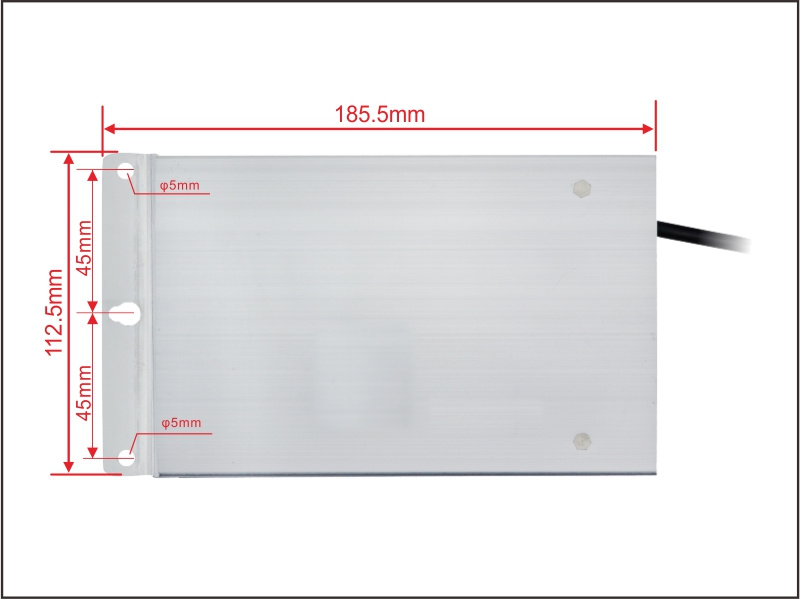

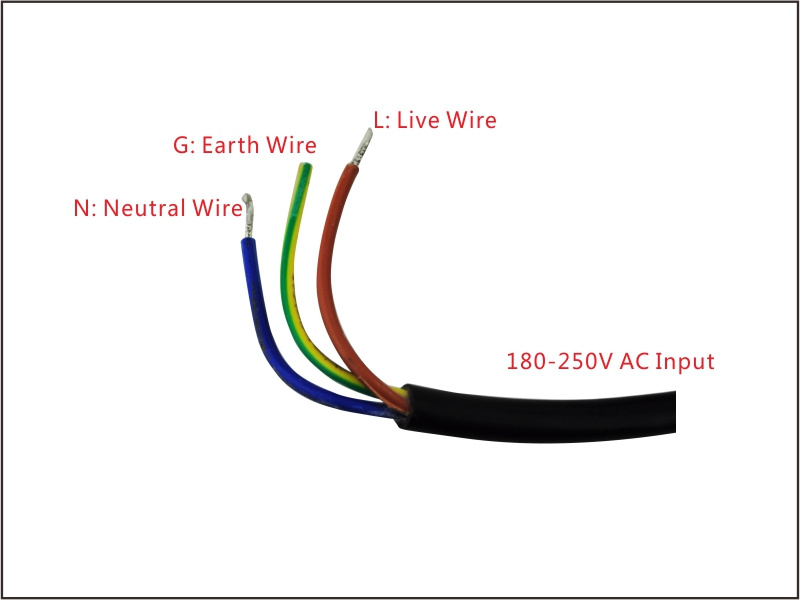

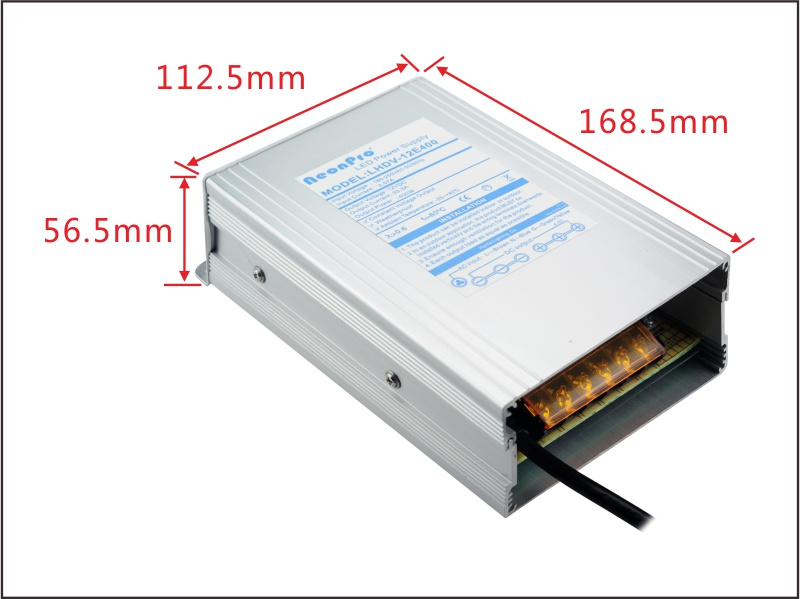

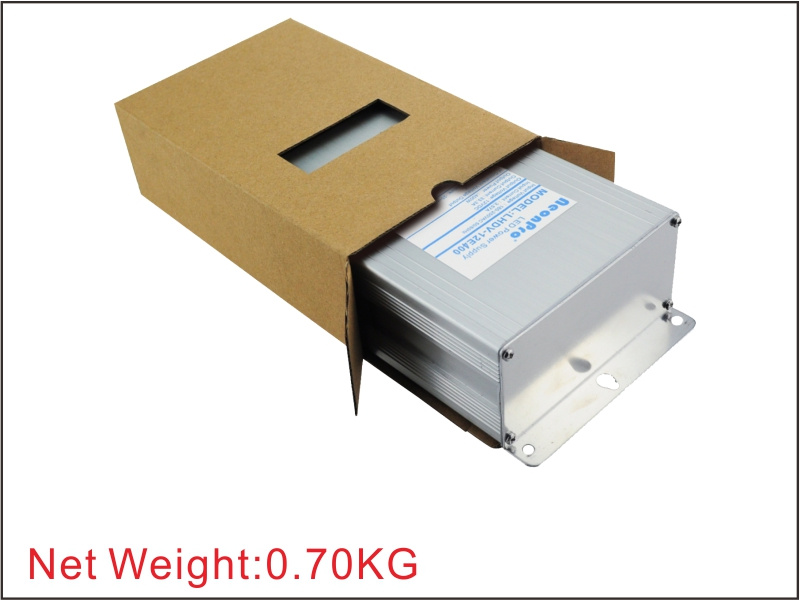

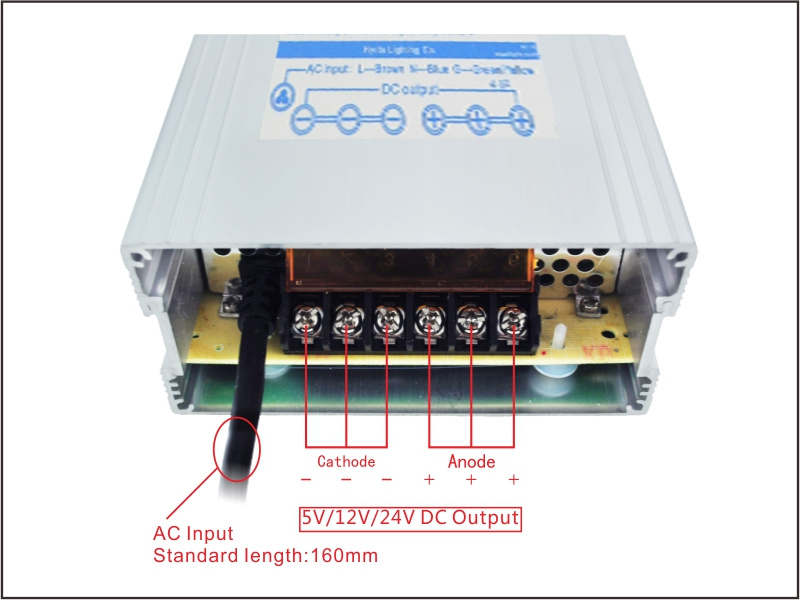

Product Pictures of Rainproof 400W LED Power Supply for Wall Washer:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
