400W Mini Brushless DC Gear Motor with CE

Name: 400W Mini Brushless DC Gear Motor with CE
Brand: all-electronics-online.com
SKU: 743287145
Availability: InStock
Rating: 4.5 (35 reviews)

Price:	US $ 70.2-74/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	5BLD400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Speed:	3000rpm
Power:	400W
Voltage:	36V/48V72V
Rated Torque:	1.27n.M
Motor Life:	>5000h
Dimensions Of Device:	90mm
Other:	Can Be Customized
Application:	Power Tools
Operating Speed:	Low Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Certification:	CCC, CE, UL, Cu
Brand:	GS

Product Description

400W 90mm Brushless DC Motor
Introduction

Brushless DC motor (BLDC) is made up of motor and driver, which is a kind of typical product of mechanical and electrical and electrical integration.It is high regarded by market as its small volume, low noise, high efficiency, wide range of speed control and steady working state with less inaccuracy.
Specification

Note:

1. The Datasheet is only for 400W bldc motor's info as reference.
Motor Voltage6V to 220V, Power6W to 550W(DC/BLDC) is also can be provided.
2. Motor voltage, power and speed will be customized according to your request under the allowed circumstance of adoptable dimension.

View Of Item

About Greensky Mechanical

History: Greensky Mechanical was founded in 2012 with purchasing of a 15 year old cooperative factory in Zhejiang Province. Greensky Power brought new management concept to the new joint company and increase the quality of the motors as Greensky Power only provides best quality and best service to the society.
Introduce: Greensky Mechanical Co., ltd is a subsidiary company of Greensky Power which is producing micro AC and DC gear motor, small AC gear motor, precision planetary gearbox for servo motor, and it has capability to design and develop the micro motor, customized motor and precision gearbox, motor controller with high quality.
Philosophy:We save cost by increasing the efficiency of production and delivery. "Once and forever" is our goal to serve customers in the world. Once we do business with customer, we will do business forever.

Greensky's Advantage

On the site you can find a range of renewable products including AC/DC motor,AC Induction Motor,Reversible Motor,Blake Motor,Speed motor,AC Angel Motor,Gear Motor,Planetary Gear Box,Worm Gear Box and their relevant components.

If you have any other questions, please feel free to contact us.

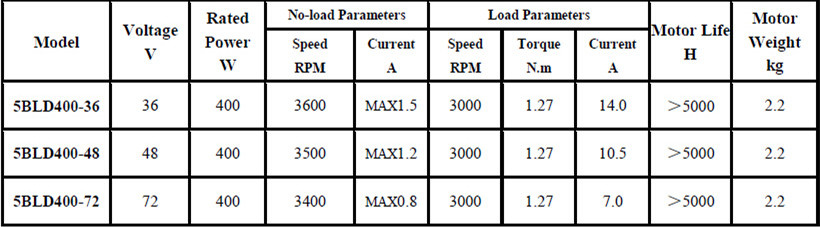

Model	Voltage V	Rated Power W	No-load Parameters		Load Parameters			Motor Life H	Motor Weight kg
Model	Voltage V	Rated Power W	Speed RPM	Current A	Speed RPM	Torque N.m	Current A	Motor Life H	Motor Weight kg
5BLD400-36	36	400	3600	MAX1.5	3000	1.27	14.0	>5000	2.2
5BLD400-48	48	400	3500	MAX1.2	3000	1.27	10.5	>5000	2.2
5BLD400-72	72	400	3400	MAX0.8	3000	1.27	7.0	>5000	2.2
