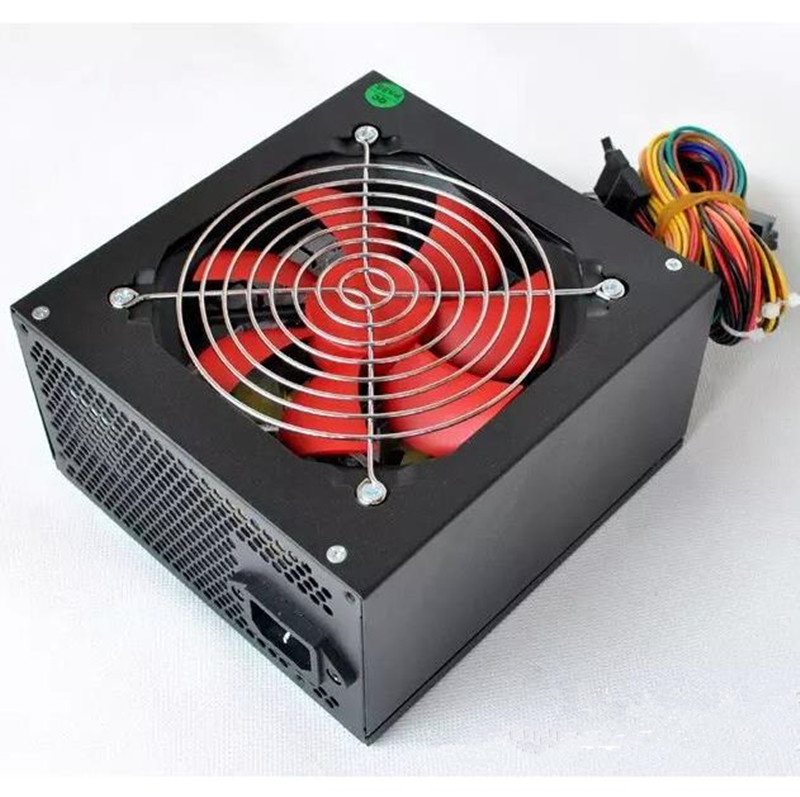

| Prod Model: |
DD-007 |
| Configuration Type: |
Standard / Optional |
| Color Of Shell: |
Black |
| Color Of Fan: |
Red |
| PCS Of Fan: |
1 Piece |
| Sample: |
Available |
| OEM: |
Available |
| Target Market: |
Middle East, Asia, Africa, South America |
| Output Type: |
Single |
| Warranty: |
>2 Years |
| Output Power: |
401 - 500W |
| Input Voltage: |
220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CCC |
| Brand: |
OEM |
Product Description
We are manufacturer of psu and portable power bank, since 2014. Good quality products, factory price, first-class service, win-win business goal, honest quality, which lets us obtain high reputation in this field. And our buyers' net is covering almost Asia, Middle East, Africa and South America!

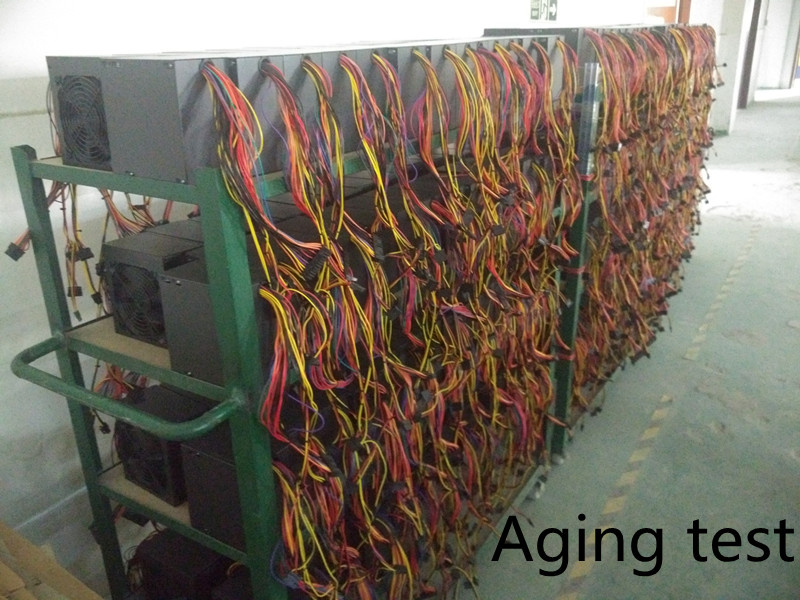

All our power supply are with over-voltage, under-voltage, over-current, over power and short circuit protection! What is more, all our power supply will be getten through strict aging test, before shipping out! Quality is the most important guarantee for long-term win-win cooperation.
Product Features:
1. Design according to Intel power supply (SPS)SFX 12V 2.31 version standard, fully compatible with the Intel Pentium 4.28 & ADM Sempron CPU.
2. Be suitable to high-level family and commercial PC series.
3. With over current/over voltage/short current/over power protection.
4. Low noise and big fan to discharge heat.
5. Input and output used double-filtering, so this power supply is low ripple, low noise and high efficiency.
6. Safety Approval: CCC.
7. Electromagnetic compatibility bate resonance wave current is fit for electromagnetic compatibility B level criterion of Chinese, GB17625.1-98 request concerning wave current.
Technical parameters:
input | voltage | 180Vac-264Vac | |
Frequency | 47-63HZ | |
Current | 3.0A(Max) At 230Vac /5.0A(max) At 115Vac | |
Inrush Current | <50A Ar 230Vac/5.0A(Max) At 115Vac | |
output | Rated voltage | +12V | +12V | +5V | -5V | -12V | +3.3 | +5Vsb |
Max current | 18A | 24A | 15A | | 0.3A | 14A | 2A |
Peak current | 20A | | | | | | |
Power | Rated power | 400W | | 00p | | 450W | |
Output wire | linker | 20+4pin | 4+4P | HDD | SATA | 6P | 8P | |
Quantity | 1 | 1 | 3 | 3 | 1 | | |
Standard configuration:
| 20+4 pin | 1 piece |
| SATA | 3pcs |
| IDE | 3pcs |
| 4+4pin | 1 piece |
| 6pin | 1 piece |
| Normal SECC case | 0.5mm |
| Size of fan | 12cm |
| Quantity of fan | 1 piece |
| Quantity of socket | 1 pice |
| Color of shell | Stoving varnish black shell |
| Package | Transparent PP bag |
Package:
10pcs/CTN, carton specification: 46cm*39cm*16.5cm
20GP container: 9600pcs, 40GP container: 20000pcs, 40HP container: 22000pcs
Service:
1. Your inquiry related to our products or prices will be replied within 24 hours.
2. OEM or ODM are welcomed. OEM brand is available.
3. Distributor ship is offered for your unique design and some our current model
4. Protection of your sales area. Ideas of design and all your private information
Our advantage:
1. Small quantity we accept.
2. Well and high quality control.
3. Factory price.
4. OEM / Sample is available.
5. Considerate service.
6. Delivery in time.
7. We will offer 1% of your order quantity as spare parts together for you.

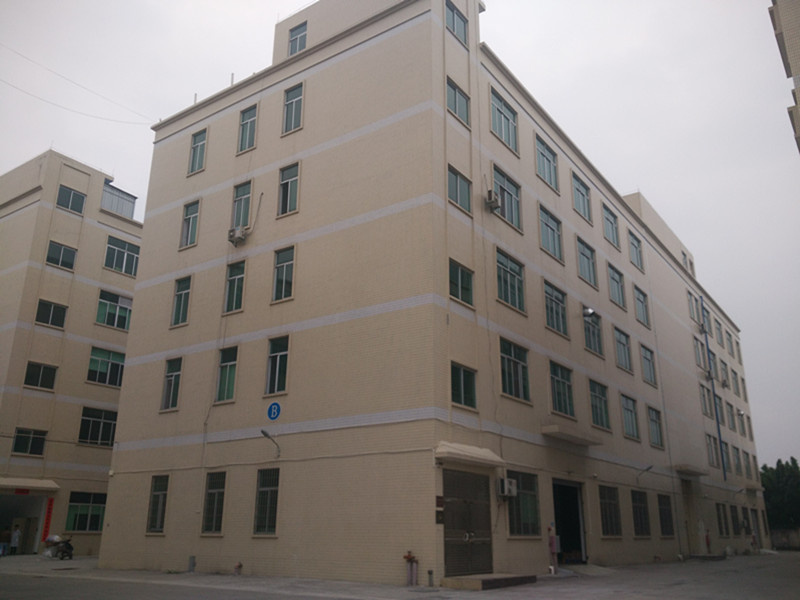

Welcome to visit our factory freely!
Guangzhou Guanglai Electronic Co., Ltd. Was founded in 2014. After years of development, we are becoming a leading manufacturer and exporter in this field in China. We have our own factories producing PC power supply, PC case, Wired/Wireless Mobile Power Bank. Besides, we also have very good relationship with many qualified manufacturers of PC and Smart phone accessories. All our products achieved CE, FCC and RoHS certification.
To satisfy our customers, our competitive advantages are coming from:
- Excellent quality, very reasonable price and professional products.
- OEM and ODM service
- Sophisticated R&D and consulting team
- Flexibility in meeting clients'demands on details
- well execution and management in proceeding orders.
Due to these above competitive advantage, our company have gained excellent reputation in the worldwide market, we have established long-term and stable business relationship with customers in Europe, Middle-East, South America, Australia, the USA and Africa.
Guanglai---Your Reliable Partner!
