400W Rainproof LED Driver for LED Strips with Bis

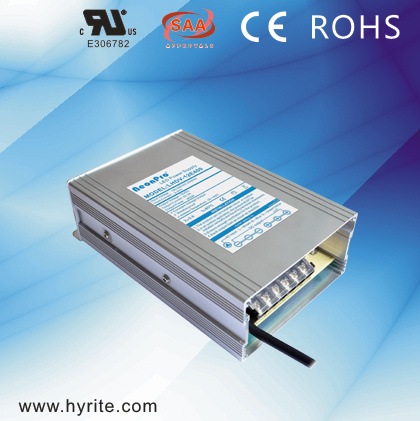

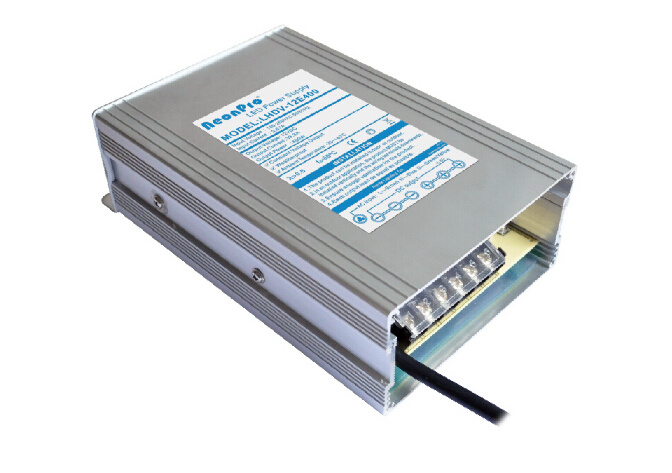

Name: 400W Rainproof LED Driver for LED Strips with Bis
Brand: all-electronics-online.com
SKU: 783831345
Availability: InStock
Rating: 4.6 (64 reviews)

Price:	US $ 13.5-15.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LHDV-12E400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.:	Lhdv-12e400
Input Voltage:	180-250 VAC 50/60 Hz
Output Current:	33.3A Max
Output Voltage:	12VDC
IP Rating:	IP45
Installation:	Outdoor Rainproof
Weight(Kg):	0.9600
Packing Information:	20 PCS/ Carton, G.W 20.5kg
Cooling:	Built-in Electric Fan
Dimensions(LWH):	185.5112.556.5 mm
Usage:	Vehicle
Output Type:	Triple
Driving Method:	LED Regulator Voltage
Circuit Structure:	Electronic Step-down Transformer
Certification:	Bis
Power Supply Voltage:	AC180-250V
Brand:	Neonpro

Product Description

400W 12V Rainproof Aluminum LED driver CE

1. Features of LED driver
- Designed for outdoor signage, decoration or lighting applications.
- Constant voltage output.
- Rainproof.
- Excessive heat dissipation aluminium housing and hot start ventilation fan.
- Safety design with separated AC input power cord and DC output terminals, preventing electric leakage or short circuit by water.
- Output voltage adjustable.
- Cost effective model for outdoor applications.

2. Technical Specification of LED driver

Model no.	LHDV-12E400
Model series	LHDV
Input voltage	180-250 VAC 50/60 Hz
Power	400 W max
Output type	Constant voltage
Power factor	Low
Efficiency	83%
Output voltage	12VDC ± 5%
Output current	33.3A max
Operating temperature	-25~40ºC
Installation	Outdoor rainproof
IP rating	IP23
Cooling	Built-in electric fan
Dimensions(LWH)	185.5112.556.5 mm
Weight(kg)	0.7500
Packing information	20 Pcs/ Carton, G.W 15 KG

3. Applications of LED driver:
*Office lighting, Artwork lighting, Display case
*Home lighting
*Commercial lighting, such as Down light, Underground lamp, Panel light, Spotlight, Wall washer, etc.
*Hotel, Restaurant lighting
*Other public lighting

4. Important Parameter of LED driver:
Store Temperature: -25~75° C
Working Temperature: -25~40° C
Work environment: Indoor or outdoor installations
Waterproof Rating: IP23

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
