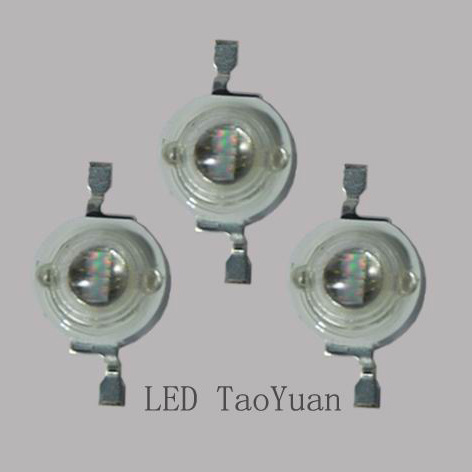

405nm High Power UV LED Diode

Name: 405nm High Power UV LED Diode
Brand: all-electronics-online.com
SKU: 699182635
Availability: InStock
Rating: 4.5 (34 reviews)

Price:	US $ 0.1/Piece
Trade Terms:	FOB,others
Min Order:	10/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TY-6W 405nm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Angle:	120degrees
Power Dissipation:	3000MW

Product Description

UV 405nm 6W Products:
A. Lens Color: Water Clear
B. Emitted Color: Ultra Violet
C. Optincal Radiation: 360mW-380mW
D. DC Forward Current (IF): 1200mA
E. Color Wavelength: 405-410nm
F. DC Forward Voltage (VF): 3.8-4.7V DC
G. Viewing Angle: 120 Degree
UV 405nm 6W Product Parameters:

Part Number	Emitted Color	Voltage Vf(v)	Current(mA)	Wave Length(nm)	Output power(mW)	Angle 2θ 1/2
TY-405nm6W	Purple	3.80-4.60	1200mA	365-370nm	360-380mW	120

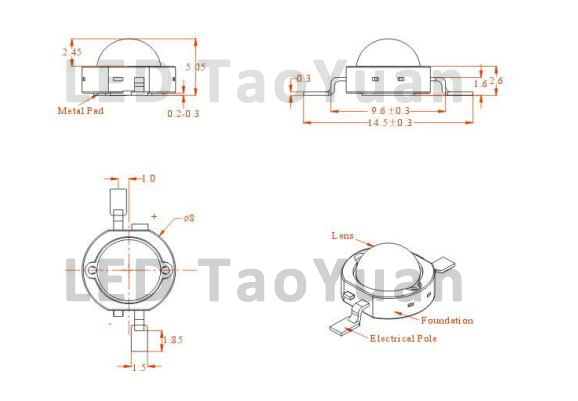

Product Dimension

TAOYUAN ELECTRON (HK) LIMITED is specializing in the production and sales. Our main products have: High power UV LED, UV LED series (UV LED 3W, LED 10W, LED 30W, LED 50W, LED 100W, UV LED 200W). UV LED lamps, UV curing lamps, UV flashlights, UV Solutions. Collected advantages of exquisite technology and experienced talents, we are committed to further research and manufacture, to create new LED world.

The factory has passed the certification and operated strictly according to the requirements of authentication system, and our LED Products are characterized with low power consumption, low attenuation, high brightness, long life and so on.

TAOYUAN ELECTRON (HK) LIMITED pursues the principle of "Customer First, Customer Supreme". We have advantage of reasonable price, fast delivery, quality assurance, wide variety of goods. We sincerely hope to cooperate with the merchants in home and abroad and to create a better tomorrow.
