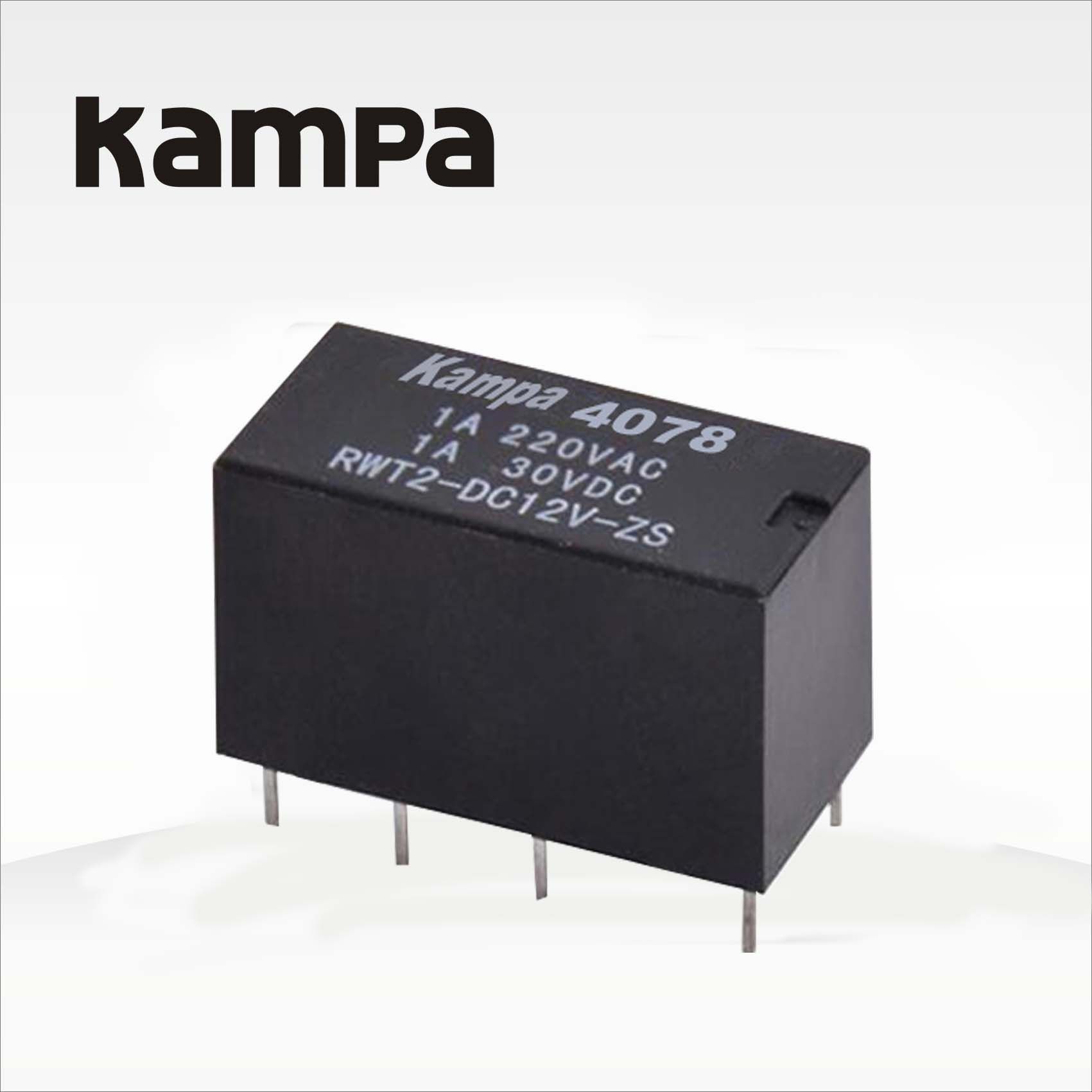

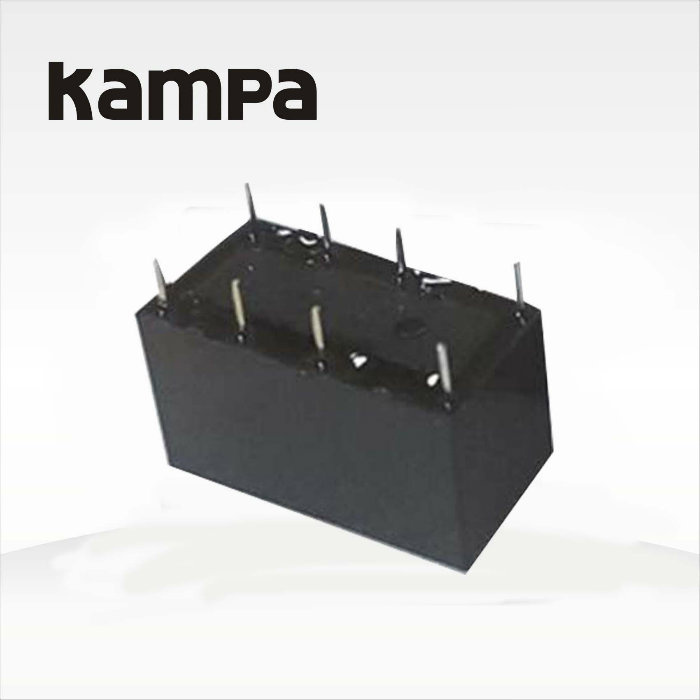

4078 8 Pins 1A 24V Mini Power PCB Electronic Relay

Name: 4078 8 Pins 1A 24V Mini Power PCB Electronic Relay
Brand: all-electronics-online.com
SKU: 818303025
Availability: InStock
Rating: 4.5 (119 reviews)

Price:	US $ 0.158/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	4078
Contact Type:	2z
Contact Overload:	1A,120VAC,24VDC
Rated Coil Power:	0.36W(0.54W)
Coil Specification:	DC3~48V

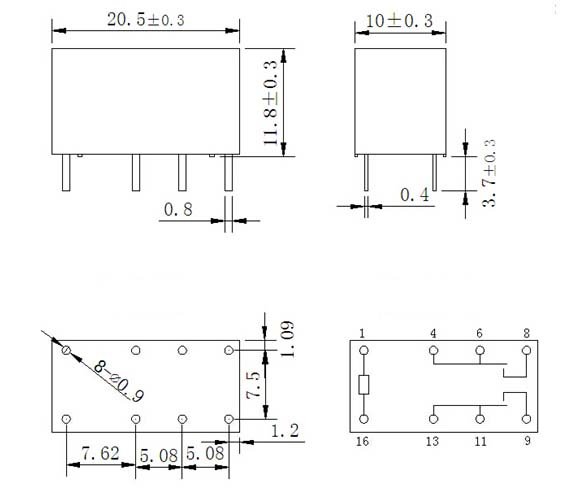

Dimension:	21X10X12mm

Product Description

Contact Rating
Nominal load(resistance load cosø=1
Contact capacity:1A 125VAC 1A 30VAC
Max allowable current:1A
Max allowable voltage:AC125V.DC30V
Max allowable power force:125VA 30W
Contact material:Ag Alloy
Contact Form:SPDT
Performance (at initial Value)
Contact resistance:≤100mΩ at 6VDC/1A
Operate time :10ms MAX
Release time:5ms.Max
Dielectric Strength:
Between coil&contact:1000VAC at 50/60HZ for one minute
Between contact"750VAC at 50/60HZ for one minute
Surge Resistance:10.000v(between coil &contact 1.2x50us)
Insulation resistance:500MegaΩ Min at 500VDC
Max on/off switchhing:Electrical:30 Ops per minute Mechanical:300 Ops per minute
Tempereture range:-30~70ºC
Humidity range:5%~85%RH

Coil sensitivity	Nominal voltage(VDC)	Nominal current(mA(	Coil resistance(Ω±8%)	Power consumption(w)	Pull-in voltage(VDC)	Drop-out voltage(VDC)	Maxmum Allowable Voltage(VDC)
4078	3	66.7	45	Abt.0.2	75% Maximum	10% Minimum	130%
	5	40	125
	6	33.7	180
	9	22.2	405
	12	16.7	720
	24	8.3	2880
