40A DC immune Current Transformer  ZMDCT05

1.Specification

CharacteristicsValues
Operating frequency50 Hz ~ 400 Hz
Operating temperature-40ºC ~ 85ºC
Relative humidity≤95%
Rated primary current  Ip40A
Maximum primary operating current Imax48A
Testing current for DC component 40A/Root 2<3%
Rated second current16mA
Transformation ratio1:2500
User supplied burden resistor10Ω
Accurate operating current range1.66%Ip~Imax
INPUT: 2.5A R:100Ω, f: 60HZOUTPUT: 99.5~100mV
Power frequency withstand voltage3Kv/1min
Insulation resistance>500MΩ/500Vdc
Interturn insulation40A/1min
Accuracy class0.2class

Accuracy classWith the percentage(%)of Ip
1.66520100120
Ratio Error (±%)0.20.20.20.20.2
Phase Displacement(±·)1212121212


2.Structure and Size

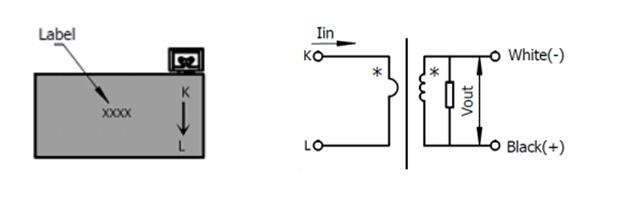

Current direction:

Primary current is from K to L, secondary current is from Black line to White line.

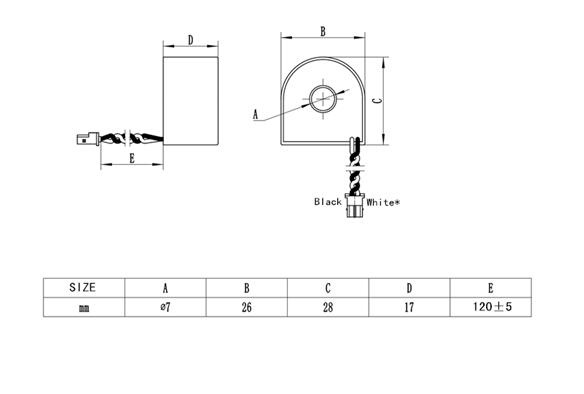

3.Dimension


4.Material List
No.MaterialSpec. modelUL codeManufacturer
1Inner coreNano-crystalline  core/ZEMING
2Outer coreAmorphous core/ZEMING
3Core shellPBTE238981QINGDAO QINKE ENGINEERING PLASTICS
4Winding2500TE258243ELEKTRISOLA HANGZHOU CO LTD
5Outside shellBlackE238981QINGDAO QINKE ENGINEERING PLASTICS
6Epoxy resinTXH-9201-10 epoxy resin insulating compoundE196959TIANJIN XINQIAO INSULATING MATERIAL CO
7Leading wireUL1007, 26AWG,
Black&White
E315651ZHEJIANG CHENGBAO WIRE & CABLE
9ConnectorMolex 5264-2P/Shenzhen Pinshang Electronic
10TapeFlame retardant,
Environmental protection
E165111JINGJIANG YAHUA PRESSURE SENSITIVE
GLUE CO LTD
